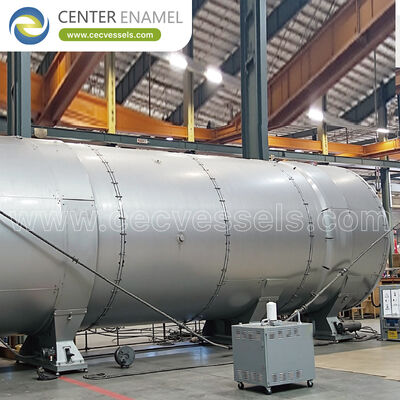

High Temperature Chemical Reactor: Materials, Heating, and Design Considerations

A high temperature chemical reactor is a vessel designed to run a reaction where heat, not just pressure, dominates the design. Above roughly 300 to 400 C, ordinary stainless loses strength and creep becomes the governing limit, so material grade, heating method, and thermal-stress control decide whether the reactor survives. This article covers the materials, heating strategies, and design factors that define high-temperature reactor engineering.

What Counts as High Temperature

There is no single threshold, but reactions above about 300 to 400 C are where conventional designs need special attention. Petrochemical, syngas, and advanced-materials processes routinely run 400 to 1000 C, and the reactor must hold shape, seal, and resist degradation across that range.

• Creep limit: Sustained high temperature causes slow plastic deformation under load.
• Strength falloff: Allowable stress drops sharply with temperature for most steels.
• Oxidation: Scaling and embrittlement accelerate above certain temperatures.

Material Selection

Metals for High Temperature

Above 600 C, carbon and low-alloy steels are out; austenitic stainless, nickel alloys, and specialty grades take over, each with a defined maximum service temperature.

• 310S / 253MA: Austenitic grades for oxidation resistance to about 1000 C in some atmospheres.
• Incoloy / Hastelloy: Nickel alloys for strength and corrosion at elevated temperature.
• Specialty alloys: For the most severe oxidizing or carburizing environments.

Refractory and Linings

For very high temperatures or corrosive gases, a refractory or ceramic lining protects the pressure boundary, letting a cooler shell carry the pressure.

• Hot-face lining: Absorbs the thermal load; the shell stays near design temperature.
• Trade-off: Adds weight and complicates inspection, but enables extreme duty.

Heating Methods

• External heaters: Electric or gas-fired bands or furnaces around the shell, simple but uneven.
• Half-pipe jacket: Hot oil or steam in external half-pipe coils for more uniform heating.
• Internal coils or immersion: Direct heat transfer inside, with material compatibility constraints.
• Molten salt or heat-transfer fluid: For large, uniform duty at moderate high temperature.

Thermal Stress and Fatigue

Heating and cooling create gradients that bend and crack components. High temperature reactors are designed so gradients stay within limits through geometry, controlled ramp rates, and FEA of transitions.

• Ramp control: Limits the gradient between hot and cold zones.
• Flexible details: Expansion joints or compliant supports absorb growth.
• Fatigue check: Cyclic thermal duty is assessed against code rules.

Sealing and Instrumentation

• High-temp gaskets: Graphite or spiral-wound rated for the temperature and fluid.
• Thermal wells: Instrument protection so sensors survive the environment.
• Expansion planning: Nozzles and connections designed for growth.

Applications

High temperature reactors appear in steam reforming, partial oxidation, calcination, advanced polymer and carbon processes, and catalytic cracking auxiliaries, wherever the reaction simply will not proceed at lower temperature.

High Temperature Reactor Heating Methods

Above 300 to 400 C, a chemical reactor is a thermal machine first and a pressure vessel second. Material grade sets the ceiling, the heating method sets the uniformity, and thermal-stress control sets the life. Specify the peak temperature and the heating profile honestly, and the design will follow; underestimate either, and the reactor will tell you first through a leak.

Frequently Asked Questions (FAQ)

What temperature is considered high for a chemical reactor?

Roughly above 300 to 400 C, where creep and strength loss force special materials and design. Many industrial high-temperature reactors run 400 to 1000 C, and the exact threshold depends on the material and the process.

What materials are used for high temperature reactors?

Above about 600 C, austenitic stainless such as 310S, then nickel alloys like Incoloy or Hastelloy, and for extreme duty refractory or ceramic linings protecting a cooler shell. The choice follows the service temperature and the gas atmosphere.

How are high temperature reactors heated?

By external electric or gas-fired heaters, half-pipe hot-oil jackets, internal coils, or molten-salt systems, depending on temperature and uniformity needs. Very high temperatures use refractory-lined shells with external furnaces.

Why does thermal stress matter more at high temperature?

Heating and cooling create temperature gradients that produce stress and, over cycles, fatigue cracking. At high temperature materials are also weaker, so the same gradient causes more damage. Ramp control and FEA of transitions manage it.

Can a high temperature reactor also be high pressure?

Yes, and that combination is common in reforming and high-pressure synthesis. It is the most demanding case, requiring both creep-resistant alloy and code pressure design, with thermal and pressure loads analyzed together.

How is a high temperature reactor sealed?

With gaskets rated for the temperature and fluid, typically graphite or spiral-wound, and with instrument thermal wells so sensors survive. Nozzles and connections are designed for thermal growth to avoid leaks at the joints.

What fails first in a high temperature reactor?

Usually the thermal-detail weak points: nozzle transitions, seals, or refractory linings, before the shell itself. Creep and oxidation also accumulate over time, so inspection focuses on those high-gradient and high-temperature zones.
