Custom Designed Reactor: Process, Deliverables, and How to Specify One

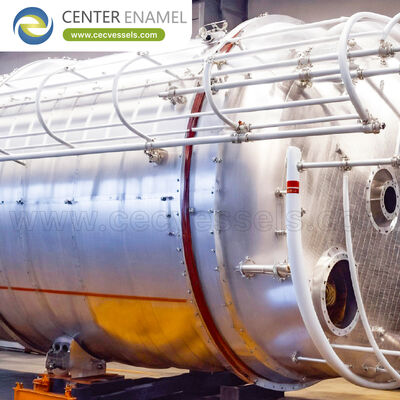

A custom designed reactor is a vessel engineered from your specific process duty rather than selected from a catalog. Catalog units suit standard, low-risk service; everything else, from an agitated hydrogenation vessel to a high-pressure synthesis autoclave, is custom by necessity. The value of custom design is fit: the reactor matches your chemistry, footprint, and code exactly. This article outlines the process, the data you must supply, and the deliverables you should expect.

When a Reactor Must Be Custom Designed

• Unique chemistry: No off-the-shelf unit runs your exact reaction safely.
• Specific duty: Pressure, temperature, or corrosion outside standard ranges.
• Footprint or integration: Must fit a plant layout or connect to existing systems.
• Code and certification: ASME, PED/CE, or client spec not met by standard products.

The Data Pack You Must Provide

Custom design starts with a complete process specification. The more precise the input, the fewer the change orders and the safer the result.

• Process and fluid: Phases, composition, corrosivity, and hazards.
• Operating envelope: MAWP, design temperature range, capacity, and cycles.
• Performance target: Conversion, residence time, and heat duty.
• Mechanical constraints: Nozzle schedule, supports, and site limits.

The Custom Design Workflow

Process and Mechanical Design

The engineer sizes the reactor for the reaction (volume, mixing, heat transfer) and then designs the pressure envelope to code, including nozzles, supports, and reinforcements.

• Reaction sizing: Based on kinetics and residence time.
• Code calculation: Wall thickness, openings, and supports to ASME or PED.

Analysis and Detailing

Local stresses at nozzles and supports are checked, often with FEA; drawings and the bill of materials are produced; welding and NDE plans are set.

• FEA where needed: Nozzle, saddle, and thermal hot spots.
• ITP definition: Hold and witness points agreed with the client.

Fabrication, Test, and Handover

The vessel is built, inspected, tested hydrostatically, and delivered with the full Manufacturer's Data Report and supporting records.

• NDE and test: Per the ITP and code.
• MDR package: Calculations, drawings, and records for your file.

Deliverables to Expect

Managing the Custom Workflow

• Single point of accountability: One engineer owns design and response.
• Stage gates: Review calculations and drawings before fabrication.
• Change control: Any change is re-approved and re-documented.

Common Pitfalls

Custom projects fail on vague specs and late changes. A precise duty specification and disciplined stage gates prevent most problems.

• Vague duty: Produces wrong sizing and rework.
• Late changes: Force re-design and delay.
• Undocumented deviations: Complicate future inspection.

Custom Reactor Deliverables

A custom designed reactor is the right answer whenever the duty is specific, which is most industrial chemistry. Success comes from a precise data pack, a capable engineer who owns the design, and stage gates that review the work before steel is cut. Supply those, and custom design delivers a vessel that fits the process exactly and runs safely for its life.

Frequently Asked Questions (FAQ)

What is a custom designed reactor?

It is a reactor engineered from your specific process duty rather than selected from a catalog. The vessel is sized and detailed for your chemistry, operating envelope, footprint, and code, so it fits the application exactly.

When do I need a custom designed reactor instead of a standard one?

When the chemistry, pressure, temperature, corrosion, footprint, or code falls outside standard ranges, or when no catalog unit safely runs your reaction. Most reactors for real industrial processes are custom to some degree.

What information does a manufacturer need to custom design a reactor?

A process specification covering fluid and phase, corrosivity and hazards, MAWP and design temperature range, capacity and cycle life, performance targets (conversion, residence time, heat duty), and mechanical constraints such as nozzles and supports.

What deliverables come with a custom reactor?

Design calculations proving code compliance, general-arrangement and detail drawings, an Inspection and Test Plan, and the Manufacturer's Data Report with NDE and test records. These form the vessel's compliance file for its lifetime.

How long does a custom reactor design and build take?

Design is typically a few weeks to a couple of months depending on complexity, with fabrication adding 8 to 20 weeks. Exotic materials, FEA, and extensive NDE extend both phases; stage gates keep the schedule predictable.

How can I avoid problems in a custom reactor project?

Provide a precise duty specification, assign a single accountable engineer, and hold stage-gate reviews of calculations and drawings before fabrication. Avoid late changes and undocumented deviations, which cause rework and delay.

Is a custom designed reactor more expensive?

Usually more than a catalog unit, because engineering and bespoke fabrication cost more. The offset is a vessel that fits the process, avoids compromise, and reduces lifecycle risk, which often lowers total cost of ownership.
