What Is a shell-and-tube heat exchanger? A Technical Overview
shell-and-tube heat exchanger design
,industrial heat exchanger components
,heat exchanger technical specifications

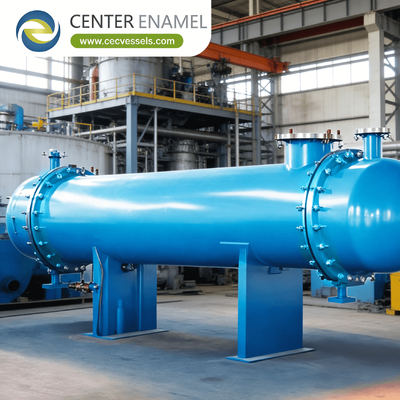

A shell and tube heat exchanger is a pressure vessel containing a bundle of tubes. One fluid flows through the tubes (tube-side), while a second fluid flows around the tubes within the shell (shell-side). The tube walls serve as the heat transfer surface, allowing thermal energy to pass between the two fluids without them ever mixing. They are the industry standard for high-pressure, high-temperature, and heavy-duty industrial applications.
The mechanism relies on convection and conduction.
-
Flow Separation: The fluids remain physically separated by the tube wall.
-
Thermal Exchange: Heat moves from the hotter fluid to the cooler fluid via the tube wall.
-
Turbulence Enhancement: Inside the shell, metal baffles force the shell-side fluid to flow across the tubes in a zig-zag pattern. This increases turbulence, which significantly improves heat transfer rates compared to laminar flow.
-
Flow Arrangements:
-
Co-current: Fluids enter at the same end and flow in the same direction.
-
Counter-current: Fluids flow in opposite directions, generally achieving higher thermal efficiency.
-
Understanding these components is essential for selecting or maintaining a unit:
-
Tube Bundle: The core component consisting of straight or U-shaped tubes.
-
Shell: The cylindrical outer casing containing the shell-side fluid.
-
Tubesheet: A plate that secures the tubes in place and separates the tube-side and shell-side fluids.
-
Baffles: Internal plates that support the tubes, prevent vibration, and direct fluid flow to maximize heat transfer.
-
Headers (Front & Rear): Chambers at the ends that direct the tube-side fluid into and out of the bundle.
The TEMA (Tubular Exchanger Manufacturers Association) and ASME codes define the primary mechanical configurations:
| Design Type | Key Feature | Best Use Case |
|---|---|---|
| Fixed Tubesheet | Tubesheets are permanently welded to the shell. | Low-to-moderate temperature differentials; low cost. |
| U-Tube | Tubes are bent into a "U" and fixed to one tubesheet. | High thermal expansion applications; removable bundle. |
| Floating Head | One tubesheet is fixed, one moves (floats). | High-temperature/pressure differentials; allows full removal for cleaning. |
-
Robustness: Capable of withstanding extreme pressures (> 300bar) and temperatures (> 400 °C).
-
Versatility: Works with liquids, gases, and phase-changing media (condensation/evaporation).
-
Maintainability: U-tube and floating head designs allow for internal inspection and mechanical cleaning.
-
Reliability: Decades of standardized engineering (TEMA/ASME) make them predictable and safe.
-
Footprint: Significantly larger and heavier than plate heat exchangers.
-
Fouling: Susceptible to scaling; requires careful maintenance of baffle/tube geometry.
-
Efficiency: Generally lower heat transfer efficiency per unit volume compared to plate designs.
Q: Are shell and tube exchangers compliant with ASME codes?
A: Yes. The design and fabrication of these units are governed by the ASME Boiler and Pressure Vessel Code (Section VIII) and TEMA standards to ensure structural integrity in industrial environments.
Q: When should I choose shell and tube over a plate heat exchanger?
A: Choose shell and tube when your process involves very high pressures, high temperatures, hazardous fluids that require robust containment, or high fouling conditions that make thin plate channels prone to clogging.
Q: What is the purpose of baffles in the shell?
A: Baffles serve two purposes: they act as a support structure to prevent tubes from sagging or vibrating (which causes fatigue leaks), and they increase turbulence, forcing the shell-side fluid to swirl across the tubes to maximize heat extraction.
