Heat Exchangers in Pharmaceutical Manufacturing: A 2026 Technical Overview
In the pharmaceutical industry, heat exchangers are not merely utility components; they are critical process instruments that directly impact product quality, safety, and regulatory compliance. Their primary roles include precise thermal regulation during Active Pharmaceutical Ingredient (API) synthesis, the maintenance of sterile conditions in Water for Injection (WFI) production, and temperature stabilization during fermentation of biologics. All equipment must conform to ASME BPE (Bioprocessing Equipment) standards, requiring specific surface finishes ($Ra le 0.4 mutext{m}$), drainable geometries, and the absolute elimination of dead zones to prevent contamination.
1. Core Applications in Pharmaceutical Production
Heat exchangers are integrated into almost every stage of the pharmaceutical lifecycle. The design selection depends on the process fluid's characteristics (viscosity, particle content, and sensitivity).
A. Water for Injection (WFI) & Purified Water
Function: Generating, storing, and distributing high-purity water.
Thermal Challenge: Maintaining water temperatures (typically $ge 80^circtext{C}$ for loop distribution) to prevent microbial proliferation.

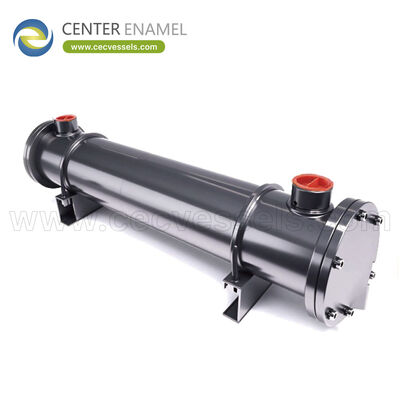

Design Requirement: Must utilize Double Tube Sheet (DTS) shell-and-tube exchangers to ensure an absolute physical barrier between the WFI and the utility heating medium (e.g., plant steam).
B. API Synthesis & Reaction Control
Function: Managing exothermic or endothermic chemical reactions.
Thermal Challenge: Preventing thermal runaway in reactors or ensuring cooling ramps that define crystal size and purity.
Design Requirement: Precise, rapid temperature response. Exchangers must be capable of handling high-viscosity or corrosive solvents often found in API synthesis.
C. Fermentation & Bioprocessing
Function: Regulating biological growth environments.
Thermal Challenge: Microorganisms generate metabolic heat. If not removed, the temperature spike can destroy proteins and cell cultures.
Design Requirement: Gentle flow dynamics to avoid shear stress on fragile biological cells while maintaining exact temperature setpoints.
2. Technical Standards: The ASME BPE Requirement
Pharmaceutical heat exchangers are strictly regulated by the ASME BPE (Bioprocessing Equipment) standard. When a supplier claims compliance, they are committing to specific, auditable engineering benchmarks.
| Feature | Requirement | Why it Matters |
|---|---|---|
| Surface Finish | 0.4um | Mirror-smooth finish prevents biofilm attachment. |
| Weld Type | Full-penetration orbital welding | Eliminates crevices where bacteria can harbor. |
| Drainability | Slope 1/48 (or equivalent) | Ensures no stagnant "dead legs" during CIP/SIP. |
| Materials | 316L Stainless Steel (or higher) | Superior corrosion resistance to chlorides and CIP agents. |
3. CIP (Clean-in-Place) and SIP (Sterilize-in-Place)
Pharmaceutical exchangers must be compatible with automated cleaning cycles.
Cleanability: The internal geometry must be designed to achieve high turbulence ( > 10,000) to mechanically shear away residue.
Dead Leg Elimination: Regulations (such as the 1.5D or 2D rule) dictate that any branch or stagnant area in the heat exchanger must be short enough to be cleaned by the main flow, preventing "hidden" contamination.
4. Frequently Asked Questions (FAQ)
Q: Why is "Double Tube Sheet" (DTS) design preferred for sterile applications?
A: In WFI and sterile applications, the utility medium (e.g., plant steam or cooling water) is not sterile. The DTS design features an air gap between two tube sheets. If a tube-to-sheet weld fails, the leaking fluid is directed into the atmosphere rather than crossing into the process stream, preventing batch contamination.
Q: Can plate heat exchangers be used in pharmaceutical manufacturing?
A: Yes, but only if they are "sanitary" or "hygienic" designs. Standard industrial plate exchangers have crevices in the gasket area that are impossible to sterilize. Pharmaceutical-grade plate exchangers use specialized gasket designs or fully welded architectures to ensure CIP/SIP compliance.
Q: How does material selection impact API synthesis?
A: APIs often involve aggressive acidic or basic catalysts. While 316L stainless is the standard, specialized applications may require Titanium or Silicon Carbide (SiC) to prevent metallic ion leaching, which could invalidate chemical purity requirements and regulatory drug dossiers.
