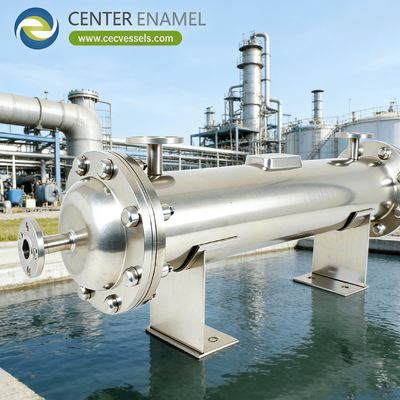

How Does a Heat Exchanger Work?

At its core, a heat exchanger works by transferring thermal energy (heat) from a hot fluid to a cold fluid without allowing the two fluids to physically mix.

Think of how a car radiator works: the engine pumps hot coolant into the radiator, and outside air blows across the radiator's metal fins. The heat moves from the liquid, through the metal, and into the air. The engine cools down, and the air warms up—yet the air and the coolant never touch.

Heat exchangers operate entirely on the fundamental laws of thermodynamics.

1. Heat Always Seeks Equilibrium: Heat naturally flows from a high-temperature source to a low-temperature sink. It will never flow the other way unless forced (which requires a compressor, like in a refrigerator).

2. Convection & Conduction: The heat transfer happens in three distinct steps:

   • Convection: Heat moves from the bulk hot fluid to the inner wall of the metal barrier.

   • Conduction: Heat travels through the solid metal wall.

   • Convection: Heat moves from the outer wall of the metal barrier into the bulk cold fluid.

To calculate exactly how a heat exchanger works and how big it needs to be, engineers use two primary formulas.

First, to determine the Heat Duty (the total amount of energy being moved), we look at the fluid properties:

How you route the fluids through the machine drastically changes how well it works. There are two primary ways to direct the flow:

Both the hot and cold fluids enter at the same end and travel in the same direction.

• The Result: The temperature difference is massive at the inlet, but as they travel, they approach a shared equilibrium temperature. The cold fluid can never leave the exchanger hotter than the hot fluid leaves it.

The hot fluid enters at one end, and the cold fluid enters at the opposite end, flowing past each other in opposite directions.

• The Result: This is the most efficient design. Because the cold fluid is always meeting hotter fluid as it travels, the cold fluid can actually exit the heat exchanger at a higher temperature than the hot fluid's exit temperature.

Use the interactive simulator below to see exactly how these two flow configurations change the temperature profile inside the machine.

Engineers manipulate these thermodynamic principles into different physical shapes to suit different industrial needs:

Q: Does the size of the heat exchanger matter?

A: Absolutely. According to the formula $Q = U A Delta T_{lm}$, the total heat transferred ($Q$) is directly proportional to the area ($A$). A larger heat exchanger has more metal surface area, allowing more heat to pass through in a given amount of time.

Q: What causes a heat exchanger to stop working effectively?

A: The most common issue is fouling. Over time, minerals from water (like calcium scale), rust, or biological sludge coat the metal walls. This acts as insulation, drastically lowering the heat transfer coefficient ($U$) and forcing the system to work harder to achieve the same temperatures.

Q: Can heat exchangers be used for cooling?

A: Yes. The term "heat exchanger" refers to the transfer of heat, regardless of the desired outcome. If your goal is to cool a hot engine, the heat exchanger (radiator) is removing heat. If your goal is to boil water, the heat exchanger (boiler) is adding heat. The physics are identical.
