What is a Shell & Tube Heat Exchanger?

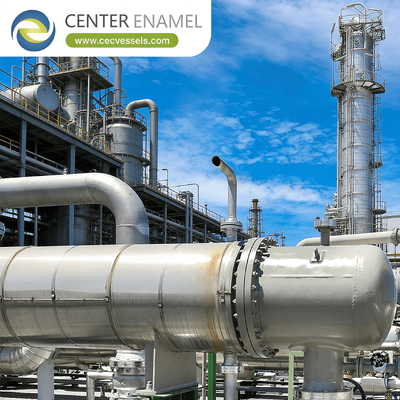

A shell and tube heat exchanger is a class of industrial pressure vessel designed to transfer thermal energy between two fluids without allowing them to mix. It is the most common type of heat exchanger used in oil refineries, large chemical processes, and power generation facilities due to its robust design and ability to handle extreme pressures and temperatures.

The fundamental design is exactly as the name implies: a large outer pressure vessel (the shell) contains a bundle of smaller pipes (the tubes). One fluid flows through the inside of the tubes, while the second fluid flows over the outside of the tubes within the shell, transferring heat through the thermally conductive tube walls.

1. Anatomy of the Exchanger

A shell and tube heat exchanger is highly customizable, but all designs rely on four critical mechanical components:

• The Tube Bundle: The core heat transfer surface. Tubes are usually made of highly conductive, corrosion-resistant metals (like titanium, copper alloys, or stainless steel).

• The Shell: The outer cylinder that contains the second fluid. It is designed to withstand the system's internal pressure and is often insulated to prevent thermal loss to the environment.

• Tube Sheets: Thick metal plates drilled with holes to accept the tubes. The tubes are expanded or welded into these sheets to create a leak-proof seal that separates the shell-side fluid from the tube-side fluid.

• Baffles: Internal plates installed inside the shell. They serve two vital purposes: supporting the long tubes to prevent vibration, and forcing the shell-side fluid to flow in a zigzag pattern across the tube bundle, which creates turbulence and maximizes heat transfer.

2. The Thermodynamics: Heat Transfer & LMTD

The sizing and efficiency of a shell and tube heat exchanger are governed by the fundamental heat transfer equation:

Understanding LMTD

Because the temperatures of both fluids change as they flow through the exchanger, the temperature difference between them is not constant. Engineers use the Log Mean Temperature Difference (LMTD) to calculate the true average driving force for heat transfer.

Interactive LMTD & Surface Area Calculator

To understand how fluid temperatures dictate the physical size of the heat exchanger, use the simulator below. Adjust the inlet and outlet temperatures of your hot and cold streams, along with your target heat load, to calculate the LMTD and the required surface area ($A$).

3. Flow Configurations: Why "Multi-Pass"?

While the widget above assumes a single pass, industrial shell and tube heat exchangers are rarely that simple. They are categorized by the number of times the fluid passes through the length of the exchanger.

• 1-1 Exchanger (Single Pass): The fluid goes in one end of the tubes and out the other. The shell fluid does the same.

• 1-2 Exchanger (Two-Pass Tube): The tube fluid enters, travels down half the tubes, hits a U-bend (or return header), and travels back down the other half of the tubes. This doubles the fluid velocity and increases the heat transfer coefficient ($U$), though it requires more pumping power.

• Multipass (e.g., 2-4 Exchangers): Used for massive industrial duties to maximize turbulence and thermal efficiency within a smaller physical footprint.

4. Shell & Tube vs. Plate Heat Exchangers

When specifying equipment, the primary alternative to a shell & tube design is a Plate Heat Exchanger (PHE).

5. Frequently Asked Questions (FAQ)

What is TEMA?

TEMA stands for the Tubular Exchanger Manufacturers Association. It is the global standard that dictates the mechanical design, tolerances, and nomenclature (e.g., BEM, AEL, NEN types) of shell and tube heat exchangers.

What is "Fouling" in a heat exchanger?

Fouling is the accumulation of dirt, scale, or biological growth on the heat transfer surfaces. Because the shell side of a shell and tube exchanger is very difficult to clean mechanically, engineers always route the "dirtiest" or most corrosive fluid through the inside of the tubes, which can be cleaned with high-pressure water lances.

Why are baffles cut at an angle?

Baffles are not solid discs; they usually have a 20% to 30% "cut" (like a half-moon). This forces the shell-side fluid to flow vertically up and down across the tube bundle, minimizing stagnant "dead zones" and maximizing the turbulent mixing required for optimal heat transfer.
