Pressure Resistant Reactor: Design Principles for High-Pressure Duty

Pressure Resistant Reactor: Design Principles for High-Pressure Duty

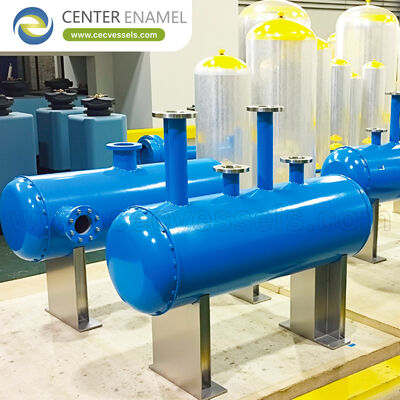

A pressure resistant reactor is a vessel engineered primarily to contain a reaction safely while the contents are at high pressure. Pressure resistance is not a single rating but the result of correct wall thickness, a capable closure, a material that keeps its strength under load, and a testing regime that proves the design. This article explains the principles that make a reactor pressure resistant and how buyers should specify and verify them.

What Pressure Resistance Depends On

• Design pressure and MAWP: The maximum allowable working pressure sets the wall thickness through code formulas.
• Material strength: Allowable stress at operating temperature governs how thin the wall can be.
• Geometry: Cylindrical shells, heads, and nozzles each have their own stress state.
• Temperature: Strength falls with temperature, so the hot-case rating is the binding one.

Wall Thickness and Stress

Pressure generates hoop stress around the shell and longitudinal stress along it. Code formulas size the wall so these stay below the material's allowable stress with a margin, plus corrosion allowance. As pressure rises, wall thickness grows quickly, and very high pressure may need forged or layered construction.

• Hoop vs longitudinal: Hoop stress is roughly double, so it usually controls shell thickness.
• Corrosion allowance: Added to the calculated thickness, not included in strength.
• Thick-wall effects: Above certain ratios, simple thin-wall formulas no longer apply.

Closures and Seals

Closure Types

The closure must hold pressure as well as the shell. Options range from bolted flanged heads to welded caps to quick-opening doors with interlocks for safe operation.

• Bolted flange: Common, inspectable, but flange faces add weight and cost.
• Welded cap: Cheapest for permanent closure; requires cutting to open.
• Quick-opening: For batch access, with pressure-interlock safety.

Sealing

Gaskets and metal seals must seat under pressure and temperature without leaking. The seal design is matched to the fluid and the pressure class.

• Gasket rating: Must exceed the design pressure and temperature.
• Metal-to-metal: Used at extreme pressure where soft gaskets fail.

Materials for Pressure Resistance

• Carbon and low-alloy steel: Workhorses for moderate temperature and pressure.
• Stainless and duplex: Add corrosion resistance with good strength.
• Nickel alloys: For aggressive chemistry at pressure.
• Forged construction: Used where integrally strong, leak-tight parts are needed.

Testing and Verification

Specifying a Pressure Resistant Reactor

Define the MAWP, the operating temperature range, the corrodent, and the number of pressure cycles. Cycles matter because fatigue, not just static strength, can govern a pressure resistant design.

• State the cycle count: Fatigue analysis follows the duty.
• Match the closure: Access needs vs pressure class.
• Verify the stamp: ASME U or U2, or PED/CE as required.

Pressure Resistant Reactor Verification Tests

Pressure resistance is engineered, not claimed. It comes from a wall thick enough for the stress, a closure and seal rated for the duty, a material that holds strength at temperature, and a hydrostatic test that proves the math. Specify the MAWP, temperature, corrodent, and cycle life honestly, and the reactor you receive will contain the reaction safely for its design life.

Frequently Asked Questions (FAQ)

What makes a reactor pressure resistant?

Correct wall thickness from code stress formulas, a closure and seal rated for the duty, a material that retains strength at operating temperature, and a hydrostatic test that verifies the design. It is the combination, not any single feature, that makes a vessel pressure resistant.

How is wall thickness for a pressure resistant reactor calculated?

Using code formulas that keep hoop and longitudinal stress below the material's allowable stress at temperature, plus a corrosion allowance. Pressure, diameter, and allowable stress set the thickness; as pressure rises, thickness grows rapidly and may require forged or layered construction.

What closure is used on a high pressure reactor?

It depends on access needs. Bolted flanges are common and inspectable; welded caps are cheapest for permanent closure; quick-opening doors with pressure interlocks suit batch processes needing frequent access. The seal is matched to pressure and fluid.

Can a pressure resistant reactor also handle corrosive chemicals?

Yes, by selecting a corrosion-resistant grade or lining while keeping the required strength. Stainless, duplex, or nickel alloys add resistance; for extreme cases a strong carbon-steel shell may be clad or lined so pressure resistance and corrosion resistance are solved separately.

How is a pressure resistant reactor tested?

Primarily by a hydrostatic test at about 1.3 times MAWP, supported by NDE of welds during fabrication and, where needed, pneumatic leak testing. Quick-opening closures also get proof and cycle testing of the seal and interlock.

Does higher pressure mean a much thicker wall?

Yes. Wall thickness scales with pressure and diameter, so doubling pressure roughly doubles the required thickness (ignoring other limits). At very high pressure, that drives the choice toward forged or layered construction rather than rolled plate.

What is MAWP and why does it matter?

MAWP is the maximum allowable working pressure at a given temperature, the highest pressure the vessel is certified to contain safely. It is the binding limit for operation and the basis for wall thickness, testing, and the nameplate.
