What Is a Filtration Pressure Vessel? Design, Principles & Applications

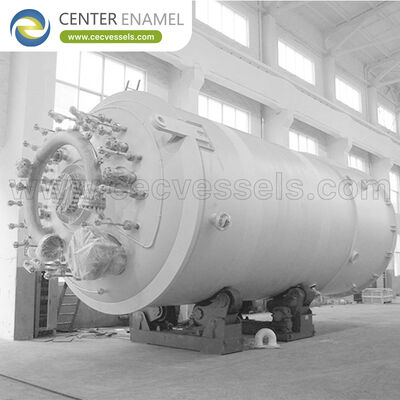

Answering the core question: What is a filtration pressure vessel, and how does it separate solids from process fluids under elevated pressure? A filtration pressure vessel is an ASME-coded pressure-rated tank that forces liquid or gas through a porous filter medium—cartridge, bag, or multi-media bed—to capture suspended solids while allowing the clarified filtrate to pass. Operating at design pressures from 0.1 to 10 MPa, these vessels use differential pressure as the driving force, achieving particle retention ratings from 0.1 µm to 500 µm across chemical, petrochemical, and water treatment applications.

1. Core Operating Principles of Filtration Pressure Vessels

The separation performance of a filtration pressure vessel depends on three interlinked physical mechanisms that govern how solids are captured and how the vessel maintains consistent throughput over extended operating cycles.

• **Differential Pressure Driven Flow:** The vessel operates by maintaining a pressure differential between the inlet (upstream) and outlet (downstream) sides of the filter medium. According to Darcy's law, flow rate Q = (k·A·ΔP)/(μ·L), where k is permeability, A is filter area, ΔP is differential pressure, μ is fluid viscosity, and L is media thickness. Typical operating ΔP ranges from 0.05 MPa at clean condition to 0.35 MPa at terminal pressure, triggering the backwash or element replacement cycle.
• **Depth vs. Surface Filtration Mechanisms:** Surface filtration captures particles on the upstream face of the medium (cartridge or bag), forming a filter cake that itself enhances retention. Depth filtration traps particles within the tortuous path of a granular media bed (sand, anthracite, activated carbon), achieving multi-barrier removal. The *L/D (length-to-diameter) ratio* of depth media beds typically ranges from 1.5:1 to 3:1 to ensure adequate contact time.
• **Backwash and Regeneration Cycle:** When differential pressure reaches the terminal setpoint (commonly 0.30-0.35 MPa), the vessel enters a backwash sequence: forward flow is reversed, and filtered water or compressed air expands the media bed by 20-30%, dislodging captured solids. The backwash duration is typically 10-15 minutes at a flow rate 1.5-2 times the service flow, restoring 95-98% of original media permeability.

2. Major Types of Filtration Pressure Vessels

Industrial filtration pressure vessels are classified by the filter medium configuration, the number of stages, and the specific process duty they serve. Three primary configurations dominate the market:

• **Cartridge Filter Vessels:** These vertical or horizontal ASME vessels house one to dozens of replaceable pleated or wound cartridge elements (commonly 10-inch to 40-inch length, 2.5-inch OD). Rated for 0.1 µm to 100 µm particle retention, they serve as polishing filters downstream of primary separators. Multi-cartridge vessels with 7-21 elements handle flow rates from 50 to 2,000 m³/h, with 316L stainless steel housings standard for chemical service.
• **Multi-Media Pressure Filters:** Vertical ASME vessels filled with layered granular media—typically anthracite (0.8-1.2 mm), filter sand (0.4-0.8 mm), and support gravel—achieve depth filtration for TSS removal down to 5-10 mg/L. Vessel diameters range from 0.9 m to 4.3 m for flow rates of 20-500 m³/h per unit. These vessels operate at 0.3-0.6 MPa service pressure with surface loading rates of 10-25 m/h (gpm/ft² equivalent).
• **Bag Filter Housings:** Single- or multi-bag stainless steel pressure vessels accept sewn filter bags (size #1: 7"*16", #2: 7"*32") rated for 1-800 µm particle capture. Bag housings are preferred for high-solid-content applications where cartridge change frequency would be excessive. Typical design pressure is 1.0-1.6 MPa with flow rates of 20-900 m³/h for multi-bag configurations.

Filtration Pressure Vessel Types Comparison Matrix

Frequently Asked Questions (FAQ)

Q: What is the maximum design pressure for a filtration pressure vessel?

A: Filtration pressure vessels are typically designed to ASME Section VIII Division 1 standards for service pressures ranging from 0.1 to 10 MPa. The most common industrial units operate at 0.3-1.6 MPa, while high-pressure applications such as reverse osmosis pre-treatment may require 2.5-4.0 MPa rated vessels with flanged connections conforming to ASME B16.5 class 150# or 300#.

Q: How does a cartridge filter vessel differ from a multi-media filter?

A: A cartridge filter vessel uses replaceable pleated or wound elements for surface or near-surface filtration at 0.1-100 µm ratings, suited for polishing duty with low-TSS feed. A multi-media filter uses layered granular media for depth filtration, achieving bulk TSS removal to 5-10 mg/L, and is regenerated via backwash rather than element replacement. Multi-media vessels are larger and handle higher solids loading.

Q: What determines the backwash cycle frequency for a multi-media filter?

A: Backwash is triggered when differential pressure reaches 0.30-0.35 MPa (terminal head loss) or after a set time interval (typically 24-48 hours), whichever occurs first. The backwash flow rate must achieve 20-30% media bed expansion and run for 10-15 minutes to restore permeability. On-line turbidity monitors on the effluent provide a secondary trigger if breakthrough is detected.

Q: What materials of construction are used for corrosive chemical filtration?

A: For corrosive chemical service, filtration vessels are constructed from 316/316L stainless steel, duplex 2205, Hastelloy C-276, or titanium Gr.2 depending on the chloride concentration and temperature. PTFE-lined or glass-lined steel vessels are used for strong acid filtration. Internal components (cartridges, bags, support baskets) are available in polypropylene, PTFE, stainless steel, or cotton for chemical compatibility.
