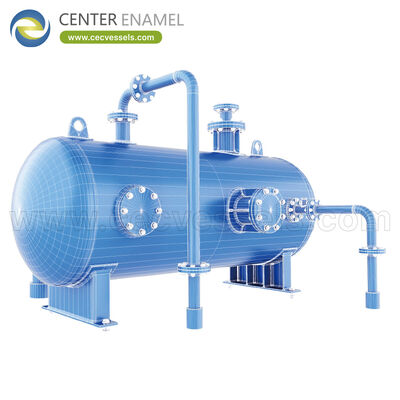

What Is a Residence Time Reactor? Principles, Design & Applications

Answering the core question: What is a residence time reactor, and how does residence time distribution (RTD) govern conversion, selectivity, and product quality in continuous chemical processes? A residence time reactor is a continuous-flow chemical vessel designed and analyzed through the lens of residence time distribution (RTD) theory, which quantifies the probability distribution of time that fluid elements spend inside the reactor. The space-time (tau = V / F, where V is reactor volume and F is volumetric flow rate) defines the nominal residence time, but the actual distribution E(t) determines real conversion. The Peclet number (Pe = uL / D_ax, where u is velocity, L is length, D_ax is axial dispersion coefficient) characterizes the degree of backmixing: Pe <1 (perfectly mixed CSTR), Pe = 1-20 (mixed), Pe >50 (plug flow approximation). The tanks-in-series model parameter N (N = 1 for CSTR, N > 10 for PFR approximation) provides an alternative RTD representation. Residence time reactors span space-times from seconds (microreactors, tau = 1-30 s) to hours (CSTR polymerization, tau = 60-300 min), and RTD analysis is critical for side-reaction suppression, molecular weight distribution control, and continuous crystallization quality.

1. Core Residence Time Principles and RTD Analysis

Residence time reactor analysis is built on three fundamental transport and probabilistic principles:

  • Residence Time Distribution (RTD) Function E(t) and Tracer Methods The RTD function E(t) is the exit-age distribution: the fraction of fluid leaving the reactor between time t and t+dt. It is measured by injecting a tracer pulse (Dirac delta input of KCl, dye, or radiolabeled compound) and monitoring exit concentration C(t). The normalized RTD is E(t) = C(t) / integral(0 to inf) C(t)dt. The mean residence time t_mean = integral(0 to inf) t x E(t) dt equals V/F (space-time) for constant-density systems. The variance sigma^2 = integral(0 to inf) (t - t_mean)^2 x E(t) dt quantifies the spread and indicates the degree of mixing: sigma^2 = 0 for ideal plug flow (PFR), sigma^2 = tau^2 for ideal CSTR.
  • Axial Dispersion and Peclet Number (Pe) The axial dispersion model treats deviation from plug flow as a Fickian diffusion-like process superimposed on convective transport: D_ax x d2C/dz2 - u x dC/dz = dC/dt, where D_ax is the axial dispersion coefficient. The dimensionless Peclet number Pe = uL / D_ax quantifies the ratio of convective to dispersive transport. Pe >50 means dispersion is negligible (plug flow regime); Pe = 1-20 means significant backmixing; Pe <1 means the reactor behaves as a single CSTR. For packed bed reactors, Pe = (u x D_p) / D_ax x (L/D_p) = 2-12 per particle diameter (typical value from Bereknoff-Baerns correlation).
  • Tanks-in-Series Model and N Parameter The tanks-in-series model represents the reactor as N equal-volume CSTRs in series, with N = sigma^2 / tau^2 (from variance analysis). N = 1 is a single CSTR (sigma^2 = tau^2); N > 10 approximates plug flow (sigma^2 -> 0). This model is particularly useful for scale-up because maintaining constant N across scales ensures kinematic similarity in terms of residence time behavior. For a reactor cascade with N = 3 CSTRs (each 100 L, total V = 300 L, F = 10 L/min, tau_total = 30 min), the conversion for a first-order reaction (k = 0.05 /min) is X = 1 - (1 + k x tau/N)^(-N) = 1 - (1.5)^(-3) = 1 - 0.296 = 70.4%.
2. Major Residence Time Reactor Types and RTD Characteristics

Industrial residence time reactors are characterized by their RTD shape and Pe/N values:

  • Plug Flow Reactor (PFR) - Narrow RTD In an ideal PFR, all fluid elements have identical residence time (tau = V/F, sigma^2 = 0). Real PFRs (tubular, packed-bed, microchannel) approach this with Pe >50 and N >10. RTD is a narrow Gaussian peak centered at tau. PFRs maximize conversion for positive-order reactions (less backmixing than CSTR) and are preferred for parallel-side-reaction selectivity where short contact time is desired. Typical: tubular reactors (L/D >50, Pe = 50-1000), packed-bed catalytic reactors (Pe = 10-100), microreactors (Pe = 50-500).
  • Continuous Stirred Tank Reactor (CSTR) - Broad RTD An ideal CSTR has an exponential RTD: E(t) = (1/tau) x exp(-t/tau), with sigma^2 = tau^2. The broad distribution means some fluid elements leave immediately (short-circuiting) and others remain far longer. CSTRs are preferred for: reactions where selectivity favors low reactant concentration (instant dilution on entry), temperature uniformity in exothermic reactions, and easy control of slow reactions. Cascades of 3-5 CSTRs narrow the RTD (N = 3-5) and approach PFR conversion for practical purposes. Typical: single CSTR (N = 1, Pe <1), cascade of 3-5 CSTRs (N = 3-5, sigma^2 = tau^2/N).
  • Laminar Flow Reactor and Non-Ideal RTD Systems In laminar flow (Re < 2100), the parabolic velocity profile creates a broad RTD: E(t) = tau^2 / (2 x t^3) for t > tau/2, meaning some elements travel twice as fast as the mean. This non-ideal behavior is corrected by static mixers, Taylor dispersion (radial diffusion in coiled tubes), or packed internals. Non-ideal RTDs from dead zones (stagnant regions) and bypassing (short-circuit channels) are diagnosed by tracer tests: dead volume appears as a reduced mean residence time (t_measured < V/F), while bypassing appears as an early peak in E(t).
Residence Time Reactor Types Comparison Matrix
Reactor Type RTD Shape & Variance Pe / N Values Typical Application
Plug Flow (PFR) Narrow Gaussian, sigma^2 -> 0 Pe >50; N >10; ideal: Pe = infinity Positive-order reactions, selectivity-sensitive, short contact time
CSTR (Single Tank) Exponential, sigma^2 = tau^2 Pe <1; N = 1; maximum backmixing Low-concentration selectivity, exothermic temperature control, easy control
CSTR Cascade Narrowing exponential, sigma^2 = tau^2/N Pe = 2N; N = 3-10; approaches PFR Multi-stage with interstage feeds/cooling, polymerization, crystallization
Laminar Flow Broad, non-symmetric, sigma^2 = tau^2/8 Re <2100; Pe depends on L/D and diffusion Polymerization in tubes, food/viscous processing; needs static mixers
Frequently Asked Questions (FAQ)

Q: What is the residence time distribution (RTD) and how is it measured in a reactor?

A: The RTD function E(t) is the exit-age probability distribution: the fraction of fluid leaving the reactor between time t and t+dt. It is measured by injecting a non-reactive tracer pulse (Dirac delta input) and monitoring exit concentration C(t) over time. E(t) = C(t) / integral(0 to inf) C(t) dt. The mean residence time t_mean = integral(0 to inf) t x E(t) dt should equal V/F for constant-density systems. The variance sigma^2 quantifies the spread: sigma^2 = 0 for ideal PFR (all elements same residence time), sigma^2 = tau^2 for ideal CSTR (broad exponential distribution). Step-input tests (sudden switch from tracer-free to tracer-laden feed) provide the cumulative RTD F(t), the complement of which identifies dead volume and bypassing.

Q: How does the Peclet number (Pe) relate to reactor backmixing and conversion?

A: Pe = uL / D_ax quantifies the ratio of convective to axial dispersive transport. Pe >50 means dispersion is negligible (near-plug flow, minimal backmixing). Pe = 1-20 means significant backmixing (non-ideal). Pe <1 means the reactor behaves as a single perfectly mixed CSTR. Higher Pe (more plug-flow-like) increases conversion for positive-order reactions (n > 0) because backmixing dilutes reactant concentration and reduces rate. For a first-order reaction in a tubular reactor with Pe = 50 and Da = 2, conversion is 86.5% (vs. 87.5% for ideal PFR, a 1% loss). At Pe = 5 (significant dispersion), conversion drops to 80%. For zero-order or autocatalytic reactions, more backmixing can be advantageous.

Q: What is the tanks-in-series model and how is the parameter N determined?

A: The tanks-in-series model represents the reactor as N equal-volume ideal CSTRs in series. The parameter N is determined from the measured RTD variance: N = tau^2 / sigma^2. N = 1 is a single CSTR; N > 10 approximates plug flow. The model is useful for scale-up because maintaining constant N ensures similar RTD behavior across scales. The conversion for a first-order reaction is X = 1 - (1 + k x tau_total / N)^(-N). For example, a 3-CSTR cascade with tau_total = 30 min and k = 0.05/min gives X = 1 - (1 + 0.05 x 10)^(-3) = 1 - 0.296 = 70.4%, compared to 77.7% for an ideal PFR with the same total tau.

Q: How do dead zones and bypassing affect residence time reactor performance?

A: Dead zones (stagnant regions) reduce the effective reactor volume, shortening the measured mean residence time below V/F (t_measured < tau_nominal). Bypassing (short-circuit channels) creates an early peak in E(t), meaning some fluid exits much faster than the nominal residence time. Both reduce conversion for positive-order reactions. A reactor with 20% dead volume has effective tau = 0.8 x V/F, reducing conversion proportionally. Bypassing is particularly damaging for selectivity because short-residence-time fluid sees incomplete conversion while long-residence-time fluid over-reacts to byproducts. Diagnostic tracer tests with step input reveal dead volume (reduced t_mean) and bypassing (early F(t) rise).
