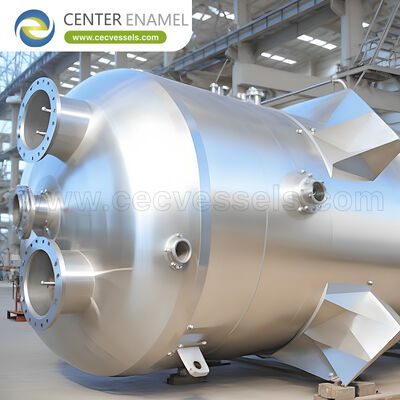

What Is a Stirred Tank Reactor? Principles, Design & Applications

Answering the core question: What is a stirred tank reactor, and why does this one geometry dominate chemical manufacturing? A stirred tank reactor (STR) is a vessel in which an impeller driven through the tank contents provides the mixing, suspension, and gas dispersion that reaction chemistry demands—the single most widely deployed reactor configuration in the chemical, pharmaceutical, food, and mineral processing industries. Its enduring dominance comes from unmatched versatility: by selecting impeller type, speed, and baffling, one vessel geometry can blend miscible liquids, suspend heavy solids, disperse gases, and transfer heat through jackets or coils—serving batch processes directly and, with continuous feed and withdrawal, operating as the continuous stirred-tank reactor (CSTR).

1. Core Operating Principles of Stirred Tank Reactors

STR performance is engineered through impeller hydrodynamics and power management:

· Impeller Flow Regimes: Radial-flow impellers such as the Rushton turbine (power number ≈ 5–6) discharge outward, creating intense shear ideal for gas dispersion; axial-flow pitched-blade and hydrofoil impellers pump vertically, blending liquids and suspending solids at far lower power per volume.

· Baffling and Vortex Suppression: Wall baffles break the rotational vortex that otherwise forms at moderate speeds, converting swirling motion into top-to-bottom circulation. Without baffles, a large fraction of impeller power is wasted spinning the liquid mass rather than mixing it.

· Power Draw and Mixing Time Scale-Up: Impeller power follows the correlation P = Np·ρ·N³·D⁵, letting engineers compute power draw from the dimensionless power number; mixing time and tip speed then become the scale-up criteria that preserve equivalent blending between pilot and plant vessels.

2. Major Types of Stirred Tank Reactors

Stirred tank service splits by operating mode and duty:

· Batch Stirred Tank Reactors: The classical agitated kettle: charge, react with full recipe control, discharge. The default vessel for multi-product specialty, pharmaceutical, and food processes requiring flexibility and validated cleaning between campaigns.

· Continuous Stirred-Tank Reactors (CSTR): Steady-state STRs with continuous feed and withdrawal; well-mixed contents make exit composition equal tank composition. Cascades of CSTRs approach plug-flow conversion and dominate bulk liquid-phase chemical production.

· Special-Duty Agitated Tanks: Gas-inducing, gassed (fermentation), and multi-impeller deep tanks engineered for three-phase chemistry—simultaneously dispersing gas, suspending solids, and blending liquid as required in hydrogenation and bioprocessing.

Stirred Tank Reactor Types Comparison Matrix

Frequently Asked Questions (FAQ)

Q: What is a stirred tank reactor?

A: A stirred tank reactor is a vessel in which a rotating impeller mixes, suspends, and aerates the reacting contents—providing the controlled agitation environment on which batch and continuous chemical, pharmaceutical, and biochemical processes depend.

Q: Why do stirred tanks need baffles?

A: Without baffles, the impeller sets the liquid rotating as a solid body, forming a central vortex and wasting power on swirl rather than mixing. Baffles interrupt rotation, converting energy into the vertical circulation that actually blends the tank.

Q: What impeller types are standard in stirred tanks?

A: Radial-flow Rushton turbines handle gas dispersion with high shear; pitched-blade turbines blend and suspend solids efficiently; hydrofoil impellers deliver maximum pumping per kilowatt; and anchor or helical ribbons serve high-viscosity pastes and polymers.

Q: What is the difference between a batch STR and a CSTR?

A: A batch stirred tank charges, reacts, and discharges cyclically with changing composition over time. A CSTR feeds and withdraws continuously so the well-mixed contents—and therefore the product stream—hold constant composition at steady state.
