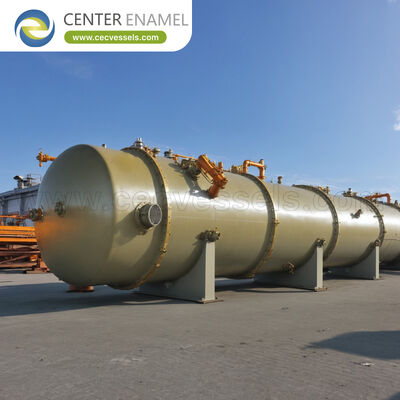

Hydrogen Heat Exchanger Considerations for Design and Safety

Answering the core question: What critical design, metallurgical, and safety protocols must engineers follow when deploying heat exchangers in hydrogen service? Hydrogen service introduces severe operating hurdles—including hydrogen embrittlement (HE), extreme gas diffusibility, high-pressure containment stress, and strict explosion safety requirements. Because hydrogen atoms easily diffuse into metal lattices and degrade structural integrity, standard heat exchanger architectures are inadequate. Safe, reliable operation demands specialized material selection (such as high-nickel austenitic stainless steels), all-welded configurations to eliminate leak paths, adherence to rigorous codes like API and ASME, and comprehensive non-destructive examination (NDE).

When hydrogen gas or liquid comes into contact with metallic heat exchanger components under pressure and temperature, it can trigger microstructural degradation:

• The Mechanism of Embrittlement: Dissociated hydrogen atoms diffuse into the metal matrix, causing Hydrogen-Enhanced Localized Plasticity (HELP) or Hydrogen-Enhanced Decohesion (HEDE), which reduces material ductility and propagates micro-cracks.
• Selecting Resistant Alloys: Austenitic stainless steel grades (such as AISI 304 and 316) are widely favored in hydrogen service because their face-centered cubic crystal structures maintain superior ductility and fracture toughness compared to carbon or low-alloy steels.
• Adhering to Industry Standards: High-temperature and high-pressure units must comply with specialized guidelines such as API 934-B (for material selection, fabrication, and post-weld heat treatment) and API 941 (utilizing Nelson curves to manage safe operational thresholds).

Hydrogen is the smallest molecule in the universe, granting it high volatility and rapid mobility through standard seals and joints:

• Eliminating Bolted Flanges: Because hydrogen readily leaks through conventional gaskets and bolted connections, modern high-pressure hydrogen heat exchangers eliminate mechanical joints wherever possible, opting instead for butt-welded piping connections.
• Welded Tube-to-Tubesheet Joints: In shell and tube configurations, standard roller-expanded tube joints are vulnerable to micro-leakage. Critical hydrogen service requires precision-welded tube-to-tubesheet geometry supplemented by rigorous testing.

Operating extremes—ranging from cryogenic liquid states (-253°C) to high-pressure gaseous storage up to 100 MPa—impose immense mechanical stress:

• Accommodating Thermal Expansion: Rapid temperature shifts during startup, shutdown, or cryogenic processing create thermal shock differentials. U-tube or floating-head architectures allow internal tube bundles to expand independently, preventing thermal fatigue failures.
• Minimizing Stress Concentrators: Design engineers must avoid abrupt geometric transitions, poorly fused reinforcement pads, or complex weld intersections where stress and hydrogen can accumulate.

Ensuring absolute integrity prior to commissioning requires strict quality assurance protocols:

• Advanced Non-Destructive Examination: Radiographic Testing (RT) and Ultrasonic Testing (UT) are heavily utilized to detect internal weld flaws, micro-fissures, and thickness variations deep within thick-walled pressure shells and tubesheets.
• Strict Weld Control: Preheating procedures, controlled welding environments, and post-weld heat treatments (PWHT) are mandatory to eliminate residual stresses in weld heat-affected zones (HAZ).
