What Are Heat Exchanges and How Do They Work?
Answering the core question: What is a heat exchanger, and what fundamental thermodynamic principles govern how thermal energy transfers between fluids? A heat exchanger is an engineering device designed to transfer thermal energy between two or more fluids—such as liquids, gases, or steam—without allowing them to mix. Operating under the First Law of Thermodynamics, heat exchangers harness natural temperature gradients to heat or cool process streams efficiently across industries ranging from HVAC and power generation to chemical manufacturing and automotive cooling.
1. The Core Working Principle: Thermodynamics, Conduction, and Convection
Heat exchangers rely on a universal physical law: thermal energy naturally flows from a higher-temperature substance to a lower-temperature substance until thermal equilibrium is approached. The operational mechanism combines primary modes of heat transfer across a solid, conductive dividing wall (typically metal):
- Convection (Fluid-to-Wall): Thermal energy moves from the hot fluid to the internal surface of the metal barrier on one side, and similarly transfers from the outer wall surface to the cold fluid on the opposing side.
- Conduction (Through the Solid Wall): Heat energy passes directly through the separating metal wall (such as a tube wall or plate) via molecular collisions without mixing the fluid streams.
- Flow Configurations: Thermal performance is heavily determined by fluid movement patterns—counterflow (fluids moving in opposite directions, offering the highest thermal efficiency), parallel flow (fluids moving in the same direction), and crossflow (fluids flowing perpendicular to each other).
2. Major Types of Heat Exchangers
Different industrial applications demand specific construction designs to handle pressure, temperature, and fluid characteristics:

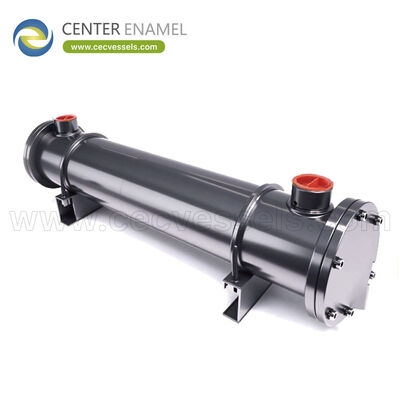

- Shell and Tube Heat Exchangers: Composed of a large cylindrical shell enclosing a bundle of tubes. One fluid flows inside the tubes while the other circulates outside them within the shell, offering robust durability for high-pressure and high-temperature services.
- Plate Heat Exchangers (PHE): Built from a series of thin, corrugated metal plates pressed together with alternating channels. This configuration delivers a massive surface-area-to-volume ratio in a compact footprint, ideal for HVAC and food processing.
- Air-Cooled Heat Exchangers (Finned Tube): Utilize forced or induced draft fans to blow ambient air across finned tubes, cooling process fluids directly without consuming water resources.
- Double Pipe Heat Exchangers: A concentric design where one fluid flows through an inner pipe and the second fluid flows through the annular space, perfect for small-scale or pilot plant operations.
Heat Exchangers Types and Operating Characteristics Matrix
| Heat Exchanger Type | Core Construction Design | Primary Flow Configurations | Maximum Thermal Advantage | Typical Industrial Application |
|---|---|---|---|---|
| Shell and Tube | Cylindrical shell enclosing a bundle of metal tubes | Counterflow, Parallel, Multi-pass | Handles extreme pressures and high temperatures safely | Oil and gas refineries, power plant steam condensers |
| Plate Heat Exchanger | Stack of thin, corrugated metal plates with gaskets | Counterflow (alternating channels) | High surface-area-to-volume ratio and compact footprint | HVAC climate control, food & beverage pasteurization |
| Air-Cooled (Finned Tube) | Finned tube bundles paired with forced/induced fans | Crossflow (air over tubes) | Eliminates water usage by utilizing ambient air cooling | Power plants, gas compression stations, chemical plants |
| Double Pipe | Concentric inner and outer pipe assembly | Counterflow or Parallel flow | Economical design with easy accessibility for maintenance | Small-scale industrial processes, pilot chemical plants |
Frequently Asked Questions (FAQ)
Q: What is the primary purpose of a heat exchanger?
A: A heat exchanger transfers thermal energy from a hotter fluid to a cooler fluid to heat or cool process streams, recover waste heat, and maintain safe operating temperatures in industrial systems.
Q: Do the hot and cold fluids mix inside a heat exchanger?
A: No. In most industrial heat exchangers, the fluids remain completely separated by a conductive solid barrier (such as a metal tube or plate) that allows heat to pass through while preventing direct fluid mixing.
Q: Why is counter-current flow more efficient than parallel flow?
A: In counterflow arrangements, fluids move in opposite directions, maintaining a more uniform and higher temperature difference across the entire length of the exchanger, which maximizes total heat transfer efficiency.
Q: What materials are commonly used to build heat exchanger surfaces?
A: Heat exchanger surfaces are typically fabricated from high-conductivity, corrosion-resistant metals such as austenitic stainless steels (e.g., AISI 304 or 316L), copper, titanium, or specialized high-nickel alloys depending on the fluid chemistry.
