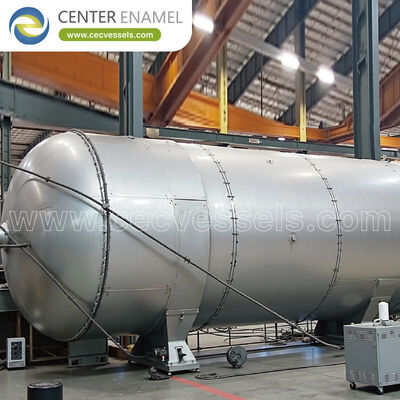

What is a Double-Walled Tank?

A double-walled tank is an industrial storage vessel consisting of an inner containment shell encased within a larger, secondary outer shell. This design is engineered specifically to provide secondary containment, acting as a fail-safe against spills or leaks.

If the inner tank—which holds the actual product—should experience a breach due to corrosion, structural fatigue, or mechanical damage, the outer tank captures the leaked fluid. This prevents hazardous materials from contaminating the soil, groundwater, or surrounding facilities, making double-walled tanks the standard requirement for storing fuels, chemicals, and hazardous liquids in environmentally sensitive areas.

The efficacy of a double-walled tank relies on the geometry and engineering of three distinct layers:

• The Primary Tank (Inner Wall): This is the vessel in direct contact with the stored product. It is constructed to be chemically compatible with the contents, ensuring structural integrity under the weight of the fluid.

• The Interstitial Space: The critical gap between the inner and outer walls. This space is engineered to be monitored for leaks. If the inner wall fails, fluid collects in this void, preventing an environmental release.

• The Secondary Containment (Outer Wall): The external shell. In many designs, this outer shell is constructed to hold 100% of the primary tank's capacity, ensuring that even a total catastrophic failure of the inner wall results in zero leakage to the outside environment.

The primary advantage of a double-walled tank is not just storage, but monitoring. Because the interstitial space is a closed system, engineers can install sophisticated sensors to detect a breach before it becomes a disaster.

There are three primary methods for monitoring this space:

1. Vacuum Monitoring: The interstitial space is maintained under a constant vacuum. If the inner or outer wall is punctured, the vacuum pressure changes, triggering an immediate alarm.

2. Hydrostatic/Liquid Monitoring: The space is filled with a benign fluid (often brine). Sensors detect a rise or fall in the fluid level, which indicates a breach in either the inner or outer wall.

3. Electronic/Solid-State Sensing: Float switches or vapor sensors are placed at the lowest point of the interstitial space to detect the presence of the stored liquid product.

Procurement teams often weigh the cost of double-walled tanks against single-walled alternatives. While single-walled tanks are lower in upfront capital expenditure, they require the construction of an external concrete "bund" or dike to meet environmental regulations.

When designing or purchasing these systems, compliance with specific manufacturing standards is mandatory to ensure structural integrity. In North America, the UL 142 (Steel Aboveground Tanks for Flammable and Combustible Liquids) is the gold standard for these vessels.

Engineers often calculate the volume capacity (V) required to ensure the secondary containment is sufficient:

Use this tool to determine the required volume for your secondary containment based on your primary storage needs.

Q: Do double-walled tanks eliminate the need for concrete dikes?

A: In many jurisdictions, yes. Because the tank provides "integrated" secondary containment, it satisfies regulatory requirements for spill prevention, often allowing it to be placed on a simple concrete slab rather than within a large, space-consuming dike wall.

Q: What happens if the outer wall corrodes?

A: This is the main weakness of the system. If the outer wall develops a hole, you lose your secondary containment capability. This is why high-quality tanks are finished with industrial-grade epoxy coatings or cathodic protection systems to prevent external corrosion.

Q: Can I store two different chemicals in a double-walled tank?

A: No. The interstitial space is not designed to hold a secondary product; it is a safety void. Storing chemicals in the interstitial space would interfere with leak detection and could lead to dangerous chemical reactions if the inner tank wall ever leaks.
