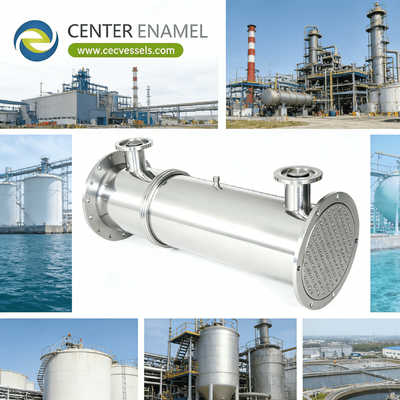

What is an Industrial Heat Exchanger?

An industrial heat exchanger is a heavy-duty mechanical device designed to efficiently transfer thermal energy (heat) from one fluid (liquid or gas) to another without allowing the two fluids to physically mix.

They are the thermodynamic workhorses of global manufacturing, utilized in oil refineries, chemical processing plants, power generation facilities, and large-scale HVAC systems. Whether the goal is to cool down a hot chemical product before storage, boil water into high-pressure steam, or recover waste heat to save energy, heat exchangers are the critical components that make industrial temperature control possible.

Regardless of their physical shape, all heat exchangers rely on the fundamental laws of thermodynamics. Heat naturally flows from a high-temperature source to a low-temperature sink. The fluids are separated by a highly thermally conductive barrier (usually metals like stainless steel, copper, or titanium).

Engineers design these systems using two primary equations.

1. The Heat Duty Equation:

This calculates the total amount of thermal energy transferred based on the mass and temperature change of the fluids.

2. The Surface Area Equation:

This calculates the physical size (surface area) required to achieve that heat duty.

To understand how fluid properties and thermal goals dictate the size of an industrial heat exchanger, use the simulator below. Adjust the mass flow and temperature drop of a hot process stream to calculate the total Heat Duty, and see how the required surface area changes based on your chosen heat transfer coefficient.

There is no "one size fits all" heat exchanger. Plant engineers select different geometries based on system pressure, fluid viscosity, and the presence of corrosive or dirty particulate matter.

When specifying a heat exchanger for a plant, engineers must look beyond just the thermal math and consider long-term operability:

• Pressure Drop ($Delta P$): Pushing fluid through tight spaces (like the inside of tubes or between plates) creates friction. If the pressure drop is too high, the plant will have to spend massive amounts of electrical energy on larger pumps.

• Fouling Factor: Over time, minerals, algae, or chemical byproducts stick to the heat transfer surfaces. This "fouling" acts as insulation, reducing the $U$-value. Engineers deliberately oversize heat exchangers to account for this future fouling.

• Metallurgy: If processing aggressive acids or seawater, standard carbon steel will fail rapidly. Engineers must upgrade to stainless steel, Duplex, Titanium, or even Hastelloy to ensure the equipment survives its 20-year design life.

Q: Can the hot and cold fluids ever mix in a heat exchanger?

A: No. In standard industrial heat exchangers, the fluids are strictly separated by a metal wall. If they mix, it means the heat exchanger has suffered a mechanical failure (such as a ruptured tube or a blown gasket), which can lead to product contamination or hazardous chemical reactions.

Q: What is a "pass" in a heat exchanger?

A: A "pass" refers to how many times a fluid travels from one end of the exchanger to the other. In a 2-pass shell and tube exchanger, the fluid goes down half the tubes, turns around at a header cap, and comes back down the other half. Multiple passes increase fluid velocity and heat transfer efficiency, but they also increase pressure drop.

Q: Why do heat exchangers have baffles?

A: Baffles are metal plates placed inside the shell of a shell-and-tube exchanger. They support the long tubes (preventing them from vibrating and snapping) and force the shell-side fluid to flow in a turbulent zigzag pattern, which drastically improves thermal efficiency.
