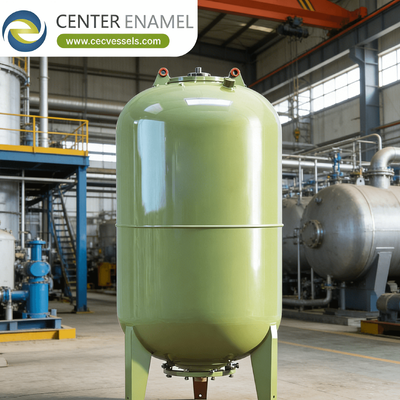

What is a Mixing Tank? A Comprehensive Guide to Industrial Selection

In industrial process engineering, a mixing tank (or mixing vessel) is a specialized container used to blend, homogenize, suspend, or react materials within a fluid medium. Unlike passive storage tanks, mixing vessels are engineered to manipulate the physical and chemical state of the contents through mechanical energy (agitation) and thermal control.

Whether you are in the pharmaceutical, chemical, or food and beverage industry, selecting the correct mixing vessel is the single most critical decision affecting your process yield and operational safety.

A mixing tank is more than just a shell. It is a system composed of specific mechanical elements designed to convert energy into fluid motion. At its core, the tank facilitates the interaction between two or more substances (liquid-liquid, solid-liquid, or gas-liquid) to create a uniform product.

• The Shell: The primary containment vessel, usually constructed from high-grade stainless steel (304 or 316L) to prevent contamination and corrosion.

• The Agitator (Impeller): The rotating component that creates the flow pattern. The design of the blade is matched to the fluid's viscosity (e.g., propellers for low viscosity, anchors for high viscosity).

• Baffles: Vertical plates on the tank wall that break up the circular rotation (vortexing) of the liquid. Without baffles, the fluid simply spins with the impeller, resulting in poor mixing.

• Drive System: The motor and gearbox assembly that provides the necessary torque.

• Thermal Control: Jackets or internal coils used to heat or cool the vessel contents during processing.

Choosing the right vessel is a balancing act between the physical properties of your fluid and the requirements of your process. Use this framework to guide your selection:

Before looking at steel, look at your fluid.

• Viscosity: How "thick" is it? Low-viscosity liquids (water, juices) require high-speed propellers. High-viscosity fluids (pastes, creams, resins) require low-speed, high-torque impellers like anchors or gate-style agitators.

• Shear Sensitivity: Are you mixing delicate materials (like biological cells or polymers)? High-shear impellers can destroy your product, while low-shear designs protect it.

• Blending vs. Suspension: Do you need to keep solids floating (suspension), or do you need to create a uniform mixture (blending)?

• Heat Transfer: If your reaction is exothermic (creates heat), you must ensure your vessel has adequate jacket surface area to maintain stability.

• Cleaning Requirements: In pharmaceuticals or food, you need CIP (Clean-in-Place) and SIP (Sterilization-in-Place) capabilities. Choose a vessel with smooth welds and no "dead legs" (stagnant areas).

• Corrosion Resistance: Ensure the metallurgy (316L Stainless vs. specialized alloys like Hastelloy) matches your process chemistry.

• Regulatory Compliance: If you are producing food or drugs, ensure the vessel is built to ASME BPE or EHEDG standards to guarantee hygienic design.

Q: Can I use a regular storage tank for mixing?

A: Generally, no. Storage tanks are not designed to withstand the vibration, torque, and bending moments of an agitator. Installing a mixer on an unreinforced storage tank will cause weld failure and structural fatigue.

Q: How do I know if I need baffles?

A: If you see a deep vortex (a funnel-like dip in the liquid surface) or if the liquid rotates as a solid mass, you are losing energy. Baffles are almost always required to convert rotational energy into effective mixing flow.

Q: What is the most important factor in scaling up?

A: Geometric similarity. Ensure the ratio of impeller diameter to tank diameter ($D/T$) remains consistent as you scale from pilot testing to full production.

Selecting the right mixing vessel is a multi-disciplinary task involving fluid dynamics, mechanical integrity, and material science. By defining your fluid's rheology and your process goals first, you can avoid the costly mistake of over-engineering or under-performing.
