Stainless Steel Reactor Manufacturing: Engineering & Design Guide

In the modern chemical, pharmaceutical, and food-processing sectors, a stainless steel reactor is the heart of the production line. Unlike simple storage vessels, a reactor is a precision-engineered dynamic system. Manufacturing these vessels requires strict adherence to international safety standards, metallurgical expertise, and customized mechanical design to facilitate complex chemical transformations.

Whether you are looking to procure a high-pressure reactor or an atmospheric blending vessel, understanding the manufacturing standards—specifically ASME compliance and material science—is vital for operational success.

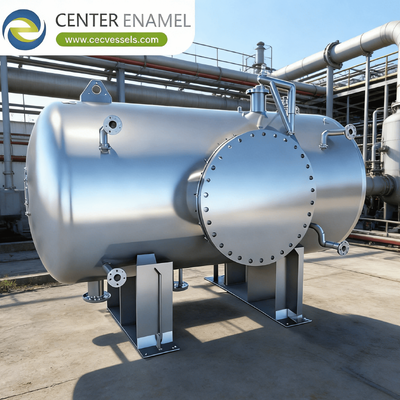

A high-performance reactor is more than just a steel shell. Manufacturing involves integrating several functional subsystems into a cohesive pressure vessel:

• Vessel Shell & Heads: Fabricated from high-quality stainless steel plates, formed into cylindrical shapes with torispherical or ellipsoidal heads. These must withstand the design pressure and temperature cycles defined by ASME Section VIII.

• Heat Transfer Jackets: The thermal management system. Depending on the process, manufacturers integrate:

  • Conventional Jackets: For moderate heating/cooling.

  • Dimple Jackets: For efficient, large-surface-area heat transfer.

  • Half-Pipe Coils: For high-pressure/high-velocity thermal media.

• Agitation System: The agitator—comprising the motor, gearbox, shaft, and impeller—must be matched to the viscosity of the reactants. Custom manufacturers calculate impeller geometry (turbine, anchor, or helical) to ensure optimal mass transfer and solids suspension.

• Seal Systems: High-integrity mechanical seals are critical at the entry point of the agitator shaft to prevent hazardous leaks and ensure a closed process loop.

The longevity of your reactor depends entirely on the stainless steel grade selected during the design phase.

• Why 316L? In reactor manufacturing, "L" stands for low carbon. This is crucial because it prevents carbide precipitation at weld seams, ensuring the reactor remains corrosion-resistant even at the joints.

To ensure safe operation, especially in hazardous chemical environments, manufacturers must follow rigorous protocols:

1. ASME Boiler and Pressure Vessel Code (BPVC): Most industrial reactors are built to ASME Section VIII, Division 1. This dictates the minimum wall thickness, weld procedures, and pressure-testing requirements.

2. Welding Procedures (WPS/PQR): Manufacturers must use qualified welding procedures. TIG (Tungsten Inert Gas) welding is standard for high-purity applications, providing smooth, penetrative welds that prevent crevices where bacteria or chemicals could harbor.

3. Non-Destructive Testing (NDT): A quality-assured reactor undergoes rigorous testing:

   • Dye Penetrant Testing: To check for surface cracks.

   • X-Ray Inspection: For deep weld integrity.

   • Hydrostatic Pressure Testing: Validating the vessel under 1.3x to 1.5x the operating pressure.

Q: Can I use an off-the-shelf reactor for my chemical process?

A: While off-the-shelf reactors are suitable for simple blending, most chemical processes require custom manufacturing. Factors like the heat of reaction (exothermic/endothermic), fluid viscosity, and pressure ratings vary so widely that custom engineering is usually required to ensure your reactor achieves the desired batch yield.

Q: What is the benefit of CIP/SIP-ready design in reactor manufacturing?

A: For pharmaceutical and food applications, the design must prioritize Clean-in-Place (CIP) and Sterilize-in-Place (SIP) capabilities. This means the manufacturer must eliminate "dead zones"—internal crevices or corners where material can trap and degrade—ensuring the vessel can be fully sanitized between batches.

Q: Why does the surface finish of the reactor interior matter?

A: Surface finish ($Ra$ value) affects both cleanability and reaction kinetics. A polished interior surface reduces the adhesion of viscous materials, ensures a better discharge rate, and is essential for meeting regulatory requirements in sterile environments.

Q: What is the typical lead time for a custom stainless steel reactor?

A: Lead times are heavily dependent on steel grade availability, the complexity of the internal agitator system, and the certification level required. A custom-fabricated unit typically ranges from 12 to 24 weeks from final drawing approval.

To help you narrow down your specific requirements, are you looking to replace an existing reactor due to corrosion issues, or are you designing a completely new production line for a specific chemical process?
