What is a Tower Reactor? Understanding Column Pressure Vessels in Chemical Processing

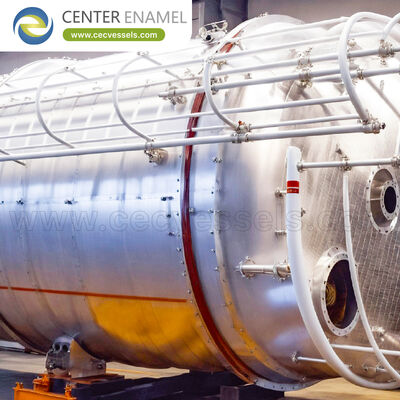

A tower reactor (frequently referred to as a column reactor) is a vertical, high-aspect-ratio pressure vessel specifically engineered to facilitate continuous chemical reactions, primarily between gases and liquids, or immiscible liquid phases. Unlike standard horizontal or square storage tanks, a tower reactor features a length-to-diameter ($L/D$) ratio typically exceeding 5:1—and often reaching up to 20:1 or greater.

This distinct vertical orientation utilizes gravity and buoyancy to maximize residence time (the amount of time a reactant spends inside the vessel) and optimize gas-liquid mass transfer without relying entirely on mechanical agitation. Because these structures operate under significant internal pressure, thermal gradients, and wind or seismic loads, they must be designed, fabricated, and certified as code-compliant industrial pressure vessels.

At the heart of a tower reactor's performance is its internal design, which ensures intimate contact between different phases. In a typical gas-liquid configuration:

• The Liquid Phase is fed from the top, flowing downward due to gravity.

• The Gas Phase is injected at the bottom via a sparger (a perforated pipe or nozzle that creates tiny gas bubbles), rising upward due to buoyancy.

As the bubbles rise through the descending liquid column, a continuous reaction occurs. Because tower reactors frequently process volatile, toxic, or highly flammable substances at elevated temperatures, the entire outer shell operates under strict pressure boundaries. The shell thickness must be precisely calculated to resist both internal process pressures and the massive compressive loads acting on the lower sections of the vertical column.

Not all tower reactors achieve mass transfer the same way. Fabricators categorize them based on their internal configurations:

The simplest variant where the vessel contains no internal moving parts or packing. The gas is sparged directly into the liquid column. These are highly favored for their low maintenance, excellent heat transfer rates, and cost-effective fabrication, though they can suffer from liquid back-mixing.

The interior is filled with random packing (e.g., Raschig rings, Pall rings) or structured corrugated metal sheets. This packing provides a massive surface area for the liquid to spread out as a thin film, dramatically increasing the contact area for the upward-flowing gas.

Equipped with horizontal stages or plates (sieve trays, bubble cap trays) along the height of the column. The liquid flows across the trays while the gas bubbles up through holes in the plates, creating distinct, staged reaction zones.

Because a tower reactor is classified as a heavy-duty pressure vessel, its engineering workflow is strictly bound by regulatory criteria. Fabricators cannot treat these like standard storage units.

• ASME Section VIII (Division 1 & 2): The definitive global framework governing the design margin, allowable stresses, and non-destructive testing (NDT) rules for the reactor shell and hemispherical/ellipsoidal heads.

• PED 2014/68/EU: Mandatory compliance if the tower reactor is destined for operation within the European Economic Area.

• GB/T 150: The standard governing pressure vessel design and fabrication within China and related international projects.

Selecting the shell and liner materials depends heavily on the corrosiveness of the reactants:

• Austenitic Stainless Steels (SS304, SS316L): The industry standard for general chemical, petrochemical, and sanitary pharmaceutical applications.

• Exotic Alloys (Hastelloy, Titanium): Utilized when processing highly acidic or halogenated compounds where traditional steels would experience rapid pitting or stress-corrosion cracking.

• Glass-Fused-to-Steel (GFS) / Glass Linings: Applied in larger-scale, lower-pressure biological reactors or harsh chemical processes. This combines the immense structural strength of a carbon steel exterior shell with an inert, vitreous interior surface that prevents corrosive breakdown.

Q: Why choose a vertical tower reactor over a horizontal stirred-tank reactor?

A: Tower reactors save extensive plant floor space due to their vertical footprint. More importantly, they offer superior gas-liquid contact area and eliminate the need for mechanical agitator shafts, which removes a common failure point for high-pressure shaft seals.

Q: How do engineers prevent a tower reactor from tipping under environmental loads?

A: Because of their height, tower reactors are highly susceptible to wind forces and seismic activity. Engineers use Finite Element Analysis (FEA) to design a reinforced lower "skirt"—a cylindrical support welded to the bottom head that secures the vessel safely to a heavy concrete foundation using massive anchor bolts.

Q: What type of NDT (Non-Destructive Testing) is required for these columns?

A: Due to the high risk associated with pressure boundary failures, manufacturers must perform 100% Radiographic Testing (RT) on all longitudinal and circumferential butt welds, paired with Hydrostatic Testing at typically 1.3 times the maximum allowable working pressure (MAWP).
