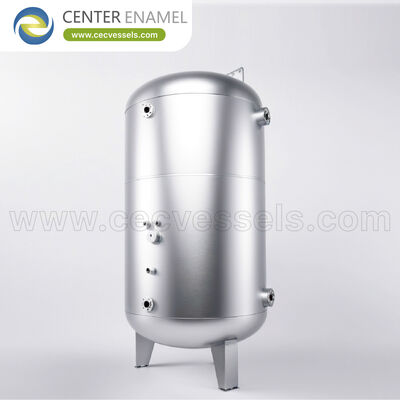

Sanitary Stainless Steel Storage Reactors with Integrated CIP Systems
stainless steel storage reactors
,sanitary stainless steel reactors
,CIP integrated stainless steel reactors
For pharmaceutical, biotech, and high-end food and beverage applications, a Sanitary Stainless Steel Storage Reactor is the gold standard for process integrity. By utilizing 316L stainless steel with electropolished finishes and integrating Clean-In-Place (CIP) technology, these vessels minimize contamination risk, reduce manual labor, and ensure strict compliance with global standards (ASME BPE, EHEDG, FDA). The integration of automated spray balls and optimized drainage geometry ensures 100% surface coverage, eliminating biofilm buildup and cross-contamination.
"Sanitary" design is not merely a label; it is a rigid engineering discipline. The goal is to create a vessel where no particulate matter, microbes, or chemical residues can hide.
The foundation of a sanitary reactor is its material metallurgy and surface topography.
Material: 316L Stainless Steel is mandatory for its superior corrosion resistance against aggressive cleaning agents and process chemicals.
Surface Finish (Ra): The Arithmetic Average Roughness (Ra) of the internal surface is the most critical metric. For high-purity applications, the internal surface must be electropolished to achieve an Ra ≤ 0.4 µm (micro-meters).
Where Ra represents the arithmetic average of the absolute values of the profile height deviations from the mean line. A lower Ra value ensures that microorganisms cannot adhere to the microscopic valleys of the metal surface.
An integrated Clean-In-Place (CIP) system replaces manual cleaning (which is error-prone and labor-intensive) with an automated, validated process.
The system consists of a network of Rotary Spray Heads or Static Spray Balls strategically positioned to ensure 100% "wetted coverage" of the interior, including the underside of agitator blades, baffles, and nozzles.
Fluid Dynamics: The CIP process is governed by the mechanical action of the cleaning fluid (shear force) and the chemical reaction time.
Dead-Leg Elimination: A primary cause of contamination is "dead legs"—pipes or fittings where flow is stagnant. Sanitary reactors utilize "flush-mounted" valves and sensors to ensure the CIP fluid reaches every corner of the system.
Storage reactors for sanitary applications must adhere to specific industry standards to be accepted in validated environments.
| Standard | Focus Area | Requirement for Reactors |
|---|---|---|
| ASME BPE | Bioprocessing Equipment | Stringent requirements for welding, surface finish, and materials. |
| EHEDG | Hygienic Design | Dictates geometry (e.g., minimum radii, slope for drainage). |
| FDA/cGMP | Manufacturing Practices | Requires cleanability, traceability, and material inertness. |
| 3-A Standards | Dairy/Food Processing | Focuses on preventing bacterial accumulation. |
When customizing a storage reactor, prioritize these three non-negotiable features:
Dished Bottom with Centralized/Offset Drain: The bottom head should be sloped toward a low-point drain to ensure the vessel empties completely. Gravity is the first step in cleaning.
Crevice-Free Construction: All internal welds must be ground flush and polished. The transition between the shell and the bottom head must be a generous radius (typically >12mm) to prevent the accumulation of product.
Hygienic Seals: All gaskets, O-rings, and seals must be made of USP Class VI compliant materials (such as EPDM, PTFE, or Silicone) that are chemically resistant to your specific CIP cleaning agents.
Q: Why is electropolishing preferred over mechanical polishing?
A: Mechanical polishing can leave "smear" metal or micro-scratches on the surface. Electropolishing is an electrochemical process that removes a microscopic layer of the metal, creating a passive, chromium-rich surface that is smoother and more corrosion-resistant.
Q: Can I use the same reactor for different products?
A: Yes, provided the CIP system is validated. "Validation" means you have proof (via swabbing or conductivity testing) that the cleaning cycle removes 100% of the previous product’s residue, preventing cross-contamination.
Q: How do I know if my spray balls are working?
A: Use "Riboflavin Testing." Spray the interior with a fluorescent dye (riboflavin) and then run the CIP cycle. If, under UV light, any fluorescence remains, the spray coverage is insufficient and the reactor is not technically "clean."
A sanitary stainless steel storage reactor with integrated CIP is an essential asset for any facility requiring rigorous purity standards. By focusing on surface finish (Ra ≤ 0.4 µm), eliminating dead legs, and utilizing validated automated cleaning cycles, you significantly reduce the risk of product loss and regulatory failure while driving long-term operational efficiency.
