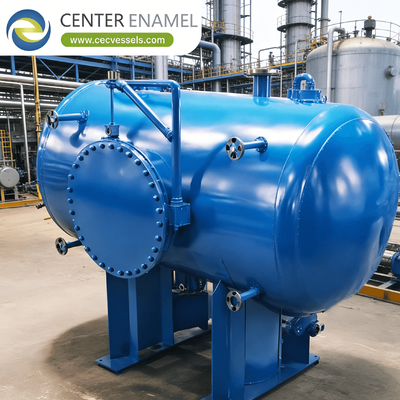

In fertilizer production—particularly urea synthesis—the high-pressure carbamate condenser is the heart of the plant’s synthesis loop. These units are engineered for extreme operating environments where high pressure (often 14–20 MPa) meets highly corrosive chemical mixtures. Advanced reliability is achieved through optimized structural design, precise thermal management to prevent fouling, and strict adherence to ASME/PED pressure vessel standards. By integrating predictive maintenance and intelligent control systems, modern plants achieve higher on-stream times and improved energy efficiency.
Fertilizer synthesis involves highly aggressive media that require specialized hardware. The condenser must convert gaseous ammonia and carbon dioxide (or recycle streams) into liquid carbamate under conditions that are physically and chemically demanding.
-
Pressure Resistance: Utilizing ASME-certified high-tensile materials (e.g., Duplex stainless steels or titanium-stabilized alloys) ensures the vessel can withstand intense internal pressures and thermal cycling.
-
Full Penetration Welding: To eliminate weak points, all tube-to-tubesheet and shell joints undergo full-penetration welding followed by rigorous Non-Destructive Examination (NDE), such as Radiographic (RT) or Ultrasonic (UT) testing.
-
Corrosion Mitigation: Because urea/carbamate mixtures are corrosive, materials are selected for high passivation capability. Precise control of the N/C (Nitrogen to Carbon) ratio and the addition of passivation air are essential to maintain the protective oxide layer on stainless steel surfaces.
Effective condensation relies on the ability to maintain a precise temperature differential across the heat transfer surface.
-
Falling-Film Technology: Modern urea plants often employ falling-film carbamate condensers. The process liquid flows as a thin film inside the tubes, while coolant circulates on the shell side. This maximizes the heat transfer coefficient and ensures efficient vapor-liquid contact.
-
Pool Condenser Designs: These act as combined heat exchangers and reactors (pool reactors), simplifying the high-pressure loop by integrating synthesis functions, which reduces the number of pressure-containing components.
-
Thermal Optimization: Advanced CFD (Computational Fluid Dynamics) modeling is used to design internal flow distribution, ensuring uniform wetting of heating surfaces and preventing "hot spots" that lead to fouling or localized corrosion.
| Feature | Falling-Film Condenser | Pool Condenser | Mixing (Direct) Condenser |
|---|---|---|---|
| Primary Function | Efficient Heat Transfer | Integrated Reaction/Condensing | Direct Vapor-Liquid Contact |
| Footprint | Moderate | Compact (Reduced Loop) | High (Requires auxiliary eq) |
| Operational Stability | High | Excellent (Self-regulating) | High (Insensitive to impurities) |
| Maintenance | Routine inspection required | Simplified (Fewer components) | Low (No surface fouling) |
The modern fertilizer plant is a digitally monitored ecosystem where the condenser's performance is tied to real-time plant data.
-
Digital Traceability: Every weld and material batch is logged and tracked to ensure compliance with global safety standards like ASME, PED, and GB150.
-
Automated Control: Advanced PLC systems monitor pressure/temperature gradients in real-time, allowing for rapid capacity changes while maintaining stable synthesis conditions.
-
Predictive Maintenance: Sensors integrated into the condenser shell allow for early detection of vibration, flow fluctuations, or thermal instability before they manifest as mechanical failure.
Q: Why is "Passivation" critical for fertilizer plant condensers?
A: Stainless steel components in urea service rely on a self-healing oxide layer. If this layer is damaged or not properly maintained, the material will corrode rapidly. Precise control of passivation air and process temperature is necessary to keep the steel "passive" and corrosion-resistant.
Q: What is the benefit of moving from a conventional condenser to a "Pool Reactor/Condenser"?
A: Integration reduces the number of high-pressure vessels and interconnecting piping. This minimizes the leak potential, reduces the total plant height, and often simplifies the control of the high-pressure loop.
Q: How do you prevent tube fouling in these high-pressure units?
A: Fouling is prevented by ensuring high-velocity fluid distribution and uniform wetting of the tubes. Advanced internal distribution trays ensure that the liquid film covers all surfaces, preventing dry-out and subsequent salt/solid crystallization.
For fertilizer manufacturers, the condenser is the primary determinant of synthesis efficiency and loop reliability. By selecting high-pressure-resistant designs, prioritizing materials with superior corrosion resistance, and utilizing modern falling-film or pool-type technologies, plants can ensure consistent production quality while extending the lifecycle of their critical synthesis infrastructure.
