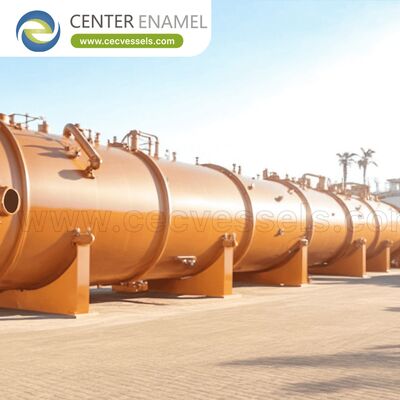

China Acid-Resistant Pressure Vessels: Advanced Material Integrity & Process Stability
acid resistant pressure vessel
,industrial heat exchanger
,harsh processing pressure vessel
In modern chemical processing, the shift from traditional carbon steel to advanced, acid-resistant pressure vessels is a critical operational imperative. Leading Chinese manufacturers have evolved from simple fabricators into high-end engineering partners, leveraging specialized Corrosion-Resistant Alloys (CRA) such as Hastelloy, Titanium, and Duplex Stainless Steels. By adhering to international certifications (ASME, PED, API) and utilizing automated, high-precision welding, these manufacturers now provide the material integrity and process stability required for the world’s most demanding acid-handling environments.
Corrosion is the primary threat to process stability. When handling strong acids (e.g., H2SO4, HCl, or HNO3), the reactor shell must maintain structural integrity while resisting localized attack (pitting, crevice corrosion, and stress corrosion cracking).
The industry standard for measuring the aggressiveness of an environment is the calculation of the Corrosion Rate ($CR$):
Top-tier Chinese manufacturers now integrate predictive corrosion modeling into their design phase, ensuring that the wall thickness and cladding depth are sufficient to provide a design life exceeding 20-30 years in highly acidic conditions.
"Material Integrity" is the cornerstone of safe chemical processing. The modern manufacturing approach involves two distinct strategies to manage acid exposure:
For high-severity environments, manufacturers utilize solid plates of exotic alloys. While more expensive, this eliminates the risk of "delamination" or weld-dilution issues associated with layered vessels. Titanium Grade 2 and Hastelloy C-276 are commonly used for high-purity acid reactors.
For larger pressure vessels, cost-efficiency is achieved by using a high-strength carbon steel backing (for structural integrity) "clad" with a thin layer of corrosion-resistant material.
Precision Welding: Manufacturers use robotic Gas Tungsten Arc Welding (GTAW) to minimize the dilution of the cladding material by the base carbon steel, ensuring the chemical composition of the surface layer remains consistent.
A pressure vessel is only as stable as its fabrication history. Leading facilities in China now differentiate themselves by providing:
ASME Section VIII, Div 1 & 2 Compliance: Ensuring global acceptance and structural safety.
Non-Destructive Testing (NDT) Rigor: Comprehensive Ultrasonic Testing (UT) and Radiographic Testing (RT) of all critical seams to detect inclusions or porosity before shipping.
Traceability: Full material traceability from the mill source to the final product, providing the documentation required for compliance in regulated chemical plants.
| Feature | Standard Carbon Steel | Advanced Acid-Resistant CRA Vessel |
| Acid Resistance | Minimal (requires thick liners) | High (Inherent alloy property) |
| Thermal Expansion | Moderate | Tailored (Specific to alloy) |
| Integrity Checks | Basic NDT | Full-scale UT/RT + Positive Material ID |
| Typical Lifespan | 5–10 years (in acid) | 20–30+ years |
| Design Basis | General Pressure Vessel | API/ASME Specialized Standards |
Q: Are pressure vessels from Chinese manufacturers compatible with international codes?
A: Yes. Tier-1 manufacturers in China produce equipment strictly to international standards, including ASME (USA), PED (Europe), and GB/T (China). They are audited by major third-party inspection agencies (e.g., TUV, Lloyd's, DNV) to ensure global compliance.
Q: How is "Material Integrity" verified for CRA-clad vessels?
A: Integrity is verified using Positive Material Identification (PMI) testing on all interior surfaces and weld seams, along with ultrasonic testing to ensure the "bond" between the cladding layer and the backing steel is free of voids or delamination.
Q: How do these vessels improve process stability?
A: By using high-performance alloys, the "corrosion allowance" is minimized. This leads to more predictable heat transfer rates (as corrosion product scales do not build up as heavily) and eliminates unexpected shutdowns caused by vessel wall leaks.
For chemical processors operating in acidic environments, the choice of vessel manufacturer is a strategic decision. With the integration of advanced metallurgical science, robotic welding technologies, and rigorous international quality standards, leading Chinese manufacturers are effectively delivering the material integrity and process stability required to support global chemical manufacturing infrastructure.
Are you currently evaluating vessel manufacturers for an upcoming chemical plant expansion, or are you troubleshooting premature corrosion in your existing reactor fleet?
Would you like to discuss the specific differences in performance between "Hastelloy" versus "Duplex Stainless" claddings for your particular acid concentration range?
