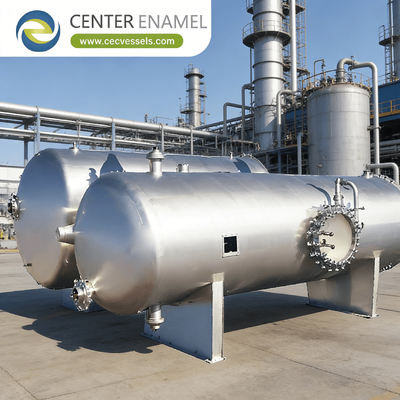

Stainless Steel Oil-Water Separators: Custom-Engineered Industrial Solutions

For industrial facilities, the efficient removal of free-phase oil from wastewater is a critical regulatory and operational requirement. Stainless Steel Oil-Water Separators (OWS) offer a durable, corrosion-resistant alternative to traditional carbon steel or concrete basins. By opting for a custom-sized solution, engineers can optimize the hydraulic residence time (HRT) and flow geometry to meet specific throughput demands and footprint constraints, ensuring reliable phase separation and environmental compliance.

The fundamental principle of gravity-based oil-water separation is defined by Stokes' Law, which predicts the terminal rise velocity (vs) of an oil droplet in a water medium:

To achieve high-efficiency separation (often targeting <10–15 ppm of oil in effluent), the OWS must be engineered so that the residence time allows for the complete rise of the oil droplet before the fluid reaches the outlet.

Off-the-shelf separators are often designed for "typical" flows that do not match the unique hydraulic profile of an industrial plant. Custom sizing provides:

• Flow Optimization: Precisely matching the vessel dimensions to your peak flow rates prevents turbulence, which is the primary cause of oil carry-over.

• Footprint Efficiency: Facilities with limited space benefit from custom configurations—such as vertical cylinders or narrow-profile rectangles—that maximize volume without disrupting existing site logistics.

• Integrated Baffling: Internal flow-distribution baffles can be custom-placed to dissipate the energy of incoming fluid, ensuring "plug flow" conditions and eliminating dead zones.

While carbon steel is common, it is highly susceptible to corrosion and internal pitting. In an OWS, corrosion releases iron oxide flakes that can emulsify oil, making it impossible to separate via gravity.

316L Stainless Steel is the preferred grade for industrial applications, providing immunity to most acidic or basic wastewater streams often found in manufacturing.

To ensure your separator maintains peak performance, consider the following:

1. Avoid High-Shear Pumps: If possible, use diaphragm or progressive cavity pumps upstream. Centrifugal pumps can create stable emulsions, which gravity separators cannot break.

2. Scheduled Maintenance: Even the most durable stainless steel unit requires the removal of settleable solids (sludge) from the bottom sump to prevent volume loss and anaerobic bacterial growth.

3. Level Control: For pressurized or high-throughput systems, automatic level control is vital to ensure the oil-collection weir remains positioned correctly relative to the oil/water interface.

Q: Can a gravity separator remove emulsified oil?

A: No. Gravity separators only remove "free" (non-emulsified) oil. If your process uses detergents, surfactants, or high-shear equipment that creates an emulsion, you will need a chemical treatment or dissolved air flotation (DAF) unit upstream.

Q: Why is stainless steel worth the higher upfront cost?

A: The "Total Cost of Ownership" (TCO) for stainless steel is lower. Carbon steel tanks require regular sandblasting and epoxy recoating, which are expensive, environmentally hazardous, and require significant downtime.

Q: How do I know the right size for my flow rate?

A: Size is determined by your peak flow rate and the specific gravity of the oil. Our engineering team can perform a sizing analysis based on your site's specific process data to ensure you meet environmental discharge limits.

A custom-sized Stainless Steel Oil-Water Separator is an investment in industrial efficiency and environmental stewardship. By tailoring the vessel's internal geometry to your specific flow dynamics and utilizing the corrosion-resistant properties of stainless steel, you minimize maintenance, prevent costly regulatory fines, and ensure long-term operational success.

Are you evaluating the separation requirements for your industrial process?

If you have specific flow rates, temperature profiles, or chemical compositions, our engineering team can provide a technical assessment and a custom sizing proposal to ensure your system meets both performance and safety standards.

Would you like to explore the differences between coalescing-plate separators and simple gravity-decanting tanks for your specific fluid type?
