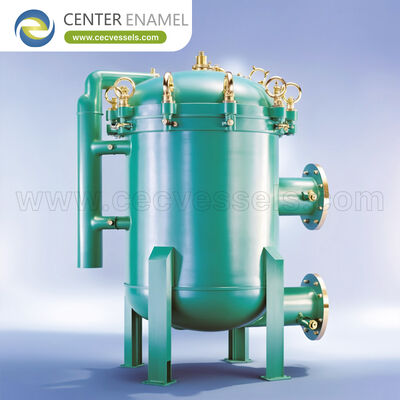

Automated Electronic Gas Condensers: Precision Control for Nuclear Gas Processing

In nuclear gas processing (e.g., fission gas retention, noble gas separation, or off-gas treatment), the primary goal of an electronic gas condenser is the precise phase-change of process gases while ensuring total containment. Unlike standard industrial equipment, these systems utilize Automated Electronic Precision Control to maintain temperature setpoints within fractions of a degree, preventing thermal stress on sensitive components and ensuring reliable removal of hazardous radioactive isotopes. Key differentiators include redundant sensor architecture, hermetic sealing to prevent radioactive leakage, and fail-safe automation logic.

Nuclear gas streams often involve complex mixtures (e.g., Xenon, Krypton, or volatile fission products) that require specific cryogenic or near-cryogenic conditions to liquefy or "freeze out" for sequestration. The removal of the latent heat of vaporization must be controlled with extreme precision to avoid unwanted precipitation or icing.

To ensure high-purity capture, the condenser operates via automated electronic expansion valves that dynamically adjust flow based on the temperature delta across the heat exchanger surface, ensuring the dew point remains consistent despite fluctuations in upstream pressure or gas composition.

The "Automated" component of nuclear-grade condensers goes beyond simple thermostats. It relies on a multi-tiered control architecture designed for remote operation and high reliability (High Availability).

• PID Feedback Controllers: Proportional-Integral-Derivative loops integrate real-time data from redundant RTDs (Resistance Temperature Detectors) placed along the condenser surface.

• Feed-Forward Control: If sensors detect a surge in upstream gas velocity or concentration, the controller anticipates the heat load spike and proactively adjusts coolant flow before the condenser temperature fluctuates.

• Variable Frequency Drives (VFDs): Regulate compressor/coolant pump speeds to reduce mechanical wear and maximize energy efficiency, which is critical in power-restricted nuclear containment zones.

In a nuclear environment, the condenser is not just a heat exchanger; it is a critical containment boundary.

• Hermetic Leak-Tightness: All connections must be orbital-welded or metal-to-metal (VCR) fittings. Helium leak testing is mandatory to ensure a leakage rate of $< 1 times 10^{-9} text{std cc/sec}$.

• Radiation-Hardened Instrumentation: Electronic components (sensors, actuators) are selected to withstand ionizing radiation without drift or degradation, often requiring shielded control cabinets or fiber-optic signal isolation.

• Double-Walled Containment: To prevent environmental release, the condenser housing typically features a secondary containment jacket equipped with vacuum or pressure monitoring to detect primary shell breaches immediately.

Q: How does automation prevent "thermal shock" in nuclear condensers?

A: Thermal shock is a risk during sudden startup or process upsets. Automated electronic condensers use "Soft Start" ramp-up profiles, where the coolant flow is introduced gradually based on internal surface temperature sensors, ensuring the material remains within safe thermal gradient limits.

Q: Why is electronic precision control better than mechanical regulators?

A: Mechanical regulators are prone to hysteresis and "drift" over time. Electronic controllers with digital feedback loops are repeatable, can be recalibrated remotely without opening the containment, and allow for data logging of every thermal event for regulatory compliance/safety auditing.

Q: Can these condensers handle radioactive decay heat?

A: Yes. Advanced designs incorporate additional cooling capacity to account for the internal heat generation caused by the decay of captured radioactive isotopes (e.g., Xenon-133), ensuring the condensate remains stable and does not re-vaporize.

The integration of automated precision temperature control in nuclear gas condensers is essential for regulatory compliance, safety, and process efficiency. By combining hermetic structural integrity with intelligent, redundant electronic control, these systems successfully isolate hazardous materials while maintaining the exact thermodynamic conditions required for nuclear processing.

Are you specifying a condenser system for a new facility design, or are you looking to upgrade an existing gas processing loop to meet more stringent radioactive retention requirements?
