Which Heat Exchanger Is the Most Efficient? A Direct Comparison

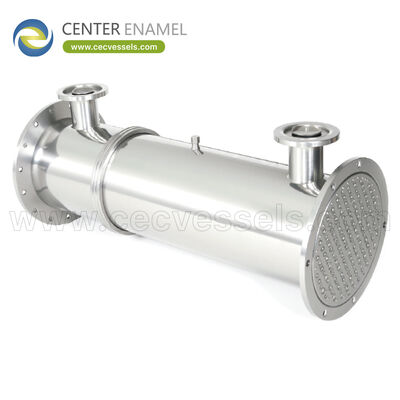

No single heat exchanger is "the most efficient" in every case. For typical liquid-liquid duties, brazed or gasketed plate heat exchangers reach the highest effectiveness (often 90-95%) because of large, thin heat-transfer surfaces. Shell-and-tube units are less effective per unit volume but remain the most versatile and serviceable for high pressure, high temperature, and fouling services. Efficiency must be judged against duty, fluid properties, pressure, and maintenance, not a single ranking.

This article compares the main heat exchanger families on effectiveness, best-fit duty, fouling sensitivity, and practical limits so specifying engineers can match the device to the process rather than chase a generic "most efficient" label.

What "Efficiency" Means for a Heat Exchanger

In heat-transfer engineering, the practical measure is effectiveness (epsilon, e), the ratio of actual heat transferred to the maximum thermodynamically possible heat transfer for the given inlet temperatures. A device at e = 0.90 recovers 90% of the achievable duty. Closely related is the approach temperature - the smallest temperature difference between the hot and cold streams at the cold end. A smaller approach implies higher effectiveness but also a larger, costlier unit and greater sensitivity to fouling.

Two other metrics matter in plant economics: NTU (number of transfer units), which scales with surface area and overall coefficient U; and LMTD (log mean temperature difference), used to size the exchanger once U and area are known. A "high-efficiency" claim is only meaningful when paired with the operating U-value and the allowable pressure drop, because pushing effectiveness up usually raises pumping cost.

• Effectiveness (e): actual vs maximum possible heat recovery; plate types routinely reach 0.90-0.95.
• Approach temperature: smaller = higher recovery, but larger area and fouling risk.
• U-value: overall coefficient; plate exchangers win on thin, highly conductive walls.

Comparison by Type

The table below summarizes how the principal exchanger families compare on effectiveness and suitability. Values are typical ranges for well-designed units; actual performance depends on fluids, velocities, and cleanliness.

Technical Considerations That Drive Real Performance

Effectiveness on paper collapses quickly under fouling. A plate exchanger that starts at 95% can fall below 80% within a season on dirty cooling water unless the plates are accessible for cleaning. Shell-and-tube designs tolerate worse fluids because tubes can be larger, cleanable, and even fitted with fouling-resistant alloys. For very high pressure or temperature (above roughly 200 degC in many plants), shell-and-tube or welded-plate constructions dominate because gaskets become the limiting factor.

Fluid phase also decides the winner. Gas-to-gas duties need extended surface (finned or plate-fin) because gases have low heat-transfer coefficients; liquid-to-liquid duties favor plates. Two-phase duties (condensing, boiling) need careful pass arrangement and are usually handled by shell-and-tube or specialized plate designs.

• Fouling: plate > spiral in clean services; shell-and-tube better for dirty fluids.
• Pressure/temperature: gaskets limit plates; shell-and-tube and welded plates go higher.
• Phase: gas duties need finned/plate-fin; liquids favor plates.

How to Select the Right Solution

Start from the duty: fluids, flow rates, inlet/outlet temperatures, pressure, and fouling tendency. If the stream is clean liquid-liquid at moderate pressure and you want maximum recovery in minimum footprint, a plate exchanger is usually the efficient choice. If the service is high-pressure, high-temperature, prone to fouling, or requires easy tube replacement, shell-and-tube is the pragmatic efficient choice. Spiral units suit slurry or fibrous fluids; finned/air-cooled units suit gas or water-scarce sites.

The correct engineering question is therefore not "which is most efficient" but "which gives the lowest lifecycle cost for this exact duty while meeting reliability and maintainability targets."

Heat Exchanger Type Efficiency and Duty Comparison

Efficiency is duty-specific. Plate exchangers deliver the highest effectiveness for clean liquid-liquid service, while shell-and-tube units are the more robust "efficient" choice for high pressure, high temperature, and fouling duties. Specify against lifecycle cost and reliability, not a single ranking.

Project Case Study

Project Background

A Chinese chemical plant required reliable high-temperature steam distribution and condensate recovery across multiple process trains. The verified equipment included a stainless steel steam header rated at 196 degC and 1.2 MPa and an atmospheric condensate tank, both in S30408 stainless steel.

Technical Challenge and Solution

The challenge was sustaining thermal performance under continuous high-temperature operation while protecting against condensation corrosion. Stainless steel construction and proper drainage design addressed the duty. This is shared as a verified example of real installed process thermal equipment rather than a heat exchanger product case.

About the Manufacturer

Shijiazhuang Zhengzhong Technology Co., Ltd (Center Enamel) designs and fabricates process pressure equipment - including reactors, separators, and stainless/carbon steel vessels - for chemical, environmental, and energy applications. The company works to recognized standards such as ASME, EN 13445, and GB/T 150, and supplies both domestic and export projects.

• Capabilities: carbon and stainless steel fabrication, welding procedure qualification, NDT.
• Standards: ASME, EN 13445, GB/T 150, ISO 9001, ISO 28765.
• Export experience: delivered verified projects in Malta, Uzbekistan, and across China.

Frequently Asked Questions (FAQ)

What is the most efficient heat exchanger for clean liquids?

For clean liquid-liquid duties, brazed or gasketed plate heat exchangers are typically the most efficient, reaching 90-95% effectiveness because of their large, thin heat-transfer surface and high U-values.

Why are shell-and-tube exchangers still used if plates are more efficient?

Shell-and-tube units tolerate higher pressure and temperature, handle fouling and two-phase duties better, and are field-serviceable - making them the more reliable efficient choice for harsh services.

Does a smaller approach temperature always mean better efficiency?

A smaller approach raises effectiveness but requires more area, costs more, and is more sensitive to fouling; it is only beneficial when the duty and maintenance plan support it.

Which exchanger handles fouling best?

Shell-and-tube and spiral designs handle fouling best; plate exchangers need clean fluids or frequent cleaning to keep their high effectiveness.

How do I choose between plate and shell-and-tube?

Choose plate for clean, moderate-pressure liquid-liquid recovery in compact footprints; choose shell-and-tube for high P/T, dirty, or two-phase services requiring maintainability.

What information is needed for a heat exchanger quotation?

Fluid identities and phases, flow rates, inlet/outlet temperatures, operating pressure, fouling factors, allowable pressure drop, and target materials or standards.
