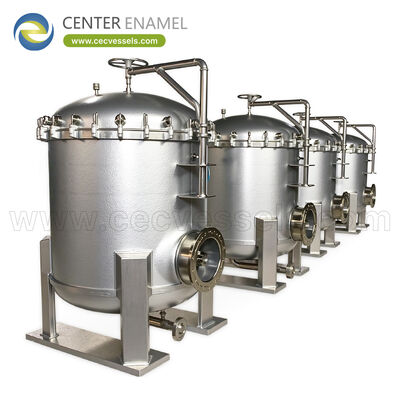

Heavy Duty Reactor: Design, Materials, and Applications for Demanding Service
A heavy duty reactor is a reaction vessel engineered for severe service: high pressure, high or low temperature, corrosive or abrasive streams, or continuous operation under load that would quickly degrade a standard vessel. The term is descriptive, not a code, and what makes a reactor 'heavy duty' is the combination of design margin, material selection, and fabrication discipline applied to the worst credible condition. This article covers the features and applications that separate heavy-duty reactors from general-purpose equipment.
What Makes a Reactor Heavy Duty
- Pressure envelope: Thick walls and robust closures rated well above ambient, often 10 MPa and beyond for synthesis duty.
- Thermal extremes: Designed for cryogenic or high-temperature operation with thermal cycling managed.
- Corrosion and abrasion: Alloys, claddings, or linings selected for aggressive or solids-laden service.
- Continuous load: Built for years of operation, not intermittent or pilot use.
Design Features
Wall and Closure Design
Heavy duty means generous wall thickness calculated to code with realistic corrosion allowance, and closures (bolted, welded, or quick-opening) rated for repeated opening under load.
- Reinforcement: Nozzles and openings are heavily reinforced against local stress.
- Supports: Saddles or skirts sized for full loaded weight and seismic load.
Thermal and Mechanical Management
Thermal gradients and cyclic load cause fatigue. Heavy duty reactors include design features that limit stress range: smooth transitions, controlled heating, and often full FEA of the hot spots.
- Fatigue analysis: Cyclic duty is assessed against code fatigue rules.
- Heating method: Half-pipe jackets, internal coils, or external heaters matched to the duty.
Materials for Severe Service
- Stainless and duplex: For corrosion resistance at moderate strength.
- Nickel alloys and Hastelloy: For aggressive chemicals and high temperature.
- Clad and lined construction: Cost-effective corrosion protection on a strong carbon-steel shell.
- Abrasion-resistant trims: Hard-facing or ceramic linings where solids erode.
Typical Heavy Duty Applications
Advantages and Limitations
- Advantages: Long service life, safety margin, and tolerance of process upsets.
- Limitations: Higher capital cost, longer lead time, and heavier handling requirements.
Selection and Specification Tips
Define the worst credible condition, not the average. Heavy duty reactors are specified against the peak pressure, the lowest or highest temperature, and the most corrosive species, with margin for the unexpected.
- State the envelope: MAWP, design temperature range, and corrodent.
- Plan maintenance: Access for internal inspection and lining repair.
- Verify fabrication: NDE scope appropriate to the severity.
Heavy Duty Reactor Applications
| Industry | Duty | Why heavy duty |
|---|---|---|
| Hydroprocessing | High-P / high-T hydrogenation | Thick wall, H2 service |
| Polymerization | Pressure, agitation, heat | Mixed severe loads |
| Mining / hydrometallurgy | Abrasive slurries | Erosion resistance |
| Syngas and ammonia | High pressure synthesis | H2, fatigue, temp |
A heavy duty reactor earns the name through margin and materials, not marketing. It is the vessel you specify when the duty is unforgiving: high pressure, extreme temperature, corrosion, or abrasion, often all at once. The payback is reliability and safety under load, and the cost is a heavier, more carefully engineered piece of equipment built to run for years without surprise.
Frequently Asked Questions (FAQ)
What defines a heavy duty reactor?
Severe service: high pressure, extreme temperature, corrosive or abrasive contents, and continuous loaded operation. The definition is practical, based on the worst credible operating condition, not a single code threshold.
What materials are used in heavy duty reactors?
It depends on the duty. Stainless and duplex resist corrosion; nickel alloys and Hastelloy handle aggressive chemicals and heat; clad or lined carbon steel gives corrosion protection at lower cost; ceramic or hard-faced trims resist abrasion.
Is a heavy duty reactor the same as a high pressure reactor?
Often related but not identical. A high-pressure reactor is heavy duty by pressure alone; a heavy duty reactor may also be defined by temperature, corrosion, abrasion, or continuous load. Pressure is one axis of severity.
When should I specify a heavy duty reactor?
When the process combines demanding conditions or when failure would be costly or dangerous. Define the worst credible pressure, temperature, and corrodent; if those exceed general-purpose limits, specify heavy duty with margin.
Are heavy duty reactors more expensive?
Yes, because of thicker walls, higher-grade materials, more NDE, and longer fabrication. The return is reliability and safety under load, which usually outweighs the premium over the equipment lifetime.
How is a heavy duty reactor inspected?
With NDE appropriate to severity (radiography or ultrasonic, magnetic particle or dye penetrant), hydrostatic test to code, and a documented MDR. Internal access for periodic lining and corrosion inspection is designed in from the start.
Can heavy duty reactors be customized?
Almost always. Heavy duty service is by definition specific, so dimensions, materials, internals, and code are tailored to the duty. The safety envelope set by the code remains fixed, but everything else is customized.
