What Is an Autoclave Reactor? Principles, Design & Applications

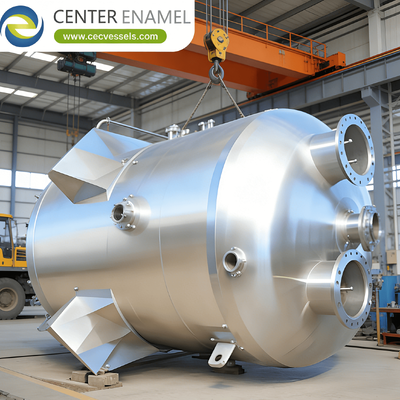

Answering the core question: What is an autoclave reactor, and how does it safely contain high-pressure reactions? An autoclave reactor is a pressure-rated vessel - typically ASME Section VIII Div.1 or Div.2 coded - that performs chemistry at 1-3,000 bar and 20-400 degree C far beyond atmospheric limits. Magnetic-drive or packed-gland agitators rotate the internals without a leaking shaft, while dual rupture discs and relief valves cap over-pressure at 110 percent of MAWP. Laboratory 0.05-5 L units synthesize nanoparticles and zeolites hydrothermally; industrial 1-5 m3 autoclaves drive high-pressure hydrogenation and vulcanization at 0.1-10 MPa with ppm-level leak integrity.
Core Operating Principles of Autoclave Reactors
- **Pressure Boundary and MAWP:** Wall thickness from ASME VIII formulas (t = PR/SE minus 0.6P) sets maximum allowable working pressure; dual relief devices limit excursion to 110-116 percent MAWP.
- **Leak-Free Agitation:** Magnetic couplings transmit torque through the sealed wall, eliminating packing glands that leak at above 50 bar; ideal for toxic or explosive atmospheres (ATEX).
- **Thermal Ramp Control:** External electric or fluid jackets raise temperature at 1-5 degree C/min; internal thermowells trigger emergency cooling if delta T exceeds setpoint.
Major Types of Autoclave Reactors
- **Stirred Mag-Drive Autoclave:** 0.1-100 L bench to pilot; PTFE or Hastelloy liner; used for hydrothermal and catalytic screening.
- **Industrial Hydrogenation Autoclave:** 1-5 m3, 30-100 bar, gas-entraining impeller; produces edible oils and fine chemicals.
- **Mini / Bomb Autoclave:** Sealed 10-100 mL PTFE-lined vessels for screening at 200 degree C, 20 bar without agitation.
Autoclave Reactor Types Comparison Matrix
| Autoclave Type | Pressure / Temp | Volume | Typical Use |
|---|---|---|---|
| Mag-Drive Stirred | 1-500 bar / 20-350 degree C | 0.1-100 L | Hydrothermal, catalysis |
| H2 Hydrogenation | 30-100 bar / 50-250 degree C | 1-5 m3 | Fats, fine chem |
| Bomb (lined) | 10-30 bar / 20-200 degree C | 10-100 mL | Screening |
| Continuous Tubular | 100-3,000 bar / 400 degree C | flow | Polymers, supercritical |
Frequently Asked Questions (FAQ)
Q: What makes an autoclave different from a standard atmospheric reactor?
A: An autoclave is specifically built and code-stamped for elevated pressure (often above 10 bar) with engineered relief and sealed agitation, whereas atmospheric tanks cannot safely contain the same stored energy.
Q: How is leakage prevented at high pressure?
A: Magnetic-drive couplings pass torque through a static wall with no rotating shaft penetration, and metal O-rings or delta seals hold integrity to 500 bar.
Q: What safety devices protect an autoclave?
A: A rupture disc sized below MAWP plus a spring relief valve, with interlocks blocking heat if pressure or temperature exceeds setpoint.
Q: At what pressure does hydrothermal synthesis run?
A: Typical lab hydrothermal autoclaves operate 20-100 bar at 150-250 degree C, exploiting water lower dielectric constant to grow crystals.
