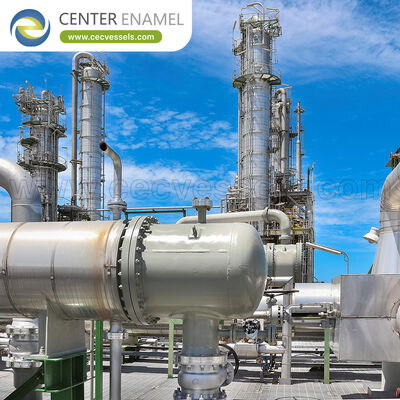

What Is a Titanium Reactor? Materials, Design & Applications
Answering the core question: What is a titanium reactor, and why does it survive chloride and acid environments that destroy stainless steel? A titanium reactor is a vessel built from commercially pure (Grade 2) or alloyed (Grade 5, Ti-6Al-4V) titanium whose surface forms a self-healing TiO2 passive film just 1-10 nm thick. That film resists pitting in chloride concentrations above 20,000 ppm and in oxidizing acids (nitric, wet chlorine) where 316L fails within months. Titanium serves at 0.1-10 MPa and up to 300 degree C in seawater desalination, chlor-alkali, and TiCl4 production, with a corrosion rate below 0.01 mm/year even under vapor-phase attack.
Core Operating Principles of Titanium Reactors
- Self-Healing Passive Film: The TiO2 layer reforms instantly when scratched, maintaining below 0.01 mm/year corrosion in oxidizing and chloride media.
- Chloride Immunity: Unlike 316L (pitting above 1,000 ppm Cl minus), titanium tolerates above 20,000 ppm chloride without crevice attack when properly designed.
- Low Thermal Expansion / High Strength: Ti-6Al-4V gives 900 MPa yield at half the weight of steel, allowing thin-wall, large-diameter reactors.
Major Types of Titanium Reactors
- Solid Titanium Vessels: Grade 2 or 5 construction for aggressive acid or chloride duty; used in chlor-alkali and spent-acid recovery.
- Titanium-Clad (Explosion-Bonded) Reactors: Carbon-steel shell with 3-6 mm Ti layer; 30-50 percent cheaper than solid Ti for large 20-200 m3 towers.
- Titanium-Lined Agitated Reactors: Glass-like inert lining for pharma and pigment synthesis requiring zero iron contamination.
Titanium Reactor Grades Comparison Matrix
| Titanium Grade | Composition | Key Resistance | Typical Service |
|---|---|---|---|
| Grade 2 (CP-Ti) | >99% Ti, low O | Chlorides, nitric, wet Cl2 | Seawater, chlor-alkali |
| Grade 5 (Ti-6Al-4V) | 6%Al, 4%V | High strength + corrosion | High-pressure vessels |
| Grade 7 (Ti-Pd) | 0.15% Pd | Reducing acids (HCl) | Acid recovery |
| Grade 12 | 0.3% Mo, 0.8% Ni | Hot brine, sour gas | Geothermal, oilfield |
Frequently Asked Questions (FAQ)
Q: Why does titanium resist chloride corrosion better than stainless steel?
A: Its nanometer TiO2 film stays stable in oxidizing chloride solutions, whereas 316L depends on chromium oxide that breaks down above about 1,000 ppm Cl minus, causing pitting.
Q: When is titanium-clad construction used instead of solid titanium?
A: For large 20-200 m3 towers where solid Ti is costly, a 3-6 mm explosion-bonded Ti layer on carbon steel cuts cost 30-50 percent while keeping corrosion resistance.
Q: Does titanium have weaknesses?
A: It is vulnerable in non-oxidizing reducing acids (hydrofluoric, concentrated HCl) unless palladium-alloyed (Grade 7), and it can gall or hydrogen-embrittle above 0.06 percent H2 pickup.
Q: What temperature limit applies to titanium reactors?
A: Continuous service to about 300 degree C for Grade 2; above this the oxide film weakens and hydrogen pickup accelerates, so design stays below 300 degree C.
