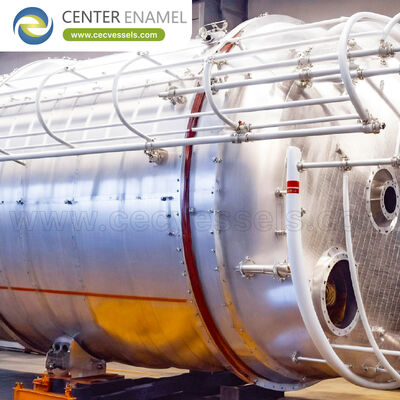

What Is a Jacketed Reactor? Principles, Design & Applications
Answering the core question: What is a jacketed reactor, and how does its surrounding jacket deliver precise heating and cooling? A jacketed reactor is a vessel wrapped by an outer shell - the jacket - through which heat-transfer fluid circulates to control the reaction temperature within plus or minus 0.5-2 degree C. Jackets raise the effective heat-transfer area by 2-4 times versus internal coils alone, supporting duties from minus 40 degree C cryogenic cooling to 350 degree C thermal-oil heating at design pressures of 0.1-10 MPa. Dimple and half-pipe coil geometries raise the overall coefficient (U) to 150-500 W/m2K, allowing exothermic loads of 50-200 kW to be removed per cubic meter of batch.
Core Operating Principles of Jacketed Reactors
- Jacket Heat-Transfer Geometry: Dimple jackets (0.3-1.0 MPa coolant) and half-pipe coils (up to 6 MPa) raise turbulence, lifting U from 50 W/m2K (plain) to 500 W/m2K.
- Thermal Fluid Selection: Water-glycol (minus 40 to 120 degree C), steam (up to 200 degree C at 1.5 MPa), or thermal oil (to 350 degree C) is chosen by duty; flow velocity above 1.5 m/s avoids stratification.
- Temperature Control Loop: PID with jacket inlet/outlet sensors and cascade to reactor thermowell holds setpoint within plus or minus 0.5 degree C for pharma and specialty batches.
Major Types of Jacketed Reactors
- Dimple Jacket Vessels: Laser-welded dimples create turbulent film; cost-effective for 0.5-20 m3 tanks at moderate 0.3-1.0 MPa jacket pressure.
- Half-Pipe Coil Jackets: Segmented 180 degree coils welded to shell handle 2-6 MPa and severe thermal cycling; preferred for exothermic polymerization.
- Limpet Coil (External Coil): Dual coils (heat/cool) on external shell for 50-200 m3 large reactors where full jacket is uneconomic.
Jacketed Reactor Types Comparison Matrix
| Jacket Type | Construction | Pressure / Temp Range | Heat-Transfer Coefficient U |
|---|---|---|---|
| Dimple Jacket | Spot-welded dimples, single shell | 0.3-1.0 MPa / -40 to 200 degree C | 200-400 W/m2K |
| Half-Pipe Coil | 180 degree pipe sections welded on | 2-6 MPa / -40 to 350 degree C | 300-500 W/m2K |
| Limpet Coil | External serpentine coils | 1-4 MPa / -20 to 300 degree C | 150-350 W/m2K |
| Plain Jacket | Simple annular shell | 0.1-1.0 MPa / 0-200 degree C | 50-150 W/m2K |
Frequently Asked Questions (FAQ)
Q: What is the main advantage of a jacketed reactor over internal coils?
A: The jacket surrounds the entire shell, delivering 2-4 times more heat-transfer area and more uniform wall temperature, which prevents local hot or cold spots that degrade product quality.
Q: Which jacket type handles the highest pressure?
A: Half-pipe coil jackets tolerate 2-6 MPa because each coil is a separate pressure boundary, making them ideal for high-pressure steam or hot-oil heating.
Q: How is temperature held within plus or minus 0.5 degree C?
A: A cascade PID loop reads jacket supply/return and reactor thermowell, modulating control valves on the thermal-fluid skid several times per minute.
Q: What fluids are used inside the jacket?
A: Water-glycol for sub-ambient duty, low-pressure steam for heating to 200 degree C, and thermal oil for 200-350 degree C; selection balances temperature, pressure, and fire-safety limits.
