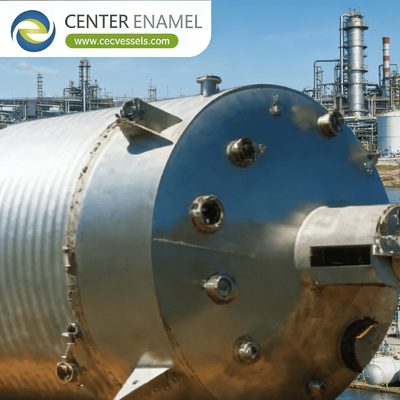

Answering the core question: What is a stainless steel stirred tank reactor, and how do mechanical agitation and thermal control drive chemical synthesis and fluid mixing? A stainless steel stirred tank reactor (often configured as a batch vessel or a Continuous Stirred-Tank Reactor, or CSTR) is a heavy-duty, pressure-rated containment container engineered to mix chemical reactants, accelerate mass transfer, and facilitate controlled chemical or biological reactions. Built from high-purity austenitic stainless steel and equipped with specialized agitators and thermal jackets, these reactors provide the precise operational control required for safe, high-volume industrial processing.
A professional stirred tank reactor integrates multiple specialized mechanical sub-systems to ensure uniform reaction conditions:
Chemical reactions are inherently thermodynamic events that require strict temperature regulation to prevent thermal runaway or stalled yields:
Stirred tank reactors serve as versatile workhorses across multiple advanced manufacturing industries:
| Reactor Component | Standard Commercial Specification | Engineering & Operational Function |
| Vessel Shell | AISI 304 or 316L Stainless Steel | ASME-certified containment of pressurized reactants |
| Agitation System | VFD motor with turbine/anchor impellers | Accelerates mass transfer and ensures uniform mixing |
| Thermal Jacket | Half-pipe or dimple thermal circulation jacket | Regulates exothermic and endothermic reaction temperatures |
| Shaft Sealing | Sanitary mechanical seal or magnetic drive | Maintains pressure boundaries under dynamic rotation |
| Internal Finish | Electropolished | Prevents chemical accumulation and aids CIP cleaning |
Q: What is a stainless steel stirred tank reactor?
A: A stainless steel stirred tank reactor is a pressure-rated industrial mixing vessel equipped with mechanical agitators and thermal jackets designed to mix reactants and control chemical reactions safely at scale.
Q: What is the difference between a batch stirred reactor and a CSTR?
A: A batch stirred reactor processes chemicals in discrete, closed cycles where materials are loaded and discharged all at once, whereas a Continuous Stirred-Tank Reactor (CSTR) features steady inlet and outlet flows for continuous production.
Q: Why is mechanical agitation critical in a stirred tank reactor?
A: Mechanical agitation accelerates mass transfer, prevents reactant settling in multi-phase mixtures, eliminates thermal hot spots, and ensures that chemical reactions proceed uniformly throughout the batch.
Q: What materials are standard for building industrial stirred tank reactors?
A: Industrial stirred tank reactors are universally fabricated from austenitic stainless steel alloys such as AISI 304 (for general use) or AISI 316L (for enhanced corrosion resistance against acids and pharmaceutical compounds).
