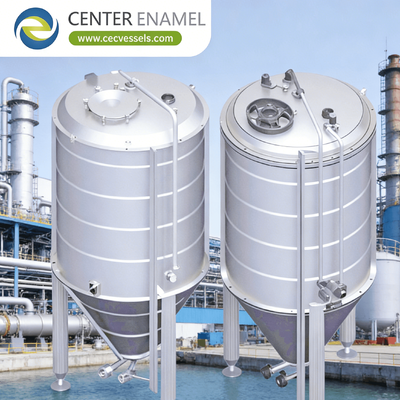

Answering the core question: What is a stainless steel jacketed reactor, and how does its double-walled thermal architecture regulate chemical reaction temperatures? A stainless steel jacketed reactor is a pressure-rated industrial mixing vessel featuring a secondary outer wall (the jacket) wrapped around the primary inner containment shell. By circulating heating or cooling fluids—such as steam, chilled water, or thermal oil—through this jacketed space, industrial plants achieve precise, uniform thermal management, allowing them to control violent exothermic reactions, drive endothermic synthesis, and ensure optimal product yield across chemical, pharmaceutical, and food processing sectors.
A professional jacketed reactor integrates several specialized mechanical and thermal sub-systems:
- The Inner Containment Shell: Fabricated from heavy-gauge austenitic stainless steel (such as AISI 304 or 316L), this vessel holds the chemical reactants and withstands internal operating pressures.
- The External Thermal Jacket: The outer shell welded to the vessel body, engineered to channel heat transfer fluids across the surface area of the inner wall without allowing fluid to mix with the product.
- Agitation Assemblies: Variable frequency drive (VFD) motors power internal shafts and impellers (such as anchor, turbine, or helical ribbon blades) to ensure rapid heat distribution and uniform fluid homogenization.
Different chemical processes demand distinct thermal transfer capabilities, leading to three primary jacket configurations:
- Conventional Jackets: A complete secondary shell built around the inner vessel. It provides a large fluid volume for general heating or cooling but is restricted to lower operating pressures due to structural span limitations.
- Dimple Jackets: Constructed from thin metal sheets embossed with a dot pattern and laser-welded to the vessel wall. This design creates a turbulent flow matrix that enhances heat transfer coefficients while supporting moderate internal jacket pressures.
- Half-Pipe Coil Jackets: Formed by welding half-pipe channels in a continuous helical coil around the outer vessel. This high-integrity design handles high-pressure steam and thermal oil loops safely, making it the preferred choice for demanding industrial chemical syntheses.
Because jacketed reactors frequently operate under intense thermal stress and pressure differentials, material integrity is paramount:
- Corrosion-Resistant Alloys: Utilizing low-carbon stainless steel grades (like AISI 304L or 316L) prevents weld decay and protects against chemical attack from active reactants and cleaning agents.
- ASME Pressure Certification: Both the inner vessel and outer thermal jacket are designed, fabricated, and tested in strict compliance with international pressure vessel codes, such as ASME Section VIII, Division 1.
| Jacket Design Type | Structural Architecture | Operating Pressure Limit | Primary Industrial Application |
|---|---|---|---|
| Conventional Jacket | Full secondary shell enclosing the inner vessel | Low to Moderate (up to 0.5 MPa) | General chemical mixing, food processing, mild heating |
| Dimple Jacket | Embossed metal sheet laser-welded to the shell | Moderate (up to 1.0 MPa) | Pharmaceutical synthesis, polymer processing, medium cooling |
| Half-Pipe Coil Jacket | Continuous helical half-pipe channels welded externally | High (up to 2.5 MPa or greater) | High-temperature reactions, high-pressure steam/oil loops |
Q: What is the primary purpose of a jacketed reactor?
A: A jacketed reactor uses a double-walled outer shell to circulate heating or cooling fluids, providing precise temperature regulation to control exothermic or endothermic chemical reactions.
Q: What is the difference between a dimple jacket and a half-pipe jacket?
A: A dimple jacket uses an embossed sheet with spot welds to create turbulent fluid flow for moderate pressures, whereas a half-pipe jacket uses welded tubular channels capable of handling high-pressure steam and thermal oil.
Q: Why is stainless steel the preferred material for industrial jacketed reactors?
A: Stainless steel offers high mechanical tensile strength for pressure containment, excellent thermal conductivity, and superior corrosion resistance, ensuring safe operation in chemical and pharmaceutical environments.
Q: How do thermal jackets prevent thermal runaway in exothermic reactions?
A: Thermal jackets circulate chilled water or thermal oil around the reactor shell, absorbing excess metabolic or chemical heat instantly to maintain stable target temperatures within the vessel.
