What Is a Stainless Steel Reactor Vessel? Anatomy, Design, and Applications
stainless steel reactor vessel design
,stainless steel reactor applications
,stainless steel reactor vessel anatomy

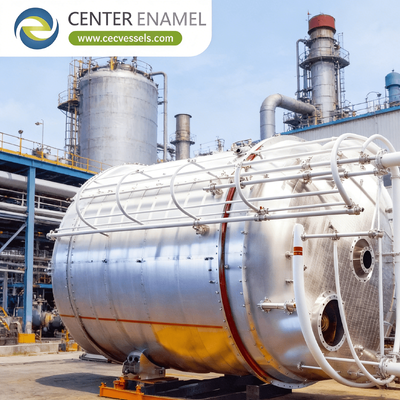

Answering the core question: What is a stainless steel reactor vessel, and how do its mechanical, thermal, and metallurgical design elements drive industrial chemical and pharmaceutical manufacturing? A stainless steel reactor vessel is a heavy-duty, pressure-rated containment container engineered to mix chemical reactants, facilitate controlled chemical or biological reactions, and manage complex thermodynamic processes under precise temperature, pressure, and agitation parameters. From fine chemicals and polymers to pharmaceuticals and petrochemical intermediates, stainless steel reactor vessels provide the structural strength and corrosion resistance required for safe, high-volume production.
A professional reaction vessel integrates multiple specialized sub-systems to maintain absolute control over chemical environments:
The Pressure-Rated Shell: Fabricated from heavy-gauge stainless steel plate to withstand high internal pressures, vacuum conditions, and mechanical stress, strictly adhering to international standards like ASME Section VIII.
Agitation and Mixing Assemblies: Variable frequency drive (VFD) motors power internal shafts equipped with specialized impellers (such as turbine, anchor, or marine propellers) designed to accelerate mass transfer and ensure uniform reactant homogenization.
Thermal Jackets: Double-wall construction featuring conventional, dimple, or half-pipe jackets that circulate steam, chilled water, or thermal oil to manage exothermic and endothermic reaction heat.
Choosing the correct stainless steel alloy prevents corrosion, pitting, and catastrophic structural failure:
AISI 304 Stainless Steel: The standard, cost-effective alloy utilized for general chemical mixing, food-grade processing, and mild aqueous solutions where resistance to atmospheric corrosion is sufficient.
AISI 316L Stainless Steel: Features an addition of molybdenum, providing superior resistance against chloride pitting and aggressive acidic chemical environments.
AISI 321 Stainless Steel: Stabilized with titanium to prevent intergranular corrosion and weld decay during high-temperature thermal cycles.
Modern chemical reactors rely on automated feedback loops to maintain process safety and reaction kinetics:
Real-Time Sensor Arrays: Thermocouples, pressure transducers, and pH probes monitor reaction parameters continuously and transmit data to programmable logic controllers (PLCs).
Automated Valve Manifolds: Pneumatic control valves regulate reactant dosing, cooling fluid flow rates, and pressure relief valves instantly to prevent thermal runaway.
| Vessel Component | Standard Commercial Specification | Engineering & Operational Function |
|---|---|---|
| Pressure Shell | AISI 304 or 316L Stainless Steel | ASME-certified containment of high-pressure reactants |
| Agitation System | VFD-driven motor with turbine/anchor impellers | Accelerates mass transfer and ensures uniform mixing |
| Heat Transfer Jackets | Half-pipe or dimple thermal circulation jackets | Regulates exothermic and endothermic reaction temperatures |
| Shaft Sealing | Sanitary mechanical seal with barrier fluid | Maintains pressure boundaries under dynamic rotation |
| Internal Finish | Electropolished ($\text{Ra} \le 0.4\ \mu\text{m}$) | Prevents chemical accumulation and aids CIP cleaning |
A: A stainless steel reactor vessel provides a secure, pressure-rated, temperature-controlled environment designed to mix chemical reactants and facilitate controlled chemical synthesis safely at scale.
A: AISI 316L contains molybdenum, which grants it significantly superior resistance to pitting corrosion from chlorides, aggressive solvents, and strong mineral acids compared to standard AISI 304.
A: They utilize built-in thermal jackets (such as half-pipe or dimple jackets) that circulate chilled water or thermal oil around the vessel shell to absorb excess heat instantly and prevent thermal runaway.
A: Industrial reactor vessels are typically designed and certified under international codes such as the ASME Boiler and Pressure Vessel Code (BPVC) Section VIII, Division 1.
