Sodium Chloride Recrystallization Unit Principles Technology and High-Purity Salt Purification
High-Purity Sodium Chloride Recrystallization Unit
,Industrial Sodium Chloride Recrystallization Unit
In chlor-alkali electrolysis, pharmaceutical manufacturing, fine chemical synthesis, and high-end food processing, standard crude industrial salt contains trace impurities—such as calcium, magnesium, sulfates, and heavy metals—that can poison catalysts, degrade electrolysis membranes, or compromise product quality. To eliminate these contaminants, a sodium chloride recrystallization unit is deployed as an advanced refining system.
By redissolving crude salt or high-TDS salt cakes, pretreating the resulting brine to remove divalent ions, and executing controlled evaporative crystallization, a sodium chloride recrystallization unit delivers ultra-pure, pharmaceutical- or industrial-grade sodium chloride (NaCl) crystals.
The recrystallization workflow relies on selective solubility and fractional crystallization mechanics:
- Brine Reconstitution: Crude salt solids or concentrated industrial salt cakes are dissolved in pure condensate or softened water to form a saturated feed brine solution.
- Chemical Pretreatment & Impurity Removal: Before entering the crystallizer, the liquid brine undergoes chemical precipitation (using sodium carbonate and sodium hydroxide) to scrub out residual calcium (Ca2+) and magnesium (Mg2+) ions, followed by filtration.
- Controlled Evaporative Crystallization: Operating via forced circulation evaporation, the purified brine is heated under controlled pressure. As water vaporizes, pure sodium chloride crystals precipitate out of solution while soluble impurities remain dissolved in the purge mother liquor.

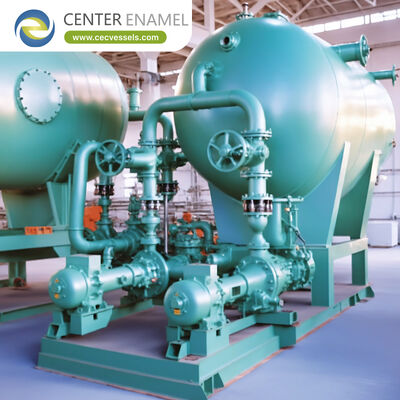

A high-performance industrial sodium chloride recrystallization plant integrates several precise mechanical and separation stages:
- MVR Evaporation Recrystallizer: Utilizing a mechanical vapor recompression compressor, secondary vapor is compressed and recycled as the primary heating source, minimizing operating steam consumption.
- Forced Circulation Pumps: High-velocity axial pumps drive the brine through tubular heat exchangers, preventing scaling and ensuring uniform crystal growth.
- Mother Liquor Purge and Bleed: To prevent the accumulation of secondary soluble salts (like chlorides of potassium or magnesium) in the loop, a controlled bleed stream is continuously purged from the system.
- Solid-Liquid Separation and Drying: The purified crystal slurry is discharged into automated centrifuges to separate the solid salt cake, which is then dried in a fluid bed dryer to yield high-purity commercial salt.
| Parameter / Feature | Crude Sodium Chloride Crystallization | Sodium Chloride Recrystallization Unit |
|---|---|---|
| Feedstock Material | Raw industrial wastewater, mining brine, or sea salt | Redissolved crude salt cake / industrial salt |
| Purity Target (NaCl) | Standard industrial grade (95% - 98%) | Ultra-high purity (99.2% - 99.9%) |
| Primary Impurity Level | High (contains Ca, Mg, SO4, and trace metals) | Extremely low (trace contaminants scrubbed via pretreatment) |
| Primary Application | General industrial use and ZLD salt disposal | Chlor-alkali electrolysis, pharmaceuticals, and fine chemicals |
| Metallurgy Requirement | Standard stainless steels (304/316L) | Advanced corrosion-resistant alloys (Titanium, 2205/2507 Duplex) |
Q: What is a sodium chloride recrystallization unit?
A: It is an advanced industrial purification and crystallization system designed to redissolve, pretreat, and recrystallize crude salt brines, producing ultra-high purity sodium chloride free of calcium, magnesium, and sulfate impurities.
Q: Why is recrystallization necessary for chlor-alkali and pharmaceutical industries?
A: Trace impurities in standard crude salt can foul ion-exchange membranes in chlor-alkali electrolysis cells or contaminate chemical reactions; recrystallization ensures strict chemical purity required for sensitive industrial applications.
Q: How are calcium and magnesium removed during the recrystallization process?
A: Before entering the evaporative crystallizer, the reconstituted brine undergoes chemical precipitation dosing (adding reagents like sodium carbonate and sodium hydroxide) to settle out divalent ions, followed by mechanical filtration.
Q: What materials of construction are used in high-purity salt recrystallization plants?
A: Because hot, concentrated chloride brines are highly corrosive, these units utilize advanced corrosion-resistant metallurgy, including titanium heat exchangers, high-grade stainless steels, and nickel-based superalloys.
