What Is a Jacketed Mixing Tank? Design, Working Principles, and Industrial Applications

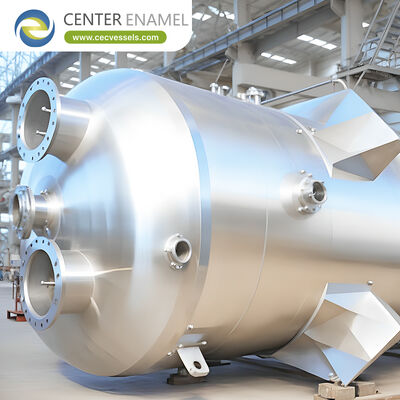

A jacketed mixing tank is an advanced industrial vessel featuring a double-walled construction that encases an inner processing chamber within an outer shell. This specialized outer space—known as the jacket—allows heating or cooling media (such as steam, hot water, chilled water, or thermal oil) to circulate around the vessel without coming into direct contact with the process materials. By combining mechanical agitation with precise indirect thermal regulation, jacketed mixing tanks ensure uniform temperature distribution, optimal viscosity control, and consistent chemical or physical transformation across demanding industrial applications.

The core functionality of a jacketed mixing tank revolves around simultaneous mass transfer and indirect heat exchange:

1. Thermal Circulation: Heating or cooling media flows continuously through the jacket cavity, transferring thermal energy through the inner wall via conduction.

2. Mechanical Agitation: A top-mounted motor drives an internal agitator shaft fitted with specialized impellers, anchors, or scraper blades to stir the product.

3. Viscosity Management: As thermal energy is absorbed or released, the agitator ensures that temperature gradients are eliminated, preventing localized overheating or freezing of sensitive formulations.

Depending on operating pressure and heat transfer requirements, jacketed mixing vessels utilize several distinct jacket configurations:

• Conventional Jacket: A complete outer shell welded around the inner vessel, providing a large volume for steam or water circulation. Ideal for low-to-moderate pressure heating and cooling.

• Dimple Jacket: Features a patterned outer sheet spot-welded to the inner wall, creating a turbulent flow matrix that maximizes heat transfer efficiency under moderate pressures.

• Half-Pipe Jacket: Constructed from split pipe coils welded helically around the exterior of the inner tank body, engineered specifically for high-pressure, high-temperature thermal fluids.

• Pharmaceutical Manufacturing: Compounding active pharmaceutical ingredients (APIs), ointments, and syrups that require strict thermal profiles and sterile conditions.

• Cosmetic Production: Blending emulsions, face creams, lotions, and gels where temperature control dictates final product texture, stability, and viscosity.

• Food and Beverage Processing: Melting and tempering chocolate, preparing sugar syrups, cooking sauces, and pasteurizing dairy items without burning product against hot vessel walls.

• Chemical Synthesis: Managing exothermic or endothermic chemical reactions safely by removing excess heat or supplying continuous thermal energy.

Q: What is a jacketed mixing tank?

A: A jacketed mixing tank is a double-walled industrial vessel that combines mechanical agitation with an outer thermal jacket, allowing heating or cooling fluids to regulate the temperature of the product indirectly.

Q: Why is indirect heating preferred in a jacketed mixing tank?

A: Indirect heating prevents process ingredients from coming into direct contact with extreme heat sources, eliminating product scorching, burning, or degradation—which is critical when processing sensitive items like pharmaceuticals and food products.

Q: What types of fluids can be circulated through a thermal jacket?

A: Depending on the required temperature range, facilities circulate low-pressure steam, hot water, chilled water, glycol solutions, or specialized heat transfer oils through the jacket cavity.

Q: When should a facility choose a half-pipe jacket over a conventional jacket?

A: A half-pipe jacket is chosen when operating under high pressures or using high-temperature thermal oils, as the helical pipe design offers superior structural containment and fluid velocity.
