A chemical storage tank or vessel is an engineered industrial containment system designed to safely store, process, mix, and manage reactive, corrosive, or high-purity chemical substances. Unlike standard commercial water tanks, these specialized units must withstand severe chemical interactions, variable internal pressures, and demanding environmental conditions without structural compromise.
From municipal water treatment plants and pharmaceutical laboratories to heavy chemical processing facilities, chemical storage tanks and process vessels form the backbone of safe industrial fluid management.
Chemical containment equipment is categorized based on its structural orientation, operational pressure, and primary material composition:
- Vertical Cylindrical Tanks: Ideal for maximizing floor space while providing massive volumetric capacity for bulk chemical storage.

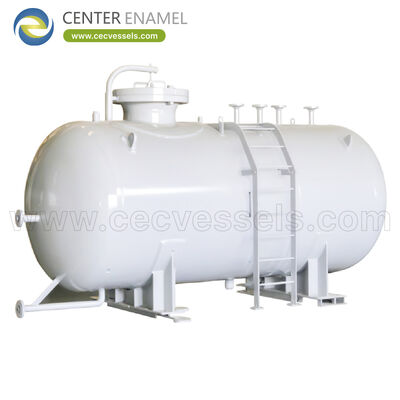

- Horizontal Tanks: Frequently deployed when vertical clearance is restricted, or when vessels need to be mounted on mobile transport skids.
- Atmospheric Tanks: Designed to operate at or near ambient pressure, primarily handling stable or low-volatility liquid chemicals.
- Pressure Vessels: Heavy-duty, closed containment systems engineered in accordance with rigorous codes (such as ASME Section VIII) to safely hold volatile substances under elevated internal pressures.
Selecting the correct structural material is the most critical factor in preventing leaks, structural failure, and catastrophic chemical reactions.
Composed of iron-chromium alloys (such as Grades 304L and 316L, enhanced with molybdenum), stainless steel provides exceptional durability and a self-healing passive oxide layer.
- Advantages: Non-porous, highly resistant to high operating temperatures, and ideal for pharmaceuticals, high-purity solvents, and organic chemicals.
- Limitation: Vulnerable to strong reducing acids (like hydrochloric acid) that can strip the protective passive layer.
Rotational-molded polymer tanks where molecular chains are chemically bonded during production.
- Advantages: Excellent corrosion resistance against harsh acids (such as sulfuric and hydrochloric acid) and caustics, combined with lightweight durability and seamless construction.
- Limitation: Unsuited for high-temperature thermal processes or long-term storage of volatile organic solvents.
Composite structures formed by layering fiberglass fabric with chemically resistant thermosetting resins.
- Advantages: Exceptional strength-to-weight ratio, capable of custom fabrication into massive industrial capacities for outdoor chemical processing environments.
- Limitation: Requires strict quality control during manufacturing to avoid internal micro-defects or long-term delamination.
Constructed from iron-carbon alloys, offering high structural strength and rigidity.
- Advantages: Highly cost-effective for high-capacity holding of non-corrosive hydrocarbons, fuels, and select industrial lubricants.
- Limitation: Highly prone to rust and oxidation when exposed to moisture or corrosive chemicals unless heavily lined or treated.
| Tank Material | Primary Chemical Suitability | Temperature Tolerance | Relative Capital Cost | Expected Lifespan |
|---|---|---|---|---|
| XLPE Plastic | Aggressive acids, caustics, water treatment agents | Low to Moderate ($50\degree\text{C}$ max) | Low | 10–15 Years |
| FRP (Composite) | Slurries, harsh effluents, corrosive salts | Moderate ($80\degree\text{C}$ max) | Moderate to High | 15–25 Years |
| Stainless Steel (316L) | Organic solvents, pharmaceuticals, high heat | High ($200\degree\text{C}+$) | High | 20+ Years |
| Carbon Steel | Petroleum products, non-corrosive oils, fuels | High ($300\degree\text{C}+$) | Moderate | 15–20 Years |
- Chemical Compatibility Testing: Operators must cross-reference chemical concentration, specific gravity, and operating temperatures with the material manufacturer's compatibility data.
- Secondary Containment: Regulatory standards mandate secondary containment structures—such as double-walled tanks or exterior concrete bund walls—capable of holding at least $110\%$ of the primary tank's maximum volume.
- Pressure Relief and Venting: Adequate venting prevents vacuum collapse during fluid extraction and over-pressurization during filling cycles.
Q: What is the difference between a chemical storage tank and a chemical process vessel?
A: A storage tank is primarily designed for holding bulk raw materials or finished products over time. A chemical process vessel (such as a reactor or mixing vessel) is engineered with internal agitators, heating/cooling jackets, and specialized controls to actively facilitate chemical reactions or blending.
Q: Why is specific gravity critical when specifying a chemical tank?
A: Specific gravity measures a liquid's density relative to water. Chemicals with a high specific gravity are much heavier than water, placing intense hydrostatic pressure on the lower walls of the tank, which requires specialized wall thickness and structural reinforcement.
Q: Can stainless steel tanks be used to store all types of acids?
A: No. While stainless steel handles many organic chemicals and mild solutions effectively, strong reducing acids—such as hydrochloric acid—will aggressively attack and destroy its passive chromium oxide layer, leading to rapid pitting and failure.
Q: What regulatory codes govern industrial chemical pressure vessels?
A: Industrial pressure vessels are typically designed, fabricated, and tested in accordance with strict international engineering standards, such as the ASME Boiler and Pressure Vessel Code (Section VIII) or EN 13445, ensuring structural reliability under high pressure.
