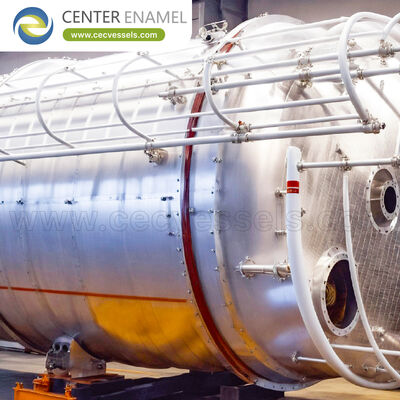

What is a Multi-Chamber Tank?
| MOQ: | 1 Sets |
| Price: | 10000 USD |
| Delivery Period: | 2 months |
| Payment Method: | L/C,T/T |
| Supply Capacity: | 200 sets / days |
multi-chamber mixing tank
,industrial mixing vessel
,multi-compartment storage tank
What is a Multi-Chamber Tank?
A multi-chamber tank (also known as a multi-compartment tank) is a specialized storage vessel internally divided by watertight partitions or baffles to create two or more independent storage zones within a single outer shell.
Unlike a standard single-wall tank, a multi-chamber tank allows operators to store different liquids, manage separate batches, or facilitate sequential processing stages (such as fermentation followed by maturation) all within the same physical footprint. This design is a critical engineering solution for facilities where floor space is at a premium or where process efficiency requires the consolidation of multiple liquid streams.
1. Engineering Anatomy
The structure of a multi-chamber tank is defined by its internal independence. While the outer shell provides the structural integrity, the "chambering" allows each section to operate as an isolated vessel.
-
Internal Partitions: These are full-height, welded bulkheads that physically separate the interior. In high-purity industries like food and pharmaceuticals, these welds are typically ground and polished to prevent "dead zones" where bacteria could accumulate.
-
Independent Access: Each chamber is usually equipped with its own dedicated inlet, outlet, venting, and level-monitoring instrumentation.
-
Structural Reinforcement: Because internal pressures may vary if one chamber is empty while the adjacent one is full, the partitions are often engineered with specific bracing to withstand differential pressure loads.
2. Multi-Chamber vs. Multi-Layer: A Critical Distinction
In industrial searches, "multi-chamber" is frequently confused with "multi-layer." It is vital to distinguish these technologies to ensure you are sourcing the correct equipment:
| Feature | Multi-Chamber (Compartmented) | Multi-Layer (Wall Technology) |
|---|---|---|
| Primary Goal | Storage separation: Holding different products in one vessel. | Performance enhancement: Protecting water quality/temperature. |
| Construction | Internal partitions/bulkheads. | Fused polymer layers (e.g., UV-block + Insulation). |
| Application | Batch processing, chemical dosing, wine/beverage storage. | Residential/commercial water storage, preventing algae. |
| Independence | Chambers function as isolated units. | The whole tank functions as a single unit. |
3. Engineering & Operational Benefits
Engineers specify multi-chamber tanks to solve specific logistical challenges:
-
Footprint Optimization: In urban industrial settings or congested plant floors, installing one multi-chamber tank is often significantly more cost-effective than installing a "tank farm" of smaller, individual vessels.
-
Batch Consistency: For wineries and craft beverage producers, this allows for the "vertical integration" of a process. For example, the top chamber can be used for initial fermentation, and the lower chamber for aging, reducing the need for costly fluid transfer piping.
-
Reduced Piping Infrastructure: By consolidating multiple storage needs into one vessel, the complexity of the facility's piping, valve manifolds, and CIP (Clean-In-Place) circuits is drastically reduced.
4. Operational Math: Compartment Capacity Planning
When designing multi-chamber systems, engineers must calculate the volume of each partition relative to the total vessel height. If the vessel is a simple cylinder, the volume per chamber
Interactive Chamber Capacity Calculator
Use this tool to determine how much volume you can allocate to individual chambers based on your total tank dimensions and partition heights.
5. Frequently Asked Questions (FAQ)
Q: Can I store incompatible chemicals in adjacent chambers?
A: Generally, no. While the partitions are watertight, a failure in the weld or a shared venting system could lead to cross-contamination or dangerous reactions. Always consult a chemical compatibility engineer before mixing storage contents in a multi-chamber vessel.
Q: Are multi-chamber tanks harder to clean (CIP)?
A: Yes, they require more complex CIP (Clean-In-Place) programming. Each chamber must have its own dedicated spray ball or cleaning nozzle, and the control system must be able to cycle through each chamber independently to ensure 100% surface coverage.
Q: What is the maximum number of chambers possible?
A: It is technically possible to have many chambers, but practical limits usually cap it at 4 to 6. Beyond this, the complexity of the piping and the structural reinforcement required for the partitions makes individual tanks more cost-effective.
