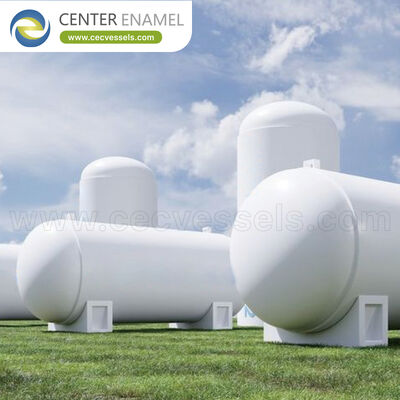

A horizontal storage tank is a cylindrical vessel oriented with its longitudinal axis parallel to the ground. Unlike vertical tanks that rely on height to maximize storage capacity within a small footprint, horizontal tanks are designed for applications where vertical clearance is limited, or where ease of maintenance and accessibility are the primary operational priorities.
These tanks are widely used for the storage of fuels, chemicals, water, and process fluids in facilities ranging from small commercial fuel stations to complex chemical processing plants. Because they rest on their sides, they require specific structural engineering—namely "saddles"—to distribute the weight of the liquid evenly and prevent the shell from buckling or deforming under the gravitational load.
The architecture of a horizontal tank is dictated by how it interacts with gravity. Because the tank is supported at two or more points, it behaves like a beam rather than a pressurized pillar.
- Saddles (Supports): The most critical component. Horizontal tanks must sit on cradle-like supports (saddles) that cradle the bottom curvature of the shell. These supports prevent stress concentrations that could cause the tank to rupture or crease.
- Shell: The main cylindrical body. In horizontal applications, the shell must be thicker at the bottom than a vertical tank of the same capacity to resist the bending forces applied at the support locations.
- Internal Baffles: For tanks transporting liquids or those installed in areas with seismic activity, internal baffles are often welded inside to prevent "sloshing," which creates dangerous dynamic forces that could shift the tank off its supports.
- Nozzle Orientation: Unlike vertical tanks where nozzles are often at the bottom, horizontal tanks frequently feature nozzles and manways on the top or upper sides to allow for easy access and minimize leak risks at the lowest, highest-pressure points.
Calculating the volume of a horizontal tank is significantly more complex than a vertical tank because the cross-sectional area of the fluid changes as the tank fills up. The total volume (V) of a horizontal tank with dished heads is:
However, calculating the volume of fluid at a specific height (h) requires solving for the circular segment area, which is essential for accurate level monitoring and inventory control.
Use the simulator below to calculate the total capacity of a horizontal tank and estimate the volume based on the liquid level. This is critical for preventing overfill and managing inventory in horizontal vessel systems.
Selecting the right orientation depends on site constraints, fluid properties, and maintenance strategy.
| Feature | Horizontal Storage Tank | Vertical Storage Tank |
|---|---|---|
| Footprint Requirement | Large (requires more ground area) | Small (efficient for high volumes) |
| Vertical Clearance | Low (ideal for indoor or under-structure) | High (requires tower space) |
| Maintenance Access | Easy (valves/manways at ground level) | Difficult (often requires ladders/platforms) |
| Structural Design | Complex (requires saddles/cradles) | Simple (rests on a flat foundation) |
| Typical Use | Mobile fuel, localized chemical dosing | Bulk liquid storage, large inventories |
When designing or procuring a horizontal tank, keep these three engineering factors in mind:
- Saddle Placement: The location of the saddles relative to the tank heads is mathematically optimized to balance the bending stress. Placing saddles too far apart or too close to the heads can cause premature fatigue failure of the shell.
- Venting: Because horizontal tanks often have a large surface area for liquid evaporation, they require properly sized pressure/vacuum relief vents. A poorly vented horizontal tank can easily collapse under vacuum if pumped out too quickly.
- Internal Drainage: To ensure the tank can be fully emptied (and to avoid creating "dead legs" for chemical contamination), the tank should be installed with a slight pitch (slope) of 1–2% toward the drain nozzle.
Q: Can horizontal tanks be used for high-pressure storage?
A: Generally, no. Horizontal cylindrical shapes are excellent for atmospheric pressure, but as internal pressure rises, the stresses on the flat sides of the cylinder become difficult to manage without extremely thick steel. Spherical tanks are preferred for high-pressure gas storage.
Q: What is a "Multi-Compartment" horizontal tank?
A: Often seen in fuel delivery trucks or industrial chemical blending, these tanks have internal walls (bulkheads) that divide the cylinder into separate compartments, allowing the same vessel to store multiple types of fluids simultaneously.
Q: Are horizontal tanks prone to corrosion?
A: The most common corrosion point is the area where the tank sits on the support saddles. Water can become trapped between the steel shell and the saddle, leading to "crevice corrosion." Engineers prevent this by using wear pads (extra steel plates) between the shell and the saddle and by sealing the interface.
