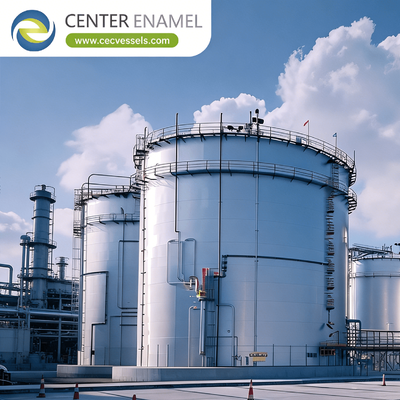

What is a Stainless Steel Tank?

A stainless steel tank is a highly engineered storage or processing vessel fabricated from chromium-alloyed steel. These containers are designed to hold, mix, heat, cool, or transport a wide variety of substances—ranging from basic municipal water to hazardous chemicals, high-purity pharmaceutical compounds, and dairy products.

The primary reason industries rely heavily on stainless steel tanks is their inherent resistance to corrosion, rust, and chemical degradation. Unlike standard carbon steel, which oxidizes rapidly when exposed to moisture, stainless steel contains a minimum of 10.5% chromium. This element reacts naturally with ambient oxygen to form an invisible, self-healing, microscopic layer of chromium oxide across the surface, shielding the underlying steel from environmental and chemical attack.

While a tank may appear to be a simple metal cylinder from the outside, its structural engineering must account for immense internal hydrostatic pressures, environmental loads (such as wind and seismic activity), and operational demands.

• The Shell: The main cylindrical body of the tank. It is rolled from heavy gauge stainless steel plates and welded along structural seams.

• The Heads (End Caps): The top and bottom closures of the tank. Depending on the application, heads can be flat (for non-pressurized tanks), conical (for easy drainage of sludges or solids), or dished/torispherical (for holding internal pressure or vacuum safely).

• Manways and Nozzles: Reinforced opening ports that allow workers entry for internal maintenance or serve as connection points for piping, valves, and level-monitoring instrumentation.

• The Jacket (Optional): A secondary outer layer wrapped around the main shell. Hot or cold fluids (like steam or glycol) are pumped through this jacket to precisely control the temperature of the fluid stored inside the tank.

When a stainless steel tank is filled with liquid, the fluid exerts a outward force against the walls known as hydrostatic pressure. This pressure is lowest at the top liquid level and reaches its maximum intensity at the absolute bottom of the tank.

To determine the minimum structural wall thickness (t) required to prevent the tank from rupturing or buckling at the base, process engineers calculate the hoop stress using a variation of the classical thin-walled cylinder equation:

Because pressure scales directly with fluid height (H), massive industrial tanks are often engineered with "tapered" shells—meaning the steel plates at the base of the tank are significantly thicker than the plates near the roof.

To observe how liquid density, tank dimensions, and safety margins dictate the material requirements for an industrial stainless steel tank, adjust the parameters below. This interactive engineering tool calculates the maximum bottom pressure and determines the required steel plate thickness based on standard material limits.

Not all stainless steel is identical. Choosing the correct alloy variant drastically impacts both the upfront capital cost of the system and its operational lifespan. The two most common options utilized in manufacturing are:

When procurement managers audit containment assets, they typically compare stainless steel against carbon steel (lined with epoxy) or industrial plastics like High-Density Polyethylene (HDPE) and Fiberglass Reinforced Plastic (FRP). Stainless steel systematically edges out these materials across several critical areas:

1. Temperature Tolerance: Plastics begin to structurally weaken or warp at temperatures exceeding 60°C to 80°C. Stainless steel maintains structural integrity at temperatures well over 500°C, rendering it essential for boiling, sterilization, or exothermic chemical processing.

2. Longevity and Asset Lifecycle: While plastic tanks have an average industrial lifespan of 10 to 15 years due to UV degradation and chemical embrittlement, a properly passivated stainless steel tank easily operates for 30 to 50+ years with minimal maintenance.

3. Hygiene and Sanitation: Stainless steel can be polished to an incredibly smooth mirror finish (measured by low Surface Roughness, or Ra). This smooth surface prevents bacteria, biofilm, or chemical cross-contaminants from embedding in microscopic crevices, allowing for rapid execution of automated Clean-In-Place (CIP) sanitization cycles.

Q: Why do stainless steel tanks sometimes rust at the welded seams?

A: This occurs due to a phenomenon called carbide precipitation or "weld decay." When stainless steel is heated during welding, chromium can bind with carbon, leaving localized zones with less than the required 10.5% chromium needed to form the protective oxide layer. To prevent this, engineers specify low-carbon variants of the alloys, designated by an "L" (e.g., 304L or 316L).

Q: Can a stainless steel tank be used under a vacuum?

A: Yes, but it must be structurally reinforced. While tanks are excellent at holding internal pressure, external atmospheric pressure can easily collapse or "implode" a thin-walled tank under vacuum. Vacuum-rated tanks are built with internal or external structural reinforcement rings (stiffeners) and thick dished heads.

Q: What does "passivation" mean for a new tank?

A: Passivation is the final chemical treatment applied to a tank after fabrication. The vessel is rinsed with a mild nitric or citric acid solution, which dissolves any trace iron particles left behind by manufacturing tools. Stripping away this free iron allows the chromium beneath it to react uniformly with oxygen, creating a perfectly continuous, rust-resistant oxide barrier.
