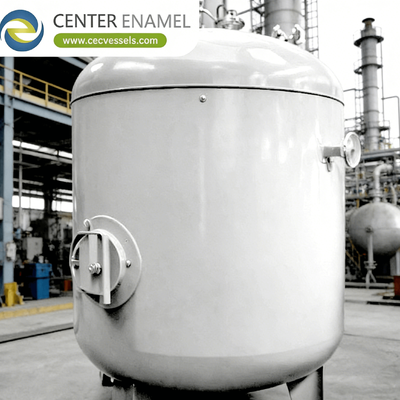

What is a Complete Mix Reactor (CMFR/CSTR)?
| MOQ: | 1 Sets |
| Price: | 10000 USD |
| Delivery Period: | 2 months |
| Payment Method: | L/C,T/T |
| Supply Capacity: | 200 sets / days |
Complete Mix Reactor CMFR
,Complete Mix Reactor CSTR
,Mixing Vessel Reactor
A Complete Mix Reactor (CMFR), more widely known in engineering as a Continuous Stirred-Tank Reactor (CSTR), is an industrial vessel design where reactants are continuously fed, blended to uniformity, and withdrawn in a continuous stream.
The "complete mix" designation refers to the assumption of perfect mixing. In this idealized state, the concentration, temperature, and chemical composition of the fluid are identical at every point within the tank and are equal to the properties of the effluent (the exit stream). It is a steady-state process, meaning that properties within the reactor do not change over time.
To design a CMFR, engineers rely on the assumption that the mixing time is instantaneous compared to the reaction time.
-
Uniformity: Because the contents are mixed perfectly, there are no "spatial gradients." You won't find a zone where the reaction is faster or slower than elsewhere.
-
Steady-State Operation: Unlike a batch reactor, which starts empty and ends full, a CMFR operates at a constant volume (V). The inflow (Qin) is equal to the outflow (Qout), keeping the fluid level stable.
To model a CMFR, we utilize the mass balance equation. Because the system operates at steady-state, the accumulation of reactants within the vessel is zero.
Engineers select reactor types based on the required conversion efficiency and the nature of the reaction.
| Reactor Type | Operation | Mixing | Concentration Profile |
|---|---|---|---|
| CMFR / CSTR | Continuous | Perfect (Uniform) | Constant throughout |
| Batch Reactor | Cyclic | Perfect (Uniform) | Changes with time |
| Plug Flow (PFR) | Continuous | None (Radial only) | Changes with distance |
Why is the Complete Mix Reactor the industry standard for many processes?
-
Thermal Stability: Because the reactants are diluted in a large volume of "already reacted" bulk fluid, highly exothermic reactions are easier to control. The heat generated is spread throughout the entire vessel, preventing "hot spots" and reducing the risk of thermal runaway.
-
Continuous Throughput: Unlike batch reactors, which require downtime for cleaning, filling, and discharging, a CMFR can run for weeks or months, maximizing production volume.
-
Process Consistency: Once steady-state is reached, the product quality is highly consistent, which is critical for standardized manufacturing like wastewater treatment or bulk chemical synthesis.
Q: Is "perfect mixing" actually possible?
A: "Perfect mixing" is a theoretical ideal. In the real world, impellers cannot achieve infinite speed. However, for engineering design, assuming a CMFR provides a robust approximation. If the agitator speed is sufficiently high (high Reynolds number), the deviation from ideal mixing is negligible.
Q: What happens if the mixing speed drops?
A: If the mixing intensity is too low, the reactor develops "dead zones" or "short-circuiting" (where fluid passes through without mixing). This causes the reaction efficiency to drop significantly, and in biological reactors (like wastewater), it can lead to sludge buildup.
Q: Can a CMFR handle variable loads?
A: Yes, CMFRs are excellent for load fluctuations. Because the vessel acts as a large buffer, it can absorb changes in influent concentration, making the output much more stable than a Plug Flow Reactor.
To help me tailor this to your specific project needs, are you looking to apply the CMFR model to an environmental (wastewater) process or a chemical manufacturing synthesis system?
