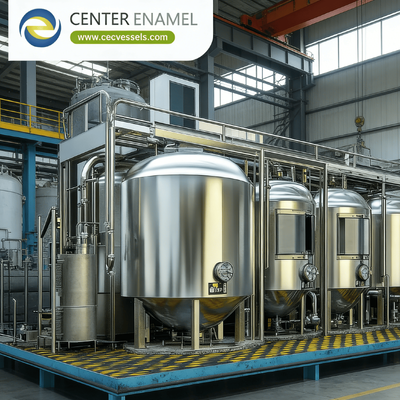

What is a Completely Mixed Batch Reactor (CMBR)?
| MOQ: | 1 Sets |
| Price: | 10000 USD |
| Delivery Period: | 2 months |
| Payment Method: | L/C,T/T |
| Supply Capacity: | 200 sets / days |
completely mixed batch reactor
,CMBR mixing vessel
,batch reactor mixing equipment
A Completely Mixed Batch Reactor (CMBR)—often referred to as an Ideal Batch Reactor—is a chemical reactor model where reactants are charged into a closed vessel, mixed uniformly, allowed to react for a specific duration, and then discharged.
In engineering and chemical kinetics, the term "completely mixed" is an idealization. It assumes that at any given moment, the concentration and temperature of the reactants are uniform throughout the entire volume of the vessel. There are no spatial gradients; the composition depends entirely on time, not on the position within the tank.
To model a batch reactor, engineers assume "perfect mixing." This means the time required to blend the reactants is negligible compared to the time required for the chemical reaction to occur.
In this ideal state:
Concentration (C): C is the same at every point in the reactor
Temperature (T): The thermal energy is distributed instantly and uniformly, preventing localized "hot spots" that could alter reaction kinetics.
Mass Transfer: There are no resistance zones; every molecule of reactant has an equal probability of colliding with another.
Because a batch reactor is a closed system (no matter enters or leaves during the reaction), the mass balance simplifies significantly. We use the general mole balance equation:
If we define concentration as (assuming constant volume), the design equation becomes
The distinction between a CMBR and continuous reactors (like CSTRs or PFRs) is critical for process selection.
| Feature | Batch Reactor (CMBR) | CSTR (Continuous) | PFR (Plug Flow) |
| Operation | Unsteady-state (Time-dependent) | Steady-state | Steady-state |
| Mixing | Uniform (Perfect) | Uniform (Perfect) | None (Spatial gradient) |
| Throughput | Low (Small scale) | High (Large scale) | High (Large scale) |
| Best For | Specialty chemicals, Pharma | Bulk chemicals | Fast gas-phase reactions |
Despite the efficiency gains of continuous flow, the Completely Mixed Batch Reactor remains the industry standard for specific applications:
Flexibility: A single reactor can be used to produce multiple different products (e.g., different pharmaceutical grades or specialized polymers) simply by cleaning the vessel between batches.
Low Capital Cost: For low-volume, high-value products, the cost of installing complex continuous flow piping and sensor arrays is unjustified. A batch kettle is simple and robust.
Extended Reaction Times: If a chemical reaction requires hours or days to complete, trying to force it through a continuous pipeline (PFR) would require prohibitively long equipment. A CMBR allows the reaction to sit until the desired conversion is achieved.
Q: Is "perfect mixing" actually possible?
A: No, perfect mixing is a theoretical limit. In practice, all industrial reactors have slight gradients. However, for most chemical engineering calculations, assuming a CMBR (perfect mixing) provides a very accurate approximation that simplifies the design of the agitator and the vessel.
Q: What is the biggest challenge in operating a CMBR?
A: The downtime between batches. Since the reactor must be emptied, cleaned, and recharged, the "non-productive" time is significant. This is why facilities often have multiple batch reactors operating in parallel (staggered cycles) to ensure a semi-continuous output.
Q: How do I calculate the time required for a reaction?
A: You integrate the design equation: This tells you exactly how long to hold the reactants in the vessel to reach your target conversion.
