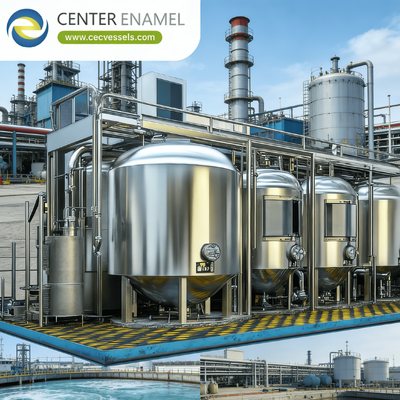

What is an Industrial Mixing Reactor?

An industrial mixing reactor (often called an agitated reactor or stirred-tank reactor) is a sophisticated pressure vessel engineered to facilitate chemical reactions while simultaneously maintaining precise physical homogeneity.

Unlike a simple mixing tank, which focuses on physical blending (like emulsions or suspensions), a reactor is designed to handle reaction kinetics. It manages the heat of a reaction (exothermic or endothermic), mass transfer rates, and internal pressure, ensuring that chemical components transform into a desired product safely and efficiently.

To perform a chemical reaction at scale, the vessel must be more than a container. It is a highly instrumented process unit.

• The Reaction Chamber: Engineered for specific pressure ratings (ASME codes). It is typically cylindrical with dished heads for structural integrity.

• The Agitator: The "engine" of the reactor. The impeller geometry (e.g., turbine, anchor, or helical ribbon) is selected specifically to maximize mass transfer, ensuring that reactants meet at a molecular level.

• Thermal Management (Jacket/Coils): Most reactors include a dimple jacket or half-pipe coil that circulates heating or cooling media. This is essential for controlling the rate of reaction.

• Internal Internals: Baffles, spargers (for gas-liquid reactions), and thermowells that provide real-time data on temperature and pressure.

The primary function of a mixing reactor is to balance the reaction rate with the heat transfer capacity of the vessel. The efficiency of this process is governed by the heat transfer equation

If the reactor's agitator provides high-intensity mixing, it increases $U$ (the heat transfer coefficient), allowing the vessel to remove or add heat faster, which enables tighter control over the reaction temperature.

While the terms are often used interchangeably, there is a critical engineering distinction:

Choosing the right reactor requires analyzing your chemical process requirements:

1. Material Compatibility: You must choose a material that will not corrode under your specific chemical conditions. 316L Stainless Steel is standard, but Hastelloy or glass-lined steel is required for aggressive acidic environments.

2. Agitator Type: You must match the impeller to the reaction. Low-viscosity reactions often use turbine impellers for high-shear mass transfer; high-viscosity polymerizations require high-torque anchors.

3. Pressure/Vacuum Rating: Does the reaction require high pressure to force gas-liquid absorption, or a vacuum to remove volatile byproducts? The vessel must be certified for the specific pressure rating of the process.

Q: What is a "runaway reaction" and how does the reactor prevent it?

A: A runaway reaction occurs when the heat generated by a chemical reaction exceeds the cooling capacity of the reactor, leading to an exponential increase in temperature and pressure. Reactors prevent this via redundant cooling systems, high-speed agitation (to maximize heat transfer), and emergency pressure relief systems.

Q: Can I use the same reactor for different chemical processes?

A: Only if the reactor is designed for "Validation." This requires specific clean-in-place (CIP) capabilities, no dead zones in the piping, and surface finishes that prevent chemical carryover between batches.

Q: Why are baffles critical in a reactor?

A: In a reactor, you need "turbulent" flow to ensure every molecule of reactant interacts with another. Without baffles, the fluid would rotate as a "solid mass" (vortexing), resulting in stagnant areas where the reaction doesn't occur, leading to low yield and potential safety hazards.
