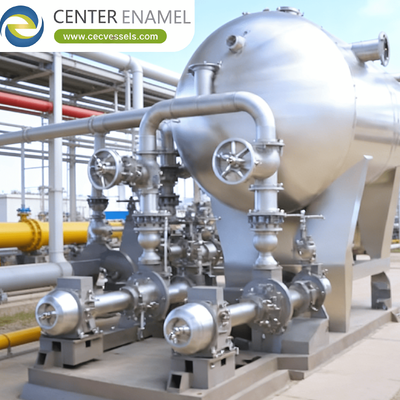

Core Components of a Stainless Steel Chemical Reactor

A stainless steel chemical reactor is far more than a simple storage vessel; it is a complex, precision-engineered system designed to control chemical, thermal, and physical variables. Whether used in pharmaceutical synthesis, petrochemical refining, or food production, the effectiveness of a reactor depends on the synergy of its core components.

Understanding these subsystems is essential for ensuring process safety, maximizing reaction yields, and maintaining compliance with international engineering standards like ASME Section VIII.

1. Primary Subsystems

An industrial reactor is typically composed of the following five critical functional areas:

A. The Vessel Shell & Heads

The "body" of the reactor. It is designed to hold the reactants and withstand the internal pressure of the process.

• Material: Usually fabricated from 304 or 316L stainless steel.

• Heads: Can be torispherical, ellipsoidal, or hemispherical, chosen based on the pressure rating and the need for efficient drainage.

B. Thermal Management System (The Jacket)

The jacket is the secondary outer shell that allows for precise temperature control. It facilitates the heat transfer required for exothermic or endothermic reactions.

• Types: * Conventional Jacket: Simple annular space.

  • Dimple Jacket: Efficient, lightweight, and ideal for medium pressures.

  • Half-Pipe Coil: Welded spirals optimized for high-pressure thermal media and turbulent flow.

C. Agitation System

The agitator is the mechanical heart of the reactor, ensuring uniform concentration and temperature throughout the vessel.

• Motor & Gearbox: Provide the torque required to rotate the shaft.

• Impeller: The "mixing" blades. The geometry is specific to the application:

  • Turbine: High-shear mixing (good for gas dispersion).

  • Anchor: High-viscosity mixing (good for heat transfer at the walls).

  • Helical Ribbon: Ideal for extremely viscous, non-Newtonian fluids.

D. Sealing Mechanism

Mechanical seals are required where the agitator shaft enters the vessel to prevent hazardous leaks and maintain internal pressure or vacuum. High-integrity double mechanical seals are standard in regulated industries to prevent cross-contamination.

E. Nozzles & Ports

The access points for the system. A typical reactor includes:

• Inlet/Outlet Ports: For reactant loading and product discharge.

• Manway: For manual inspection and maintenance access.

• Instrumentation Ports: For sensors (pH, temperature, pressure, ORP).

2. Comparison of Agitation Components

3. Critical Design Considerations

When assessing or designing these components, three factors take precedence:

1. Material Grade (The "L" Factor): Always prioritize 316L (Low Carbon) stainless steel for chemical service. The low carbon content prevents "sensitization" (carbide precipitation) during the welding process, which keeps the weld seams just as corrosion-resistant as the rest of the vessel.

2. ASME Section VIII Compliance: Every component—from the shell to the nozzle flanges—must be calculated and fabricated according to the ASME Boiler and Pressure Vessel Code. This is the standard for safety and insurance.

3. Cleanability (CIP/SIP): In pharmaceutical and food applications, the design must minimize "dead zones" (areas where fluid doesn't circulate). A well-designed reactor uses radiused internal corners and sanitary fittings to allow for effective Clean-in-Place (CIP) cycles.

Frequently Asked Questions (FAQ)

Q: Why are "baffles" considered a component of the reactor?

A: While simple tanks don't need them, reactors do. Baffles are vertical strips welded to the vessel's interior wall. They stop the liquid from swirling in a vortex (which is bad for mixing) and force it to move in a top-to-bottom pattern, drastically increasing the efficiency of the agitation system.

Q: Can I change the agitator type after the reactor is built?

A: To an extent, yes, provided the motor/gearbox can handle the torque requirements of the new impeller. However, it is always best to perform CFD (Computational Fluid Dynamics) modeling during the design phase to ensure the agitation system matches your specific chemical process.

Q: What is the purpose of the manway?

A: The manway is a critical maintenance component. It allows personnel to inspect the vessel interior for signs of corrosion or fouling, and facilitates cleaning or repair of internal components like the agitator or heating coils.
