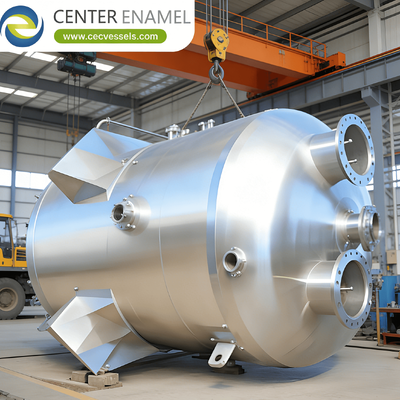

What is a Jacketed Stainless Steel Chemical Reactor?

A jacketed stainless steel chemical reactor is a specialized pressure vessel designed to facilitate chemical, physical, or biological reactions under precise temperature conditions. Unlike a standard storage tank, it features an outer "jacket"—a secondary shell—that allows heating or cooling media (such as steam, hot oil, or chilled water) to circulate around the inner vessel without coming into contact with the reaction medium itself.

This design is the backbone of modern industrial processing, ensuring that exothermic reactions are safely cooled and endothermic reactions are efficiently heated.

The reactor operates on the principle of thermal exchange across a metallic barrier. The inner vessel holds the reactants, while the space between the vessel wall and the outer jacket serves as a conduit for thermal fluid.

• Thermal Control Unit (TCU): An external unit controls the flow rate and temperature of the thermal medium, which enters the jacket through an inlet nozzle and exits through an outlet, continuously cycling to maintain the desired reaction temperature.

• Heat Transfer: Heat transfer occurs via conduction through the stainless steel wall and convection within the process fluid and thermal jacket.

• Agitation Integration: Because heat transfer efficiency relies on fluid movement, these reactors are almost always equipped with an agitator (e.g., turbine, anchor, or helical ribbon) to ensure the reactants are homogenized, preventing hot spots or cold zones.

The "jacket" design is customized based on the required pressure rating and heat transfer efficiency:

Stainless steel (most commonly 316L) is the preferred material for these reactors because it balances mechanical strength with chemical inertness.

• Corrosion Resistance: It resists a wide range of chemicals, preventing product contamination and ensuring structural longevity.

• Hygiene & Cleaning: Smooth, non-porous surfaces allow for Clean-in-Place (CIP), critical for pharmaceutical and food/beverage standards.

• ASME Compliance: High-quality stainless steel reactors are manufactured according to ASME Boiler and Pressure Vessel Code (BPVC), Section VIII, ensuring they can safely handle the pressures involved in industrial synthesis.

• Pharmaceuticals: Synthesis of Active Pharmaceutical Ingredients (APIs), crystallization, and fermentation.

• Chemical Manufacturing: Polymerization, hydrogenation, and esterification where precise temperature profiles are required for yield.

• Food & Beverage: Pasteurization, blending of additives, and extraction processes requiring sterile, hygienic conditions.

• Petrochemicals: Pilot-scale refining and catalyst testing.

Q: Can I see the reaction through a stainless steel reactor?

A: No, unlike glass reactors, stainless steel is opaque. If visual observation is required, engineers typically specify a sight glass or observation port in the top head of the reactor.

Q: What is the benefit of a jacketed vessel versus internal heating coils?

A: A jacketed design maintains a completely smooth interior wall, which is essential for easy cleaning and sterilization (CIP/SIP). Internal coils offer better heat transfer surface area but create "dead zones" where solids can settle, making them difficult to clean for highly regulated industries like pharma.

Q: Does stainless steel handle vacuum conditions?

A: Yes, but the vessel must be specifically rated for it during the design phase. A vessel designed for internal pressure may buckle (implode) under vacuum if the shell thickness isn't calculated to withstand external pressure.
