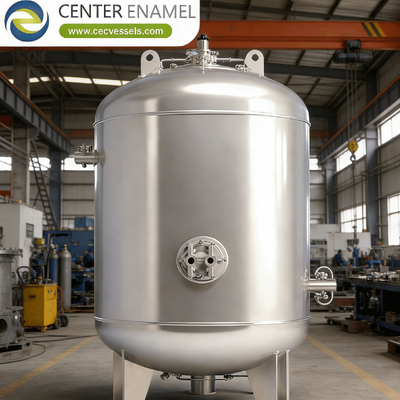

What Is a Stainless Steel Chemical Reactor?

A stainless steel chemical reactor is a specialized pressure vessel designed to house chemical, biological, or physical processes under controlled conditions of temperature, pressure, and agitation. Unlike standard storage tanks, reactors are engineered as dynamic process tools. They facilitate reactions—such as polymerization, hydrogenation, and fermentation—while ensuring product consistency and process safety.

Stainless steel is the industry-standard material for these vessels due to its superior thermal conductivity, mechanical robustness, and resistance to corrosion compared to materials like carbon steel or glass-lined alternatives.

A reactor is a system of subsystems. To understand what defines the vessel, you must look at its four functional pillars:

• The Shell: The primary body of the vessel. Custom reactors are typically engineered according to the ASME Boiler and Pressure Vessel Code (BPVC), Section VIII, ensuring wall thickness and weld integrity for pressurized service.
• The Jacket (Thermal Control): A secondary shell surrounding the main vessel. It circulates thermal fluids (steam, hot oil, or glycol).
  • Dimple Jackets provide efficient surface area for heat exchange.
  • Half-pipe coils are preferred for high-pressure thermal media.
• The Agitator: This is what makes a tank a "reactor." The shaft, motor, and impeller geometry are matched to the fluid's viscosity. Anchors, turbines, and helical ribbons are chosen based on whether the goal is heat transfer, solids suspension, or emulsification.
• Seal Systems: High-integrity mechanical seals are critical. They prevent the escape of volatile or hazardous reactants at the point where the agitator shaft enters the vessel.

Choosing the stainless steel grade is a balance between corrosion resistance, cost, and process purity.

When specifying a reactor for industrial use, design is governed by strict engineering standards to ensure safety:

• Pressure Containment: Vessels must be designed to withstand the Maximum Allowable Operating Pressure (MAOP). This calculation involves the shell thickness, head geometry (torispherical or elliptical), and nozzle reinforcement.
• Cleanability (CIP/SIP): In pharmaceutical applications, the reactor must be designed for Clean-in-Place (CIP). This involves designing the interior to be free of "dead zones" where materials can accumulate, using radiused corners and sanitary-grade surface finishes (Ra < 0.8 mu m).
• Thermal Fatigue: Because chemical reactors often undergo rapid heating and cooling cycles, the vessel must be designed to handle thermal expansion stresses without compromising the structural integrity of the welds.

Q: Why use a jacketed reactor instead of internal heating coils?

A: Jacketed reactors provide a smooth interior wall, which is essential for uniform agitation and easy cleaning. Internal coils are excellent for heat transfer but create "dead zones" where solids settle and material builds up, making them difficult to sterilize in pharma applications.

Q: Can stainless steel reactors handle vacuum conditions?

A: Yes, but the vessel must be specifically rated for "full vacuum." A vessel built only for internal pressure may buckle (implode) under vacuum. You must specify both positive pressure and vacuum ratings during the design phase so the wall thickness can be calculated correctly.

Q: What is the most common reason for reactor failure?

A: Aside from catastrophic pressure failure (which is rare if ASME codes are followed), the most common operational issues are seal failure (leaks at the agitator shaft) and corrosion (usually due to selecting the wrong stainless steel grade for the chemical media).

Q: How do I choose between an Anchor and a Turbine agitator?

A: Use a Turbine agitator for low-viscosity liquids where you need high-speed mixing and heat transfer. Use an Anchor agitator for high-viscosity fluids (like polymers or heavy creams) where you need to scrape the walls of the reactor to prevent buildup and ensure effective heat exchange.
