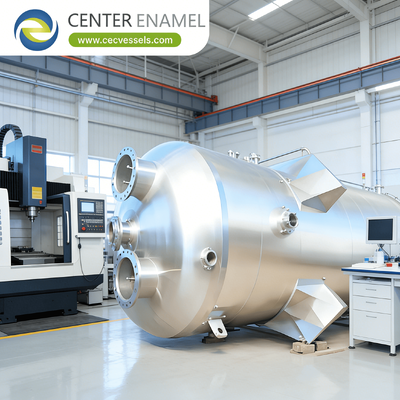

Custom Stainless Steel Reactors for Chemical Processing

Custom Stainless Steel Reactors for Chemical Processing

In chemical processing, one size rarely fits all. While standard off-the-shelf equipment exists, the complexity of modern chemical synthesis—ranging from fine chemicals and polymers to pharmaceuticals—frequently demands custom-engineered stainless steel reactors. A custom reactor is not just a container; it is a highly integrated process tool designed to optimize reaction kinetics, heat transfer, and throughput.

To achieve maximum performance and safety, engineers must align the vessel’s design with the specific thermodynamic and corrosive requirements of the process media.

1. The Anatomy of a Custom Reactor

A custom reactor is composed of four primary subsystems, each tailored to specific operational goals.

• The Vessel Body & Head: Typically cylindrical with dished or hemispherical ends to optimize stress distribution. Customization includes the number, size, and orientation of nozzles for feed streams, sensors, and sampling.

• Thermal Control System (The Jacket): The "engine" of temperature control. Options include:

  • Conventional Jackets: Best for low-to-medium thermal demands.

  • Dimple Jackets: Lightweight and highly efficient for uniform heat distribution.

  • Half-Pipe Coils: Ideal for high-pressure heating/cooling fluids.

• Agitation System: The agitator is selected based on viscosity and reaction type. Whether you need a high-shear turbine for emulsification, an anchor agitator for high-viscosity polymers, or a helical ribbon for gentle blending, custom reactors match the impeller geometry to the fluid flow regime.

• Shaft Sealing: Essential for containment. Mechanical seals are the industry standard for high-pressure and hazardous applications, preventing leakage and ensuring a clean process environment.

2. Material Selection: The Stainless Steel Advantage

While 304 and 316/316L stainless steel are the industry standards, custom fabrication allows for precise material engineering.

Note: For extremely aggressive reactions (e.g., concentrated HCl), the reactor may require specialized linings or coatings (PTFE/glass-lining) inside a stainless steel structure to maintain strength while ensuring chemical inertness.

3. Engineering to ASME Standards

Safety and compliance are non-negotiable in chemical processing. Custom reactors are almost universally built to ASME Boiler and Pressure Vessel Code (BPVC), Section VIII, Division 1.

• ASME Certification: Provides a verified design baseline (wall thickness, weld documentation, nozzle reinforcement).

• Traceability: All materials (stainless steel plates, gaskets, fittings) must have mill test reports (MTRs) to trace their origin and quality.

• Testing: Every custom vessel undergoes Non-Destructive Testing (NDT), including X-ray of welds and hydrostatic pressure testing, to ensure it acts as a reliable pressure-containing barrier under extreme conditions.

4. Key Considerations for Customization

When working with an engineering firm to design your reactor, prioritize these process factors:

1. Heat Transfer Efficiency: Are you handling highly exothermic reactions? Ensure the cooling jacket surface area is calculated for the maximum heat of reaction, not just the steady state.

2. Solids Handling: If your process involves slurries or catalysts, ensure the bottom discharge is designed to prevent "dead zones" where solids can settle and clog.

3. Automation Readiness: Design for "Industry 4.0" integration by including ports for real-time monitoring of pH, oxidation-reduction potential (ORP), and inline viscosity sensors to feed your PLC/DCS systems.

Frequently Asked Questions (FAQ)

Q: What is the benefit of a "custom" reactor over a standard unit?

A: Standard reactors are designed for "general" utility. A custom reactor is engineered for your specific heat-transfer requirements, agitator geometry, and nozzle placement, which directly translates to higher batch yields, shorter cycle times, and easier integration into your existing plant layout.

Q: Can a stainless steel reactor handle vacuum conditions?

A: Yes. However, a vessel designed for positive pressure is not automatically rated for "full vacuum." If your process involves vacuum distillation or stripping, the reactor must be specially designed to prevent wall collapse (buckling), which requires specific shell thickness calculations.

Q: How do I manage foaming in my custom reactor?

A: If foaming is a known issue, your custom design should include extra "headspace" (typically 20–30% of total volume) and potentially an internal foam-breaker or chemical antifoam injection port near the vapor space to manage gas disengagement.
