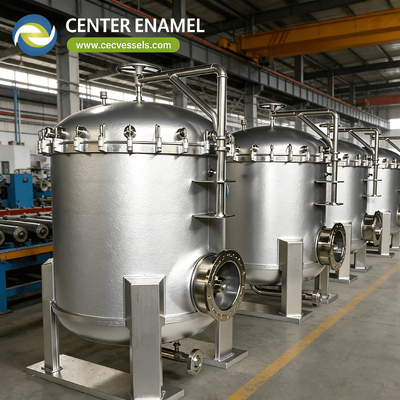

What Is a Jacketed Stainless Steel Reactor?

A jacketed stainless steel reactor is a specialized pressure vessel designed for processes that require precise temperature control. It consists of a primary internal vessel where chemical or biological reactions occur, surrounded by an outer "jacket" that serves as a heat-transfer chamber.

By circulating heating or cooling media—such as steam, water, glycol, or thermal oil—through this jacket, the reactor can precisely regulate the internal environment, making it indispensable for exothermic and endothermic reactions in industries ranging from pharmaceuticals to petrochemicals.

1. How It Works: Thermal Control

The jacketed design acts as a heat exchanger. The thermal fluid circulates around the outer wall of the inner vessel, transferring heat to or from the reaction media via conduction through the stainless steel wall and convection within the jacket.

• Precise Management: Modern systems are typically connected to a Temperature Control Unit (TCU), which uses PID controllers to maintain set points, preventing "hot spots" or "cold spots" that could compromise product quality or safety.

• Energy Efficiency: Double-jacketed (vacuum-insulated) designs are used when extreme temperatures are required, as the vacuum layer minimizes heat loss to the ambient environment.

2. Types of Reactor Jackets

The choice of jacket design is driven by the required heat-transfer rate and the operating pressure of the thermal fluid.

3. Key Design Considerations

Designing a jacketed reactor requires balancing structural integrity with thermodynamic performance, typically adhering to ASME Boiler and Pressure Vessel Code (BPVC) standards.

• Material Selection: Grade 316L stainless steel is the industry standard due to its excellent corrosion resistance and ability to withstand high temperatures/pressures.

• Flow Distribution: To avoid non-uniform heating, designers use internal baffles or spiral channels within the jacket to force turbulent flow, which maximizes the heat-transfer coefficient.

• Safety Features: Pressure relief valves, bursting discs, and automated thermal sensors are mandatory to prevent over-pressurization during runaway exothermic reactions.

• Agitation Integration: The mixing system (impellers/turbines) must be balanced with the jacket’s thermal output to ensure that the material at the vessel wall is effectively moved into the center of the tank, ensuring consistent temperature distribution.

Frequently Asked Questions (FAQ)

Q: Why use a jacket instead of internal heating coils?

A: Jackets are generally easier to clean and sterilize (CIP/SIP) because they do not obstruct the interior of the vessel. Internal coils, while excellent for heat transfer, can create "dead zones" where material builds up, making them difficult to sanitize in pharmaceutical or biotech applications.

Q: Can I use the same jacket for both heating and cooling?

A: Yes. Many systems are designed to switch between heating (steam or hot oil) and cooling (chilled water or glycol). However, the system must be engineered to handle the thermal shock of switching fluids, and the TCU must be capable of purging the jacket effectively to prevent cross-contamination of the thermal fluids.

Q: What is the benefit of a "Multi-Zone" jacket?

A: Large-scale reactors often use multi-zone jackets where the vessel is divided into independent sections (e.g., bottom, middle, and top). This allows for independent temperature control, which is vital when processing low-volume batches where the jacket might otherwise be heating empty headspace.

Q: How does material grade (304 vs 316L) impact the jacketed design?

A: While 304 is suitable for general food processing, 316L (Low Carbon) is required for most chemical and pharmaceutical applications. Its molybdenum content prevents localized pitting corrosion, and the low carbon content prevents weld decay (sensitization), ensuring the reactor maintains its integrity over long service cycles involving thermal cycling.
