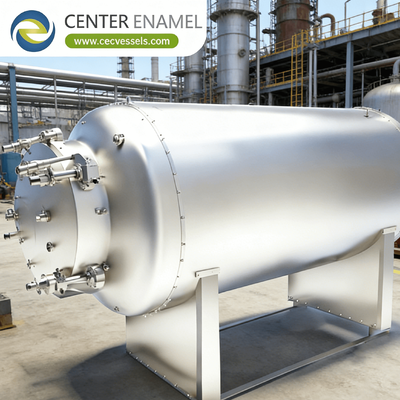

In upstream oil and gas production, the "wellstream"—the raw fluid mixture extracted from the reservoir—is a complex, turbulent blend of crude oil, natural gas, formation water, and solid contaminants. The primary objective of the separator is to divide this stream into distinct phases to facilitate metering, transportation, and further refinement.
The decision between a two-phase separator and a three-phase separator is driven primarily by wellstream composition, environmental requirements, and downstream processing capabilities.
The two-phase separator is the simplest configuration in production engineering. It is designed to split the wellstream into two distinct streams: Gas and Total Liquid (oil and water combined).
-
Function: As the wellstream enters the vessel, velocity is reduced via an inlet diverter. Gravity settling allows the lighter gas to rise to the top and exit, while the liquid phase collects at the base.
-
Best Application:
-
Gas-dominant wells with minimal liquid production.
-
Operations where oil-water separation is handled downstream by centralized processing facilities.
-
Cost-sensitive, space-constrained, or simple wellsite monitoring operations.
-
The three-phase separator is a more complex vessel designed to partition the wellstream into three distinct components: Gas, Oil, and Water.
-
Function: Beyond gas-liquid separation, these vessels are engineered with internal weirs, baffles, and interface level controllers. Because oil and water have different densities, the water settles to the bottom, the oil forms a middle layer, and gas occupies the top space. Each phase is then discharged through dedicated outlets.
-
Best Application:
-
High water-cut wells where onsite water removal is necessary.
-
Facilities requiring accurate, separate measurement of oil, water, and gas production.
-
Sites where downstream equipment is sensitive to water contamination or where environmental regulations mandate water treatment at the source.
-
| Feature | Two-Phase Separator | Three-Phase Separator |
|---|---|---|
| Output Phases | Gas + Total Liquid (Oil/Water) | Gas + Oil + Water |
| Complexity | Low | High |
| Internal Components | Basic (Inlet/Mist Extractor) | Advanced (Weirs, Baffles, Interface Controllers) |
| Footprint/Cost | Generally smaller/cheaper | Generally larger/more expensive |
| Primary Use Case | Gas-heavy wells or pre-separation | High water-cut or refined separation needs |
Q: Can a two-phase separator be upgraded to a three-phase unit?
A: In many cases, yes. Depending on the vessel's internal diameter and length, it is often possible to retrofit a two-phase vessel with weir plates, interface controllers, and additional discharge nozzles to convert it into a three-phase separator. However, this depends on the original design capacity and retention time requirements.
Q: Which orientation is better: Vertical or Horizontal?
A: It depends on your gas-to-oil ratio (GOR). Horizontal separators provide more surface area and residence time, making them superior for high-volume, high-GOR applications. Vertical separators are preferred for low GOR wells or where footprint is limited, as they handle solids accumulation better.
Q: What is a "Free Water Knockout" (FWKO)?
A: An FWKO is a specific type of three-phase separator used primarily to remove the bulk of produced water from oil before it enters storage tanks or secondary processing. It is the first line of defense in water management.
Q: Does digital/IoT integration change separator operations?
A: Yes. In 2026-era operations, advanced level sensors and real-time interface monitoring are replacing manual gauges. These systems feed data into predictive maintenance models to optimize dump valve cycles, reducing the risk of "carry-over" (where liquids enter gas lines) or "carry-under" (where gas escapes via liquid lines).
