Industrial Chemical Tower Reactors: Design Principles, Internal Hydraulics, and Performance Optimization
| MOQ: | 1 Sets |
| Price: | 10000 USD |
| Delivery Period: | 2 months |
| Payment Method: | L/C,T/T |
| Supply Capacity: | 200 sets / days |

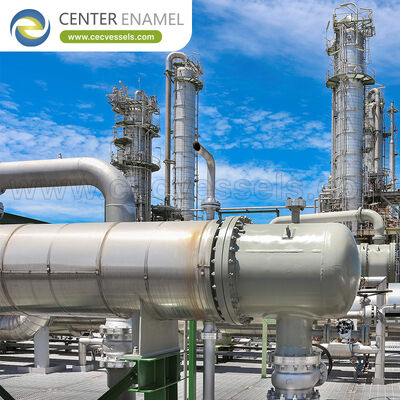

Industrial chemical tower reactors
,Tower reactor design principles
,Tower reactor performance optimization
In heavy chemical processing, maximizing the contact efficiency between immiscible or distinct fluid phases is one of the most critical engineering challenges. The chemical tower reactor—frequently referred to as a vertical column reactor—is the industry-standard solution for continuous mass transfer and multi-phase chemical synthesis.
By leveraging a high aspect ratio (height-to-diameter proportion), these towering vessels utilize gravity and fluid dynamics to achieve high conversion yields within a highly optimized physical plant footprint.
A chemical tower reactor functions by continuously moving reactants through distinct internal zones to maximize phase contact. As illustrated in the structural layout above, process configurations typically feature a counter-current flow regime:
-
Gas-Phase Propulsion: Gas enters through a bottom nozzle (labeled as Contaminated Gas In for scrubbing/stripping applications) and naturally rises up the column due to pressure drops or buoyancy gradients.
-
Liquid-Phase Distribution: Liquid reactants enter near the upper head (Scrubbing Liquid In) and pass through a specialized liquid distributor equipped with spray nozzles to ensure a perfectly uniform radial spread across the internal cross-sectional area.
-
The Packed Bed Zone: The heart of the vessel is the packed bed, filled with high-surface-area random or structured packing materials. Here, the liquid forms a thin, continuous film over the packing, dramatically lowering mass-transfer resistance as it comes into intimate contact with the rising gas phase.
-
Entrainment Separation: Before leaving the overhead nozzle (Clean Gas Out), the treated gas stream passes through a structured mist eliminator to knock out any entrained liquid droplets, protecting downstream compressors and heat exchangers from corrosion and liquid slugging.
Sizing the cross-sectional area of a chemical tower reactor requires calculating the exact hydraulic balance where gas drag does not impede the gravity-driven descent of the liquid film. The Superficial Gas Velocity (ug) must be calculated relative to the total volumetric gas flow rate (Qg) and the column's internal cross-sectional area
Where D represents the internal diameter of the tower shell. To determine the necessary volume of the active catalyst or packing zone to ensure adequate reaction completion, engineers calculate the process residence time (tau), which represents the average duration a reactant spends inside the active zone:
Where is the physical volume of the packing bed and epsilon represents the internal void fraction (the percentage of open, empty space within the packed matrix available for fluid flow).
Depending on the kinetics of the chemical reaction and fluid fouling tendencies, the interior configuration of the column shell varies significantly:
| Internal Type | Mass Transfer Mechanism | Relative Pressure Drop (ΔP) | Resistance to Fouling/Coking | Primary Application |
|---|---|---|---|---|
| Structured Packing | Continuous thin-film liquid profile over corrugated sheet metal. | Extremely Low | Poor (Prone to channel plugging) | Vacuum distillation, gas-stripping systems |
| Random Packing | Liquid film over loose dumped media (e.g., Pall rings, ceramic saddles). | Low | Moderate | Acid gas absorption, scrubbing units |
| Sieve Trays | Discrete gas bubbling through a static liquid froth cross-flow. | Moderate to High | Good | High-pressure fractionation columns |
| Bubble Cap Trays | Gas routed through risers capped to force immersion in liquid. | High | Excellent | Low liquid-rate, high-turnaround reactors |
Because chemical tower reactors are tall, thin vertical elements exposed to both high internal operating temperatures and external environmental hazards, their structural engineering demands robust materials selection:
-
Wind and Seismic Shear Mitigation: Due to their high vertical profile, column bases must be engineered with heavy structural support skirts fabricated from high-strength structural carbon steels (such as ASME SA-516 Grade 70) which are then securely anchored to deep concrete foundations to handle high overturning moments.
-
Process-Face Metallurgy: To isolate the reactor shell from highly corrosive process streams, internal chemical-contact faces are typically constructed from solid high-alloys or engineered with protective clad layers. Stainless Steel 316L (SS316L) is widely specified for general organic acid and amine handling, while premium nickel alloys like Hastelloy C-276 are selected for systems containing aggressive halogens or hot mineral acids.
-
Fluoropolymer Liners: For ambient to moderate-temperature processes dealing with extreme mineral acids (such as hydrochloric or hydrofluoric acid) where metals fail, solid steel columns lined with thermo-bonded PTFE (Polytetrafluoroethylene) or PVDF (Polyvinylidene Fluoride) provide an absolute chemical barrier.
Are you specifying a column shell for a high-temperature catalytic reaction, or do you need to calculate the precise packing height needed to achieve a target mass-transfer coefficient (kL a)?
