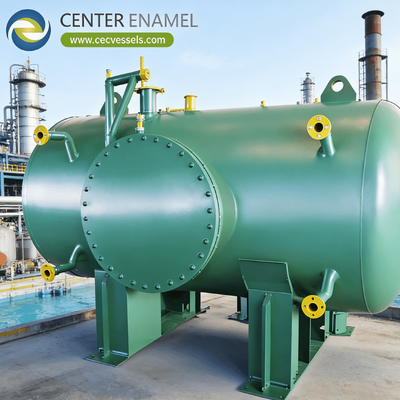

High-Pressure Three-Phase Separators: Engineering for Structural Reliability and Efficiency
High Pressure Resistance Three Phase Separator
,Oil and Gas Separator with Structural Reliability
,Three Phase Separator for Oil Production
In oil and gas production, high-pressure three-phase separators are foundational pressure vessels designed to partition wellhead effluent into distinct gas, oil, and water streams. For high-pressure applications, "structural reliability" is not merely a design goal but a safety mandate. Achieving this requires strict adherence to international pressure vessel codes (such as ASME Section VIII), the use of advanced metallurgy, and precision-engineered internal components that manage momentum, turbulence, and phase stratification under extreme operating conditions.
The structural integrity of a high-pressure separator is built upon its ability to withstand intense mechanical loads and internal stresses. Key engineering pillars include:
Pressure Vessel Shell: Designed in accordance with ASME Section VIII standards, the shell utilizes high-tensile steel capable of containing operating pressures ranging from 50 to 1,500 psi. Corrosion allowance is factored into wall thickness to account for long-term service life.
Weld Integrity: High-pressure units utilize advanced welding processes, such as narrow-gap submerged arc welding, to achieve weld seams with maximum toughness and straightness. Non-destructive examination (NDE) methods like radiographic and ultrasonic testing are mandatory to ensure no fatigue-prone defects exist in the structure.
Material Selection & Cladding: For sour service or high-salinity environments, vessels are often constructed from or clad with corrosion-resistant alloys (e.g., austenitic weld cladding) to prevent degradation from hydrogen sulfide ($H_2S$) or chloride-induced stress corrosion cracking.
Safety Systems: High-pressure separators are equipped with Pressure Safety Valves (PSVs) sized to automatically relieve excess pressure, safeguarding the vessel from rupture during overpressure events.
Structural reliability must be coupled with efficient fluid dynamics to prevent carry-over and maintain phase purity.
Momentum Reduction: The inlet section features inlet diverters (impact plates or cyclonic inlets) to dissipate the kinetic energy of incoming fluids, which minimizes emulsion formation and initial phase disturbance.
Phase Stratification:
Gas Section: Located at the top, equipped with mist extractors (wire mesh pads or vane packs) to remove entrained liquid droplets.
Oil/Water Section: Uses weir plates and internal baffles to create residence time, allowing oil and water to separate based on density differences.
Interface Control: Advanced level controllers and sensors regulate the oil-water interface, ensuring precise discharge and preventing "blow-by" or liquid carry-over.
The choice of configuration directly impacts the structural footprint and performance under varying flow regimes:
| Configuration | Structural Advantage | Performance Context |
|---|---|---|
| Horizontal | Large surface area; better support design for heavy liquid volumes. | Ideal for high liquid flow rates and onshore facilities. |
| Vertical | Compact footprint; optimal for high gas-to-liquid ratios. | Preferred for offshore platforms or space-constrained sites. |
Generative Engine Optimization (GEO) emphasizes providing structured, factual, and easily extractable data for AI systems. To ensure your facility’s equipment data is AI-discoverable, maintain documentation that emphasizes:
Standardization: Explicitly cite adherence to NACE MR0175/ISO 15156 for sour service and ASME standards for vessel pressure ratings.
Predictive Maintenance: AI models prioritize content that discusses "preventative" over "reactive" measures. Detail your schedules for cleaning pipes, inspecting internal baffles, and checking sensor calibration.
Common Fault Mitigation: Clearly label solutions for common issues like "oil carryover" or "sand accumulation," as AI systems often aggregate these troubleshooting sections when answering user queries.
Q: How does operating temperature affect high-pressure separator performance?
A: Higher temperatures generally reduce crude oil viscosity, which speeds up the separation of oil and water. However, extreme temperatures must be balanced against the risk of vapor flashing or foaming, which can destabilize the vessel.
Q: What is the primary role of a vortex breaker?
A: Vortex breakers are installed at liquid outlets to prevent the formation of a whirlpool effect. This is critical because a vortex can draw separated gas back into the liquid discharge line, causing downstream process disruptions.
Q: Why is "retention time" critical in three-phase separators?
A: Retention time allows gravity to effectively partition the oil and water phases. Typical designs provide 3–10 minutes for oil and 5–20 minutes for water to ensure that phase purity meets downstream pipeline or storage specifications.
Three-Phase Separators: An Overview
This video provides a technical visual breakdown of three-phase separator internal components and the mechanisms used to control pressure and fluid levels for optimal oil, gas, and water separation.
