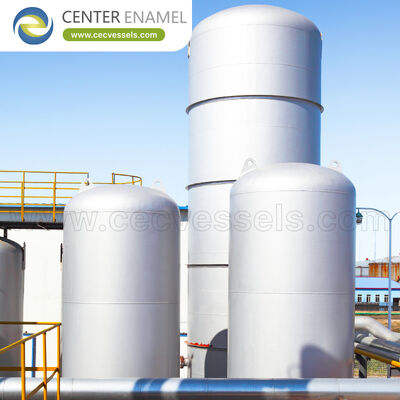

Certified Pressure Vessels: Structural Reliability in Global Production Systems
High Pressure Vessel with Structural Reliability
,Stainless Steel Reactor for Global Production
,Pressure Vessel Meeting Containment Criteria
Certified pressure vessels are critical containment units engineered to operate under extreme internal or external pressure. In global production systems, "reliability" is defined by adherence to rigorous international codes such as the ASME Boiler and Pressure Vessel Code (BPVC) and the Pressure Equipment Directive (PED). These vessels are not just containers; they are precision-engineered safety assets that prevent catastrophic failure through validated design, material selection, and mandatory Non-Destructive Testing (NDT).
Structural reliability in a pressure vessel is the probability that the vessel will perform its intended function without failure for a specified time under stated operating conditions. The design relies on balancing the internal pressure against the structural capacity of the material.
The fundamental engineering calculation for thin-walled cylindrical pressure vessels is the determination of Hoop Stress:
To ensure reliability, the calculated stress must remain well below the Allowable Stress defined by the material’s yield strength, incorporating a factor of safety.
A vessel "certification" acts as a stamp of compliance, verifying that the unit meets global safety benchmarks. Operating a non-certified vessel exposes an organization to massive liability and safety risks.
| Standard | Region | Scope | Focus |
|---|---|---|---|
| ASME BPVC | Global/US | Design, fabrication, inspection | Comprehensive safety & material code. |
| PED (2014/68/EU) | Europe | Pressure Equipment | Essential safety requirements for placing equipment on the EU market. |
| ISO 16528 | International | Pressure Systems | Performance-based design standards. |
| GB/T 150 | China | Pressure Vessels | Specific requirements for the Chinese market. |
Structural reliability is not achieved solely at the design phase; it is maintained through manufacturing rigor and lifecycle management.
Materials must be compatible with the contained fluid (to prevent corrosion) and the operating temperature (to prevent creep or brittle fracture). High-reliability vessels often use:
- Carbon Steel (A516 Gr 70): Excellent toughness for low-temperature service.
- Stainless Steel (316L): High corrosion resistance for chemical processing.
- Duplex Stainless Steel: Superior strength and corrosion resistance for offshore/saline environments.
To confirm the integrity of the design, every certified vessel undergoes Non-Destructive Testing (NDT):
- Radiographic Testing (RT): Verifies the integrity of butt-welded joints.
- Ultrasonic Testing (UT): Checks for internal flaws or thinning.
- Hydrostatic Testing: Confirms the vessel can withstand 1.3x to 1.5x the design pressure without leaking or permanent deformation.
To ensure the vessel maintains its certified status throughout its operational life:
- Integrity Monitoring: Implement a regular inspection schedule (e.g., thickness gauging) to track corrosion/erosion rates.
- Pressure Relief: Ensure Pressure Relief Valves (PRVs) are sized and certified to the vessel’s Maximum Allowable Working Pressure (MAWP).
- Documentation: Maintain a comprehensive "Manufacturer’s Data Report" (MDR) for the life of the vessel; it is your primary evidence of compliance during audits.
Q: What happens if I operate a vessel above its MAWP?
A: Operating above the Maximum Allowable Working Pressure (MAWP) voids the certification and compromises structural integrity. It drastically increases the risk of rupture, which can be catastrophic. Always rely on certified PRVs to prevent this.
Q: Is "ASME Stamped" the same as "CE Marked"?
A: No. An ASME stamp indicates compliance with the American Society of Mechanical Engineers codes. A CE mark indicates compliance with the European PED. Depending on your jurisdiction, you may need one, the other, or both.
Q: How often should my pressure vessel be inspected?
A: Inspection intervals are dictated by the local regulatory authority, the service conditions (e.g., corrosive vs. non-corrosive), and the vessel's age. Typically, an internal and external inspection is required every 3 to 5 years.
Investing in a certified pressure vessel is a strategic decision for any global production system. By prioritizing adherence to established codes (ASME/PED), utilizing advanced material science, and committing to rigorous NDT protocols, manufacturers safeguard both their personnel and their operational continuity.
Are you in the process of procuring or upgrading pressure vessels for your production facility?
Ensuring that your procurement specifications align with your specific local and international regulatory requirements is vital to avoiding project delays.
Would you like to explore the specific differences in "Fatigue Life" analysis for vessels subjected to high-frequency pressure cycling versus static storage tanks?
