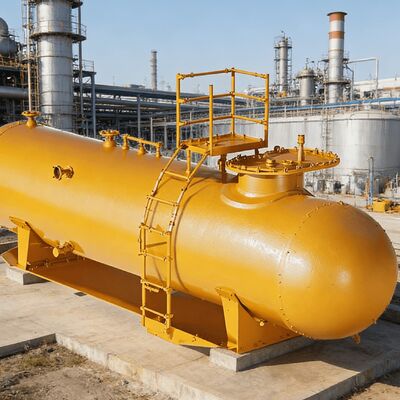

Advanced Structural Reliability Surge Pressure Vessels: Engineering for Stability

Surge pressure vessels are critical assets used to suppress hydraulic shock (water hammer) and stabilize process pressure in liquid pipelines and refinery systems. Advanced structural reliability is achieved through rigorous adherence to ASME Section VIII (Div 1 & 2), utilizing high-grade materials like low-alloy steels or stainless steel cladding to mitigate corrosion and fatigue. Modern vessels integrate automated level and pressure monitoring, transitioning from static storage tanks to intelligent, self-regulating stabilizers that prevent catastrophic pipe bursts and equipment failure.

A surge vessel fails when it cannot handle the cyclic fatigue induced by pressure transients (the "surge"). Engineering for structural reliability requires a move beyond basic sizing to comprehensive Design-by-Analysis (FEA).

The shell thickness is governed by the ability to withstand the hoop stress ($sigma_theta$) generated by internal pressure cycles. Ensuring longevity involves calculating wall thickness ($t$) to manage internal pressure ($P$) and diameter ($D$):

Where $eta$ represents the joint efficiency factor.

• ASME Section VIII, Div 2: Used for high-pressure/high-cycle applications. It allows for more refined design-by-analysis, resulting in vessels that are optimized for fatigue resistance rather than just bulk material volume.

• Fatigue Monitoring: Advanced vessels include monitoring ports for real-time stress assessment, allowing engineers to track the vessel’s lifecycle in high-transient environments.

Material selection is the primary defense against the two biggest threats to surge vessels: Corrosion and Fatigue.

• Carbon Steel (High-Yield): For non-corrosive service, normalized carbon steels provide excellent toughness.

• Corrosion-Resistant Alloys (CRA): In oil and gas or desalination applications, vessels are constructed using 316L/904L stainless steel cladding or solid exotic alloys (Duplex/Super Duplex). This prevents the pitting and intergranular corrosion that can act as a "stress riser," potentially leading to vessel rupture.

• Weld Integrity: High-grade vessels mandate 100% Non-Destructive Examination (NDE) of all circumferential and longitudinal seams, typically using Ultrasonic (UT) or Radiographic (RT) testing to guarantee weld soundness.

Static surge vessels are reactive; modern surge vessels are proactive. Integrating automated systems ensures that the air-water interface (which provides the cushion for pressure surges) is always maintained at optimal levels.

• Automated Level Control: Ultrasonic or radar-level transmitters monitor the interface in real-time. If the cushion gas dissolves into the liquid (common in high-pressure lines), the PLC triggers an automatic recharge compressor to restore the necessary buffer volume.

• Dynamic Pressure Monitoring: Sensors linked to a Distributed Control System (DCS) provide instantaneous feedback on pressure oscillation magnitude, allowing operators to adjust upstream pumps or downstream valves to preemptively dampen surges.

• Emergency Isolation: Automated fast-acting valves ensure the vessel can be isolated if a breach occurs, protecting the surrounding facility.

Q: Why is ASME Section VIII Div 2 better for surge vessels?

A: Division 2 requires a more rigorous analysis of local stresses and fatigue. In surge applications, where pressure changes rapidly (water hammer), the vessel shell is under constant cyclic loading. Div 2 ensures the design specifically accounts for these stress cycles, preventing fatigue cracks.

Q: How do you maintain the "gas cushion" in a high-pressure surge vessel?

A: Over time, the gas cushion (air or nitrogen) may dissolve into the liquid. Advanced vessels utilize automated gas injection systems controlled by PLCs that detect low gas levels and automatically recharge the cushion to maintain the required dampening effect.

Q: What are the risks of using standard carbon steel in high-pressure water systems?

A: Standard carbon steel is prone to "tuberculation" and pitting, especially if the water chemistry is aggressive. These pits act as stress concentrators, which can lead to stress corrosion cracking under high-pressure cyclic loading. Using clad or stainless materials eliminates this risk.

For pipelines and petrochemical processes, the surge vessel is the ultimate insurance policy against catastrophic hydraulic failure. By specifying high-grade materials and incorporating automated control logic, engineers can transform these vessels into reliable, intelligent stabilizers that protect downstream assets and optimize process uptime.
