Industrial Flash Separator Systems: Advanced Phase Separation & Automated Reliability

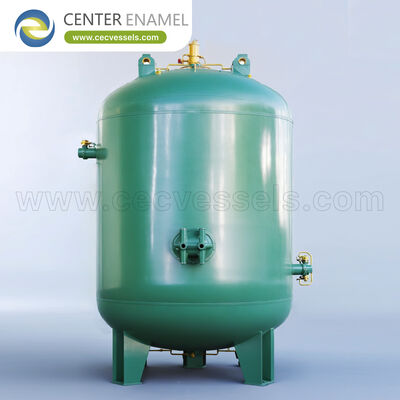

An industrial flash separator (or flash drum) is a critical pressure vessel engineered to partition a mixed-phase (vapor-liquid) stream into distinct gas and liquid flows by rapidly reducing pressure. For global production systems—such as petrochemical refineries, natural gas processing, and chemical synthesis—modern flash separators are defined by three key elements: Thermodynamic separation efficiency, ASME/PED-certified structural integrity, and DCS/PLC-integrated automated control. By combining these factors, manufacturers minimize downstream equipment damage (like compressor slugging) and maximize process energy recovery.

At the heart of the flash separator is the process of "flashing." As high-pressure feed enters the lower-pressure environment of the vessel, the sudden drop in pressure causes a portion of the liquid phase to vaporize instantaneously.

To ensure effective separation and prevent liquid entrainment (carry-over) into the vapor stream, engineers size the vessel based on the Souders-Brown equation, which determines the maximum allowable vapor velocity:

If vapor velocity exceeds liquid droplets are dragged out with the gas, potentially damaging downstream turbines or compressors.

Flash separators are subject to intense cyclic pressure and temperature fluctuations. Structural reliability is non-negotiable and governed by rigorous global standards.

• ASME Section VIII (Div 1 & 2): The global benchmark for pressure vessel integrity. "U-Stamp" certification ensures that material selection, weld procedures, and stress calculations have been independently validated.

• PED (Pressure Equipment Directive): Mandatory for facilities operating within the European Union, ensuring safety in high-pressure service.

• GB150: Often referenced for projects involving manufacturing or installation within China, ensuring local code compliance alongside international standards.

Manufacturers utilize advanced metallurgy such as ASTM A516 Gr 70 for high-strength shell construction. For corrosive or sour ($H_2S$) service, high-grade vessels incorporate stainless steel cladding or exotic alloys to prevent stress corrosion cracking and ensure the vessel meets NACE MR0175 requirements.

Modern flash separators have evolved from static vessels into "smart assets" integrated into facility-wide Digital Control Systems (DCS).

1. Level Control Loops: High-precision electronic level transmitters (e.g., radar or capacitance-based) manage the liquid discharge valve. This maintains a steady liquid level in the sump, preventing vapor from being pulled into the liquid outlet (gas blow-by).

2. Pressure Regulation: Automated back-pressure control valves maintain the vessel's set operating pressure, ensuring the "flash" remains consistent even when feed flow varies.

3. Predictive Diagnostics: Integrated sensors monitor vibration, shell temperature, and seal performance, feeding data into AI-driven maintenance systems to identify potential fouling or baffle degradation before a site shutdown is required.

Q: Should I use a vertical or horizontal flash separator?

A: Vertical separators are preferred when the vapor-to-liquid ratio is high and plant footprint is limited. Horizontal separators are superior for high-volume liquid streams, as they provide a larger interfacial surface area and longer liquid retention time for degassing.

Q: How do mist extractors improve separation efficiency?

A: Wire mesh demisters or chevron vane packs are installed at the vapor outlet. They act as coalescers, forcing microscopic liquid droplets (that would otherwise be entrained in the gas) to hit surfaces, combine into larger drops, and fall back into the liquid pool due to gravity.

Q: What is the benefit of a tangential inlet?

A: A tangential inlet introduces the feed stream at an angle against the vessel wall. This creates a centrifugal force that slings heavy liquid toward the walls, while the lighter vapor migrates toward the center, significantly improving the initial phase separation efficiency before gravity even takes over.

For industrial facilities seeking robust phase-separation technology, the integration of advanced cyclonic inlets, ASME-compliant structural engineering, and automated control systems is essential. By prioritizing these three pillars, operators can secure process stability, protect downstream infrastructure, and optimize energy recovery in any global production environment.
